GRASS BAG 1235M-1435E

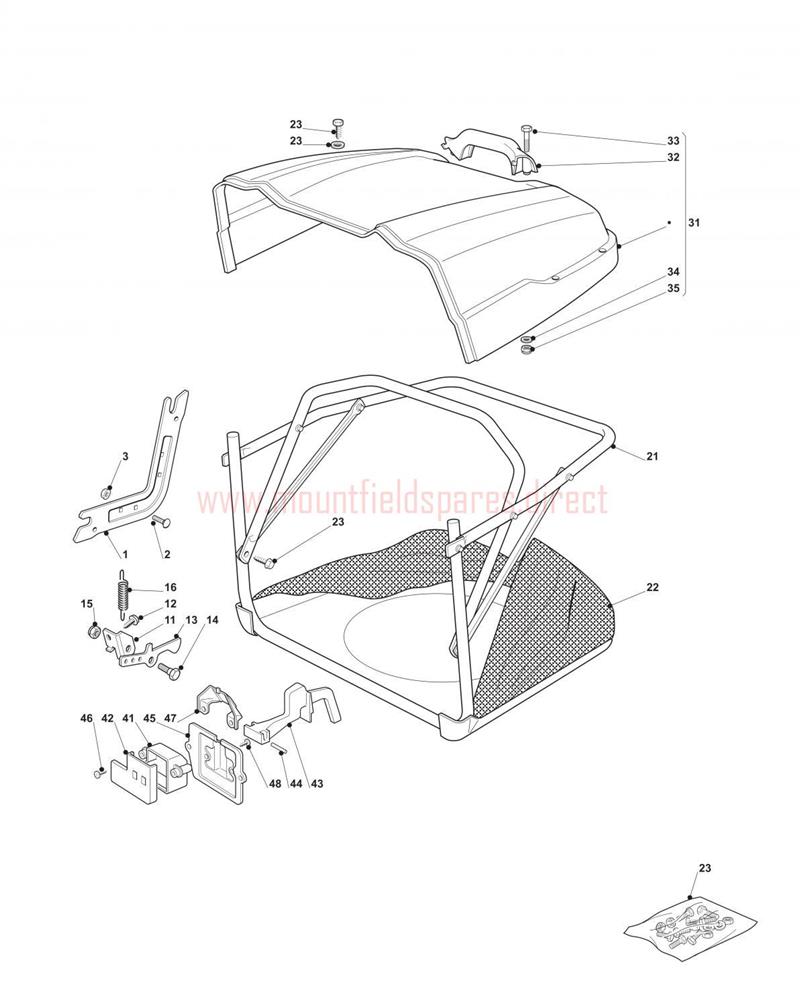

GRASS BAG 1235M-1435E assembly details for Mountfield 1235M_1435H_1436H_14H36H_1636M_1636H (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325785277/0GRASSCATCHER FULCRUM SUPPORT£20.72 Add to
0029897-0820-16SCREW M8 x 20£2.32 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
012112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
013325774315/1GRASSCATCHER LOWER HOOKING CLAMP£4.37 Add to
014125510080/1CLAMP PIN£2.14 Add to
015112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
016122450432/0TENSION SPRING£2.06 Add to
021382800110/0GRASSCATCHER FRAME ASSEMBLY NJ92 LE£177.43 Add to
022182105974/0GRASSCATCHER BAG 36"/92cm£131.12 Add to
023382180047/0GRASSCATC SCREW EQUIPMENT ASSY£11.18 Add to
031382180047/0GRASSCATC SCREW EQUIPMENT ASSY£11.18 Add to
032127394000/0GRASSCATCHER HANDLE£3.72 Add to
033112789020/0HEX-HEAD SCREW M5 x 25£2.06 Add to
034112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
035112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
041125600041/0MICRO PROTECTION COVER£2.32 Add to
042125600042/0MICRO PROTECTION COVER£3.41 Add to
043125318124/0MICRO CONTROL LEVER£2.32 Add to
044112400030/0PIN D=3 L=30£1.91 Add to
045325785272/1MICRO SWITCH COVER£2.47 Add to
046112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
047125600048/0MICRO SWITCH COVER£2.06 Add to
048112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
