TRANSMISSION (1) Manual

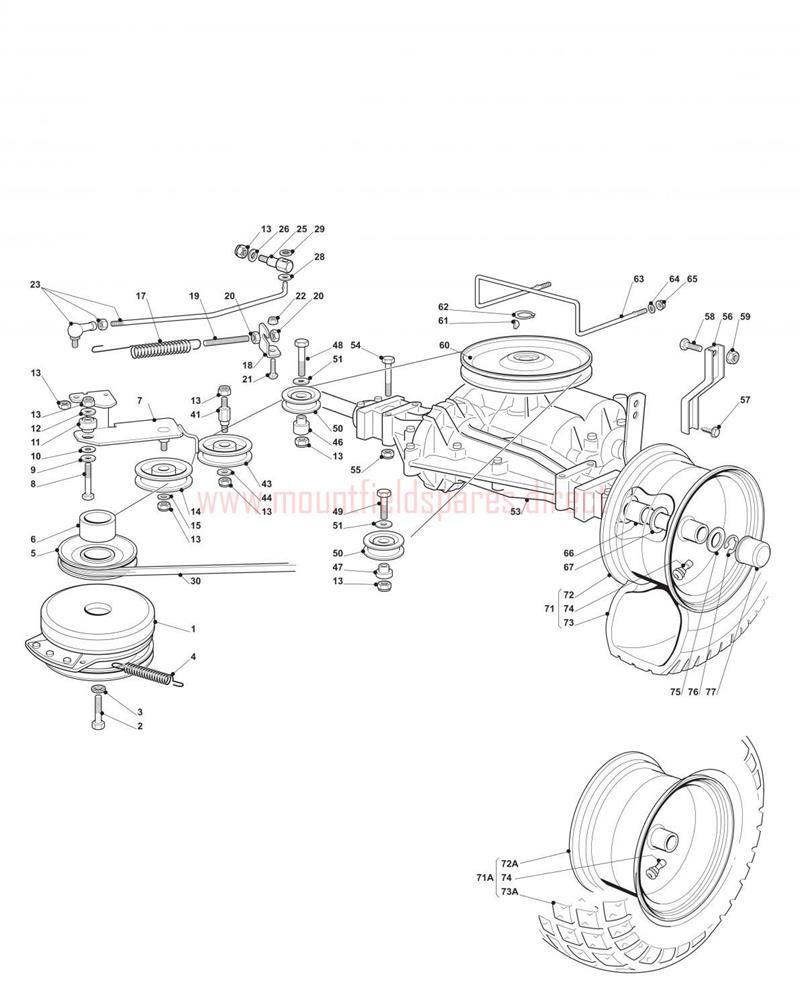

TRANSMISSION (1) Manual assembly details for Mountfield 1235M_1435H_1436H_14H36H_1636M_1636H (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118399063/1ELECTROMAGNETIC CLUTCH I-5217-45 (NO RETURNS ON TH£342.22 Add to
002112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
004122430216/0TENSION SPRING£10.09 Add to
005125601567/0MOTOR PULLEY£31.63 Add to
006125160059/0PULLEY SPACER L=25.8£6.69 Add to
007382318217/1PULLEY LEVER£24.95 Add to
008112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
009112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
010327670055/0ANTI-FRICTION WASHER£2.06 Add to
011125510087/0FULCRUM PIN£5.46 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014125601554/0PULLEY£26.18 Add to
017125430260/0SPRING£9.16 Add to
018325755049/0SUPPORT BRACKET£3.55 Add to
019125840005/0TIE ROD£2.87 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
0219897-0820-16SCREW M8 x 20£2.32 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023382820013/0TIE ROD NJ92£27.27 Add to
025125510063/0PIN£5.19 Add to
026325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
028112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
029112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
030135062018/0TRANSMISSION BELT A98£38.98 Add to
041125510095/0STUD BOLT (OBSOLETE)N/A
043125601555/0PULLEY£30.26 Add to
046125160014/1PULLEY SPACER£7.57 Add to
047125160018/1PULLEY SPACER£6.71 Add to
048112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
049119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
050125601588/0PULLEY£31.75 Add to
051122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
053118400922/1TRANSAXLE-630030 (LANGHUI)£767.54 Add to
054112691900/0HEX-HEAD SCREW£1.91 Add to
055112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
056325774247/0BRACKET£11.87 Add to
057112735150/0SELF-FORMING SCREW M8x16 UNI 8111TT C15£2.06 Add to
058112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
06082601509/0Pulley£80.07 Add to
061112139430/0KEY 3/16" x 3/4"£2.06 Add to
062112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
063125270321/0BELT GUIDE£15.59 Add to
064112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
065112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
066125160034/0WHEELS SPACER L=29.3£4.78 Add to
067112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
071382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
071382680053/0WHEEL ASSEMBLY 18" [WANDA] P512£200.38 Add to
072182000592/0REAR WHEEL RIM£103.58 Add to
073382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
073382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
074125950000/0PNEUMATIC VALVE£5.73 Add to
075125670005/2SPINDLE WASHER£3.89 Add to
076112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
077122110230/0HUB COVER£2.06 Add to
71A382680054/0WHEEL ASSEMBLY 18" MALZ+WANDA P5£195.66 Add to
72A182000592/0REAR WHEEL RIM£103.58 Add to
73A125590022/0TYRE P 519 VERSION£94.40 Add to
