CHASSIS

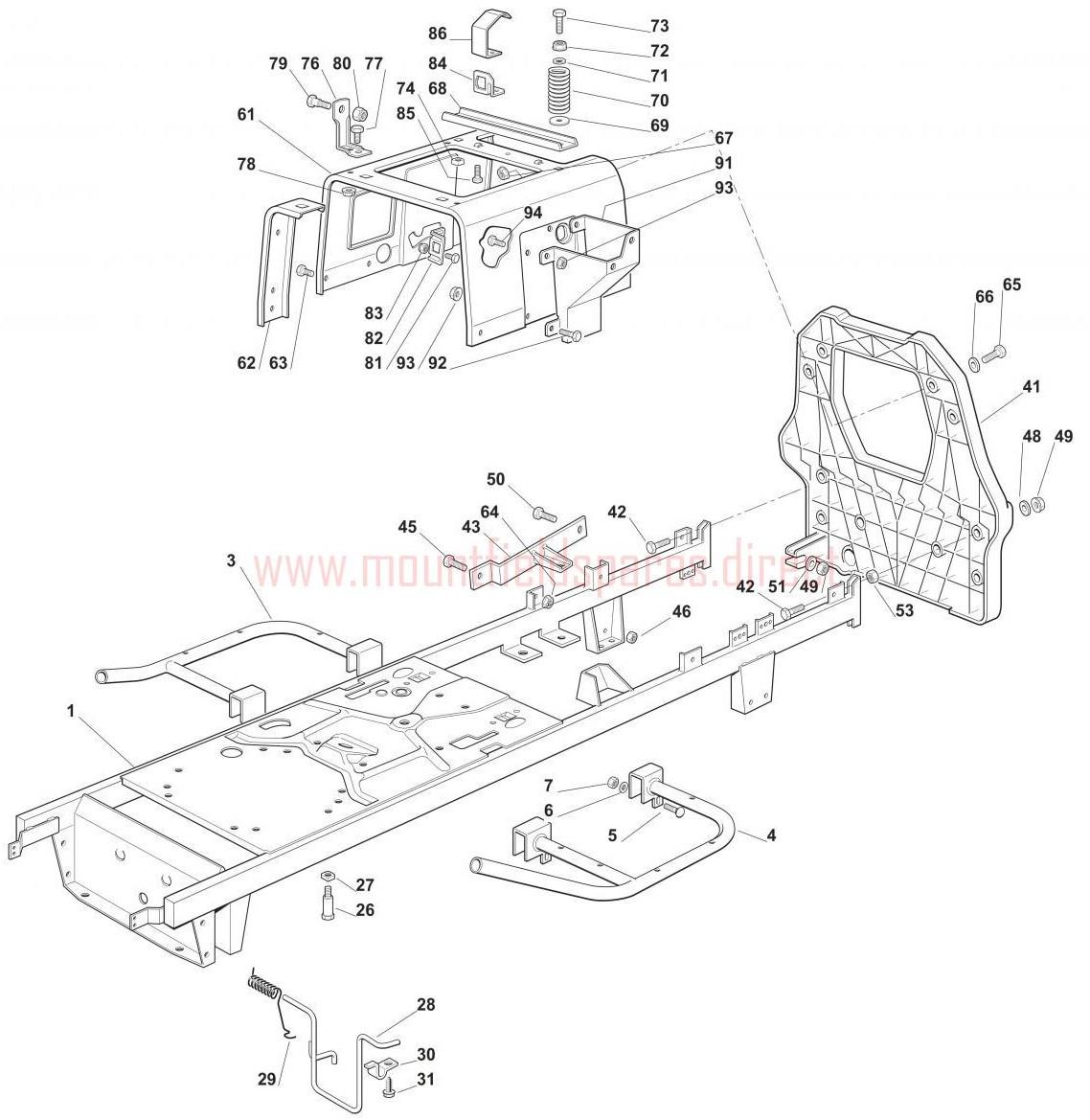

CHASSIS assembly details for Mountfield 1438M (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00182800083/1Frame (OBSOLETE)N/A
003382800019/0RIGHT FOOTBOARD FRAME£50.86 Add to
004382800019/0RIGHT FOOTBOARD FRAME£50.86 Add to
005112815240/0SCREW M6 x 40£1.91 Add to
006112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
026125580023/0BELT GUIDE£8.19 Add to
027112360425/0SQUARE NUT M8£2.18 Add to
02825270315/0BELT GUIDE 2007£25.10 Add to
029125430244/1BELT GUIDE SPRING£6.79 Add to
030325774299/0FIXING CLAMP£8.73 Add to
031112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
041125547106/0PLASTIC REAR PLATE£82.05 Add to
042112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
04382650203/0Reinforcement (OBSOLETE)N/A
045112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
046112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
048112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
049112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
050112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
051112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
061325785119/1SEAT SUPPORT£60.29 Add to
06225650055/0FRONT SEAT STIFFENING 2007£8.70 Add to
063112790781/0HEX-HEAD SCREW M6 x 12£1.76 Add to
064112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
065112791213/1SCREW M6 X 18£1.74 Add to
06825650056/0REAR SEAT STIFFENING 2007£8.70 Add to
070125430205/1SEAT SHOCK ABSORBER SPRING£6.01 Add to
073125943001/1SCREW£2.06 Add to
074112360420/0NUT£2.06 Add to
076325755008/0PLATE (SEAT TCJ)£3.89 Add to
079122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
080112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
081112789000/0SCREW TE M5 x 12£2.06 Add to
082382500011/2BRAKE PEDAL£70.68 Add to
083112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
084325755025/2SEAT SWITCH SUPPORT£6.27 Add to
085112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
086325430255/0SEAT PROTECTION SPRING£4.37 Add to
09125785057/0BRACKET 2007£18.81 Add to
