TRANSMISSION

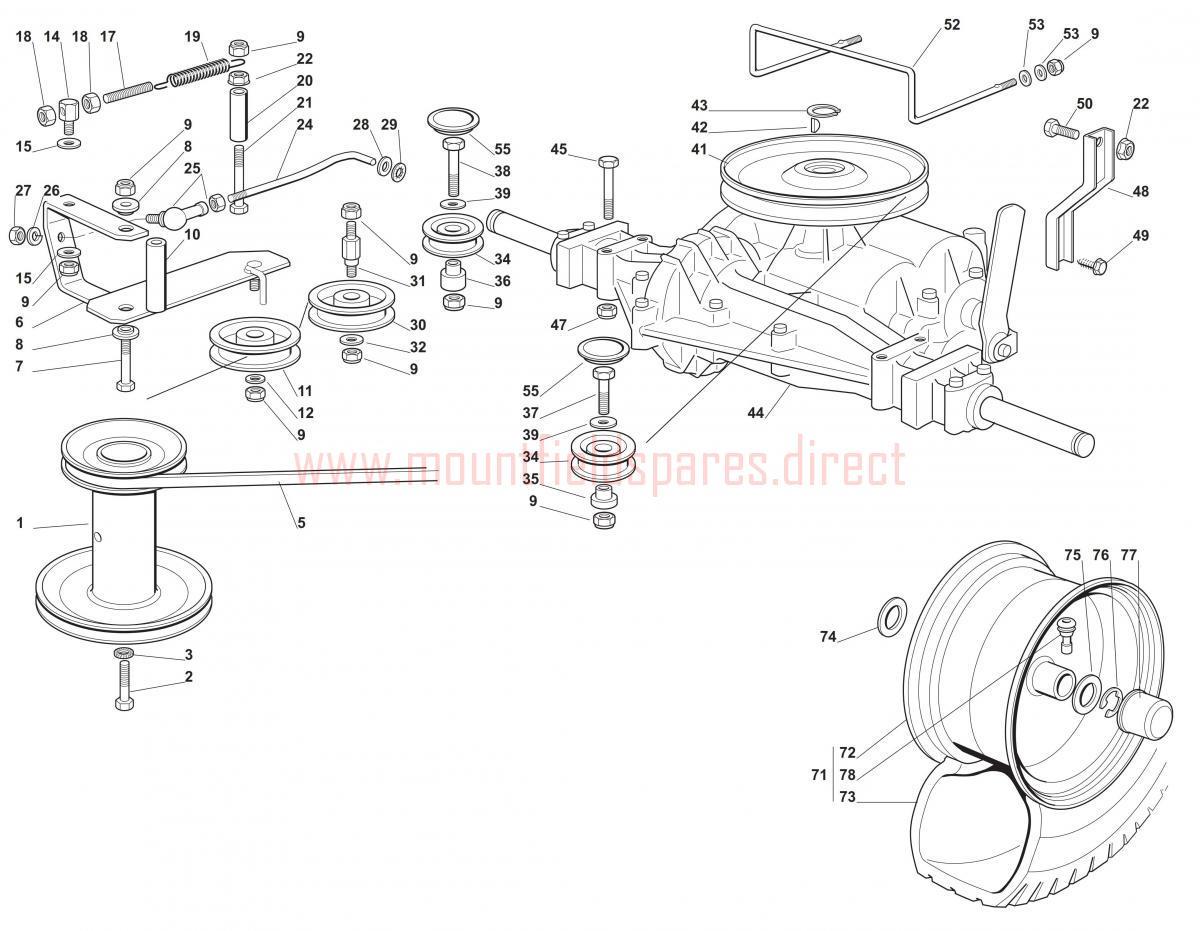

TRANSMISSION assembly details for Mountfield 1438M (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125601547/1MOTOR PULLEY£94.13 Add to
002112737310/0HEX-HEAD SCREW 7/16" x 2" 20 UNF£1.90 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
005135062000/1TRANSMISSION BELT A96£34.35 Add to
00682318133/0TIGHTENER LEVER 2007£24.63 Add to
007112692080/0HEX-HEAD SCREW M8 x 90£2.06 Add to
008125038002/1BUSH£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010125160017/0SPACER£4.66 Add to
011125601554/0PULLEY£26.18 Add to
012112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
015325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
017125840005/0TIE ROD£2.87 Add to
018112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
019125430219/1SPRING£3.96 Add to
020125160008/0SPACER£5.12 Add to
021112692050/0HEX-HEAD SCREW£1.91 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
024125840002/0TIE ROD£18.95 Add to
025122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
026112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
028112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
029112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
030125601555/0PULLEY£30.26 Add to
031125510036/2STUD BOLT£11.59 Add to
034325601570/1BELT PULLEY£24.95 Add to
035125160018/1PULLEY SPACER£6.71 Add to
036125160014/1PULLEY SPACER£7.57 Add to
037119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
038112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
041182601503/0MOBILE PULLEY£102.48 Add to
042112139430/0KEY 3/16" x 3/4"£2.06 Add to
043112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
044118400922/1TRANSAXLE-630030 (LANGHUI)£767.54 Add to
045112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
047112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
048325774247/0BRACKET£11.87 Add to
049112735150/0SELF-FORMING SCREW M8x16 UNI 8111TT C15£2.06 Add to
050112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
052125270303/2PULLEY BELT GUIDE£15.06 Add to
053112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
055125109521/1COVER£2.06 Add to
071382680054/0WHEEL ASSEMBLY 18" MALZ+WANDA P5£195.66 Add to
072182000592/0REAR WHEEL RIM£103.58 Add to
073125590022/0TYRE P 519 VERSION£94.40 Add to
074112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
075125670005/2SPINDLE WASHER£3.89 Add to
076112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
077122110230/0HUB COVER£2.06 Add to
078125950000/0PNEUMATIC VALVE£5.73 Add to
