ENGINE

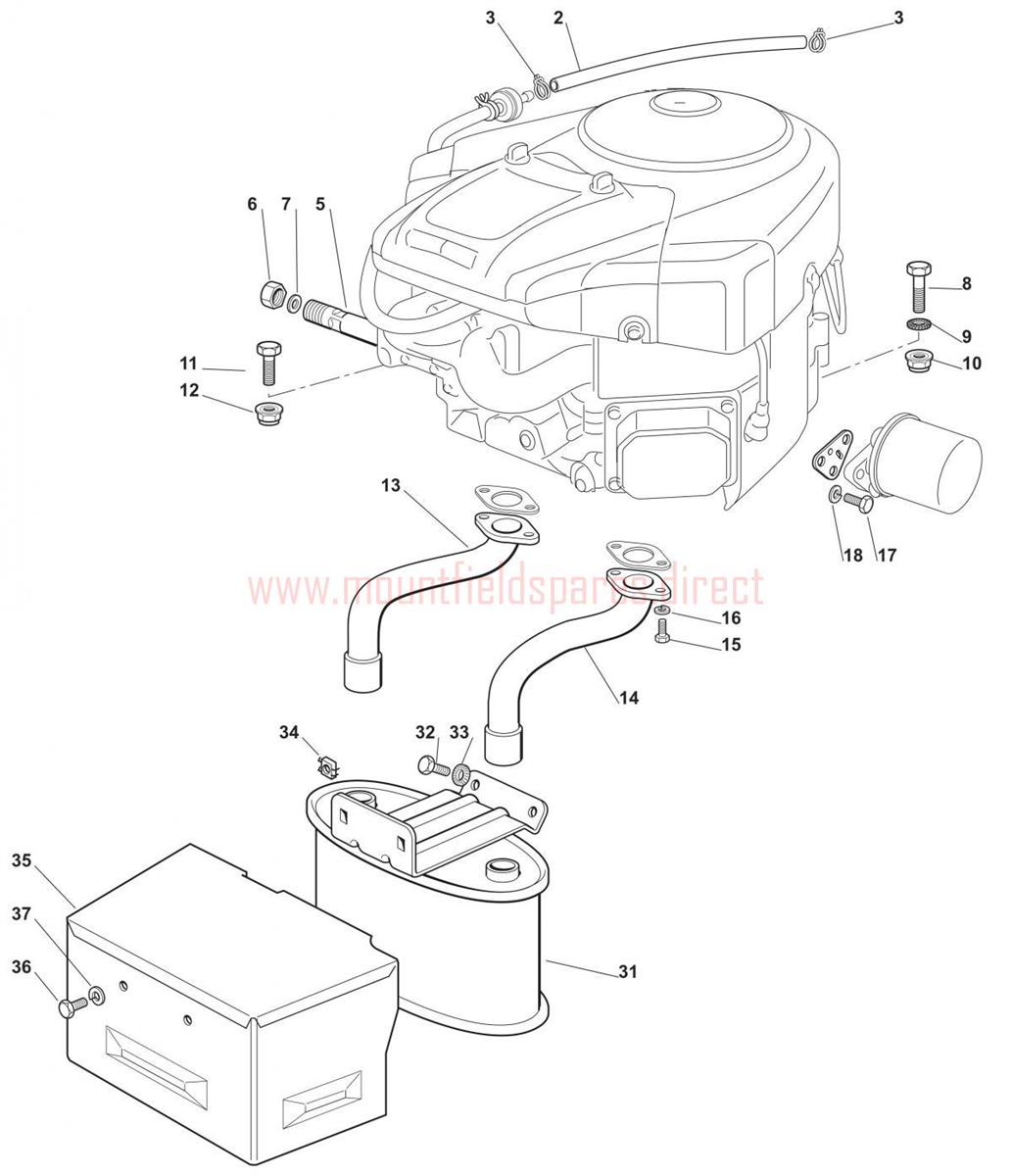

ENGINE assembly details for Mountfield 1440H_1640H_1840H_2040H_2248H (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869016/1CONNECTING TUBE£7.10 Add to
005125598050/0OIL DISCHARGE TUBE£8.04 Add to
006118737849/0OIL DRAIN PLUG£2.47 Add to
007118401001/1OIL DRAIN SEAL£2.06 Add to
008112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
009112540260/0INNER TOOTHED WASHER M8£2.06 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
011119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
013118738214/0EXHAUST PIPE R/H£91.78 Add to
014118738215/0EXHAUST PIPE L/H£93.36 Add to
015112735530/0SCREW 5/16" x 3/4"£1.91 Add to
016112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
017112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
018112582100/0LOCK WASHER M6£2.06 Add to
031182750003/0MUFFLER ASSEMBLY£265.02 Add to
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
035382598005/2MUFFLER PROTECTION GUARD£34.35 Add to
036112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
