ENGINE MOTOR (B&S 13,5 HP) (B&S 13,5 HP)

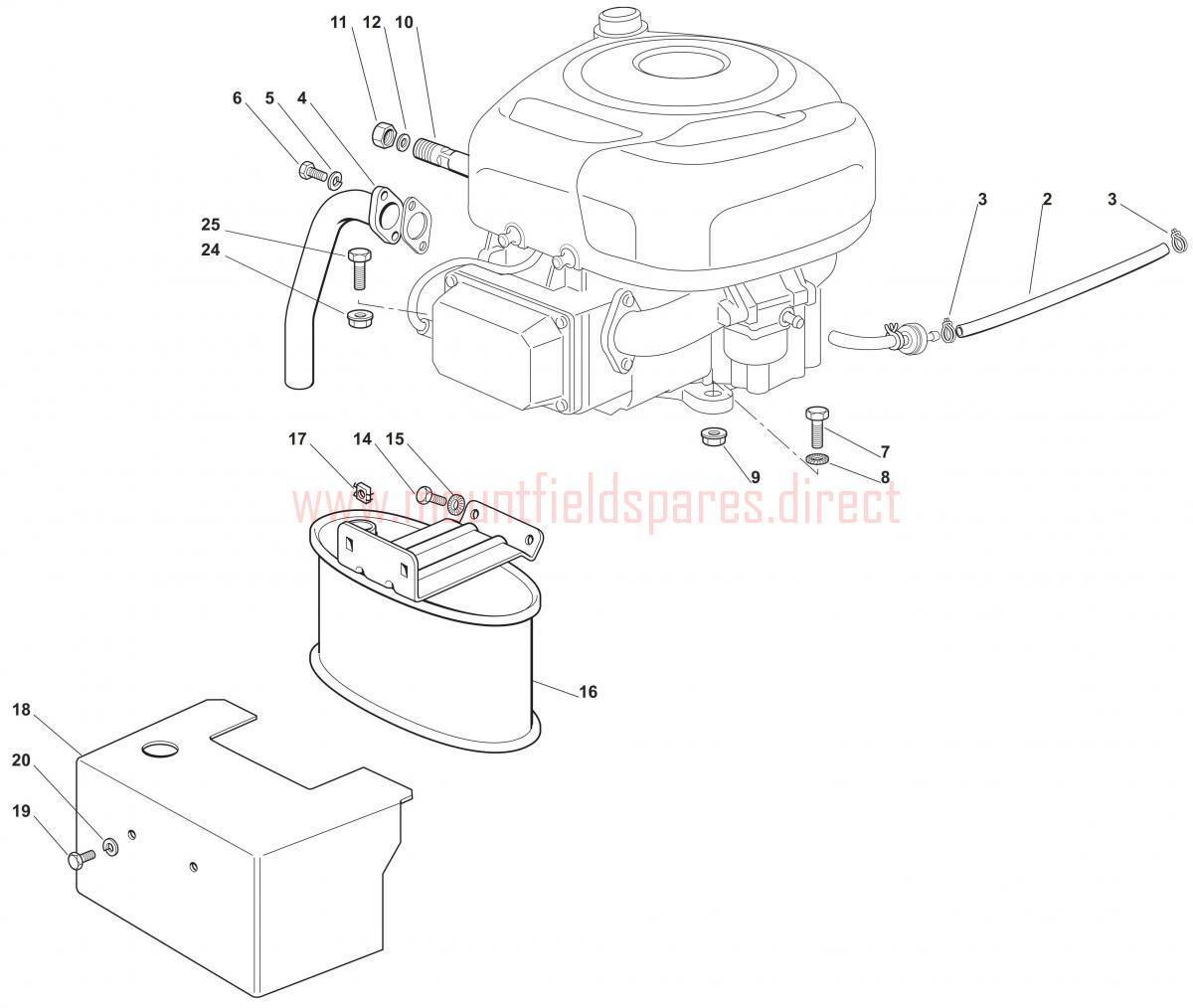

ENGINE MOTOR (B&S 13,5 HP) (B&S 13,5 HP) assembly details for Mountfield 1440H_1640H_1840H_2040H_2248H (20100406) 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869016/1	CONNECTING TUBE	£7.10	Add to
004	118738224/0	EXHAUST PIPE	£42.53	Add to
005	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
006	112735530/0	SCREW 5/16" x 3/4"	£1.91	Add to
007	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
008	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
009	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
010	125598050/0	OIL DISCHARGE TUBE	£8.04	Add to
011	118737849/0	OIL DRAIN PLUG	£2.47	Add to
012	118401001/1	OIL DRAIN SEAL	£2.06	Add to
014	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
016	182750010/0	MUFFLER	£117.75	Add to
017	112360425/0	SQUARE NUT M8	£2.18	Add to
018	382598009/2	MUFFLER GUARD [B&S]	£35.71	Add to
019	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
025	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
