MOWER DECK LIFT

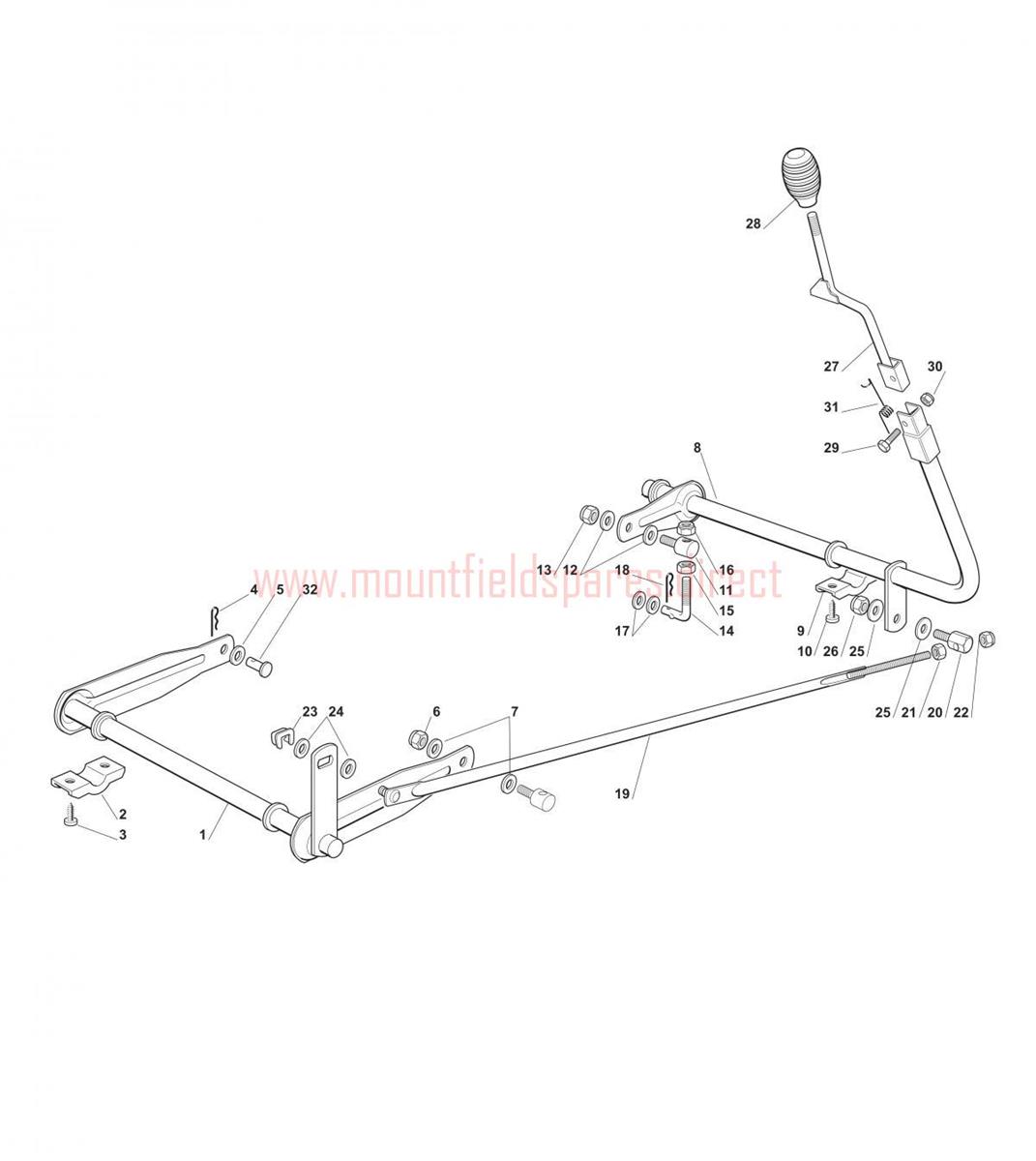

MOWER DECK LIFT assembly details for Mountfield 1228M-1228H 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384001025/0FRONT DECK LIFT AXLE£39.13 Add to
002327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
003112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
004124487997/0SPRING CLIP D=1.8£2.06 Add to
005325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
006112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
008384001005/2REAR DECK LIFT AXLE£28.59 Add to
011125510007/2CONNECTING PIN£5.76 Add to
014125840003/2TIE ROD£13.20 Add to
015112295200/0HEXAGON NUT M10£1.79 Add to
017322672150/0ANTI-FRICTION WASHER 10.2 X 30 X 0.8 C70£1.91 Add to
019184002051/0CONNECTING ROD£21.67 Add to
021112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
024325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
027384317065/1DECK LIFTING LEVER£15.13 Add to
028125394510/0CONTROL KNOB [BLACK]£4.35 Add to
029112674700/0SCREW M6 X 35£2.06 Add to
030112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031127430555/0LIFTING DECK ENGAGE SPRING£3.41 Add to
032127510114/0FRONT RH HOOK DECK PIN£9.14 Add to
