DISCHARGE

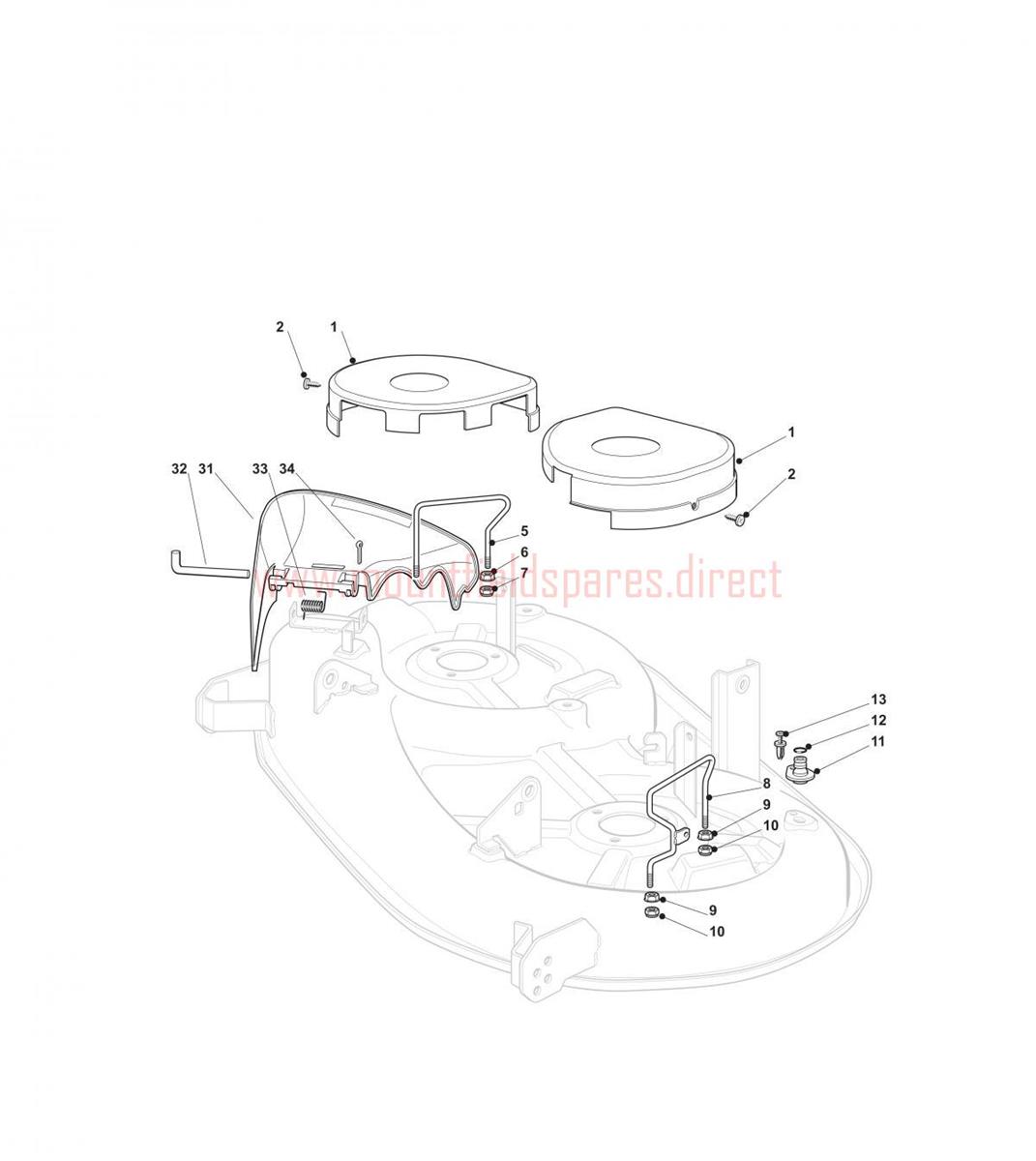

DISCHARGE assembly details for Mountfield 1438M 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125060106/0BELT PROTECTION GUARD£7.63 Add to
001325060117/0R/L BELT PROTECTION GUARD£12.96 Add to
002112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
005125270313/0BELT GUIDE£9.82 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
008125270327/0BELT GUIDE£30.07 Add to
011125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
012119035000/0O RING 10.77 x 2.62£5.46 Add to
013112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
031125600056/0DEFLECTOR GUARD£9.68 Add to
032125510073/0FULCRUM PIN£8.04 Add to
033125430242/1SPRING£3.64 Add to
034112141418/0SPLIT PIN 3 x 20£1.76 Add to
