CONTROLS

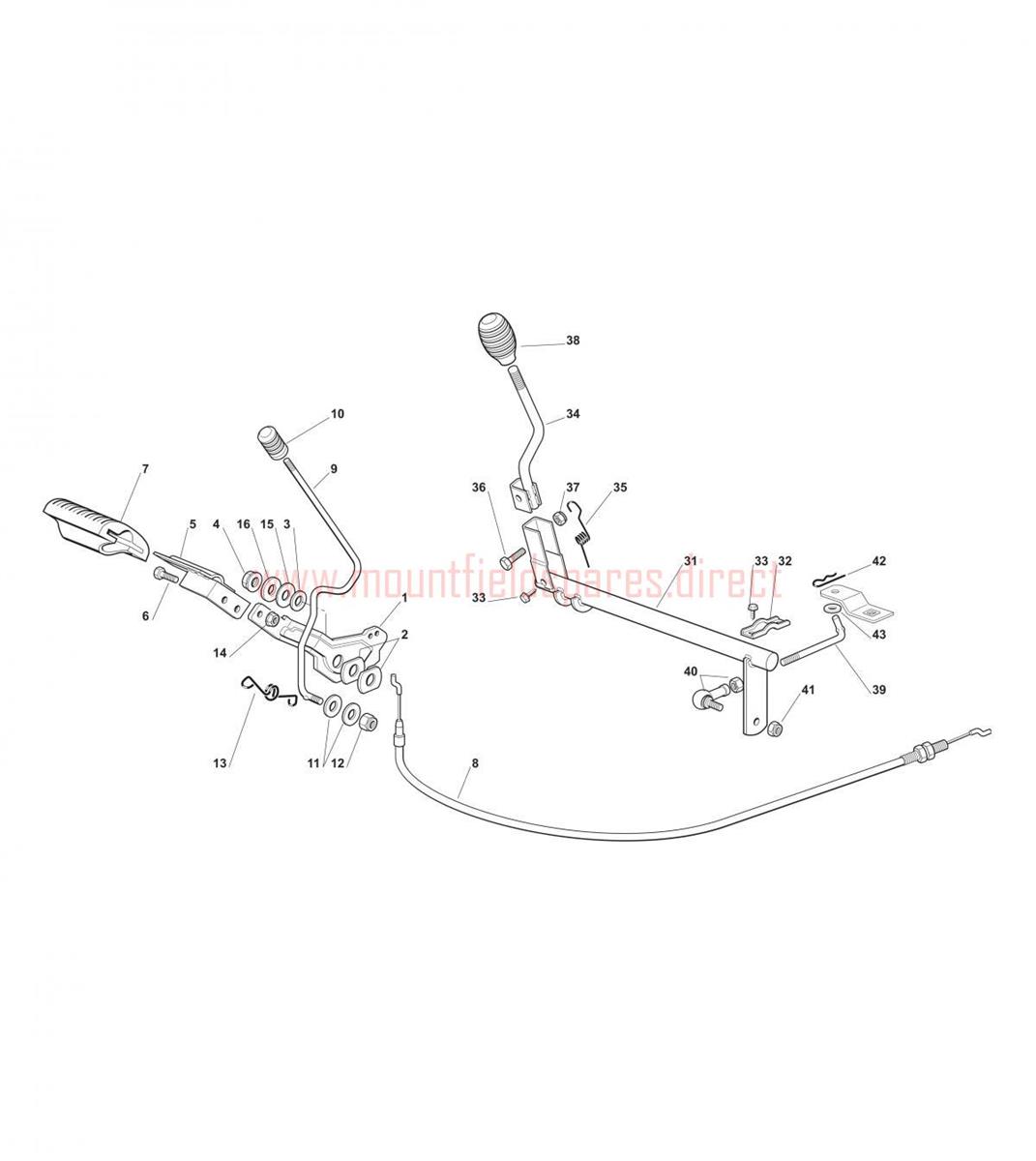

CONTROLS assembly details for Mountfield R25M-725M 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001327500051/1LOWER BRAKE PEDAL£6.42 Add to
002327670054/0WASHER£10.09 Add to
003112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
004112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
005384503005/0UPPER BRAKE PEDAL£15.13 Add to
006112791200/1SCREW TE M6 x 16£1.79 Add to
007125110269/0BRAKE PEDAL COVER£4.10 Add to
008384207105/0BRAKE CONTROL CABLE£20.04 Add to
009327034064/1PARKING BRAKE CONTROL ROD£12.15 Add to
010127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
011325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
013127430564/0PARKING BRAKE ROD£2.06 Add to
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015327670055/0ANTI-FRICTION WASHER£2.06 Add to
016112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
031384001021/0GEAR CONTROL AXLE£26.18 Add to
032327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
033112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
034384317071/0GEAR CONTROL LEVER ASS.Y£17.51 Add to
035127430570/1GEAR CONTROL ROD SPRING£4.52 Add to
036112674700/0SCREW M6 X 35£2.06 Add to
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
038125394510/0CONTROL KNOB [BLACK]£4.35 Add to
039127034063/0GEAR CONTROL ROD£17.80 Add to
040122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
041112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
042124487997/0SPRING CLIP D=1.8£2.06 Add to
