BODY WORK (1)

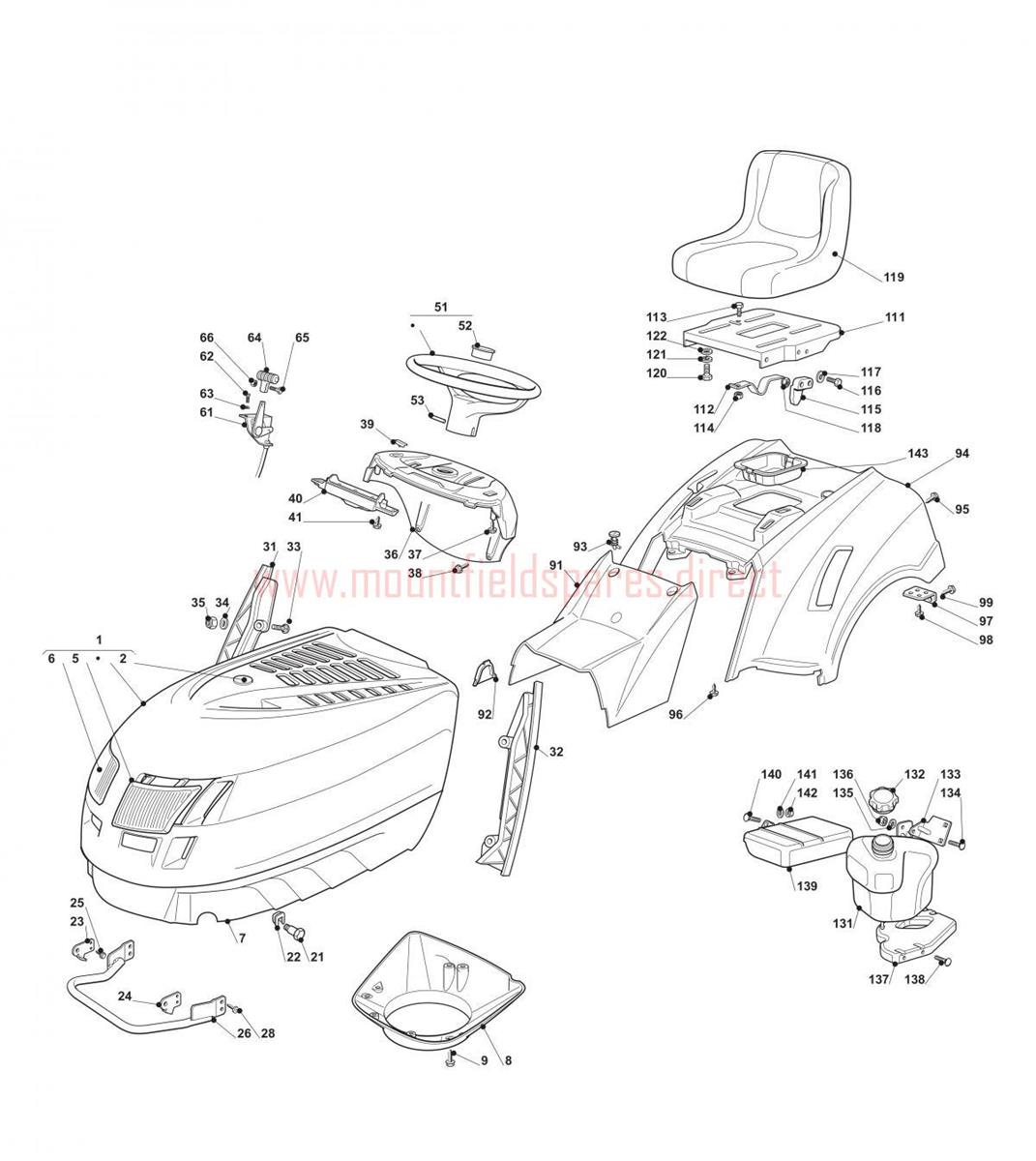

BODY WORK (1) assembly details for Mountfield T35M-1436M-1436H 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076949/0ENGINE HOOD [GREY]£211.50 Add to
00225547183/025547183/0 Plate Grey (OBSOLETE)N/A
005125410861/0LEFT HEADLIGHT£10.42 Add to
006125410860/0RIGHT HEADLIGHT£10.42 Add to
007125076808/0LOWER ENGINE HOOD£45.64 Add to
00825108024/0Conveyor (Honda)Honda engine (OBSOLETE)N/A
009112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
021125510023/1PIN£3.69 Add to
022112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
023325547089/1RIGHT PLATE£4.52 Add to
024325547091/1LEFT PLATE£4.52 Add to
025112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
026382869033/0FRONT BUMPER BAR£38.44 Add to
028112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
032325599013/0LEFT DASHBOARD SUPPORT£7.23 Add to
033112815221/0SCREW M6 x 35£1.79 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036325120188/2DASHBOARD [BLACK]£37.40 Add to
037112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
038112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
040325600074/0PC BOARD COVER£9.07 Add to
051125961217/1STEERING WHEEL [BLACK]£93.73 Add to
052325120230/0COVER£3.55 Add to
053112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
061182000212/0THROTTLE CABLE£24.75 Add to
062112788512/0SCREW M4 x 12£2.06 Add to
063112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
064125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
065112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
066112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
091325110369/0CENTRAL COVER [GREY]£42.53 Add to
092325207172/0COVER CLOSE CAP£4.52 Add to
093125580020/2SPRING TENSIONED SCREW£7.23 Add to
094325110341/0WHEEL COVER (GREY) (OBSOLETE)N/A
097325755041/0ANGLE BRACKET£2.06 Add to
099112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
111325547033/1SEAT PLATE£38.44 Add to
112125430223/2SEAT LIFTING SPRING£6.55 Add to
113112789000/0SCREW TE M5 x 12£2.06 Add to
114112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
115327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
116112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
117112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
119125722471/0SEAT MOUNTFIELD£197.87 Add to
120112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
121112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
122112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
131325735124/0FUEL TANK£85.50 Add to
132125795001/1FUEL TANK CAP£8.32 Add to
133325785291/0UPPER FUEL TANK SUPPORT£8.42 Add to
135112581500/0WASHER M5£2.06 Add to
136112437503/0LOCK PLATE£2.06 Add to
137325785289/0LOWER FUEL TANK SUPPORT£9.68 Add to
138112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
139325600075/0GUARD£10.98 Add to
140112815240/0SCREW M6 x 40£1.91 Add to
143325207176/0TANK COVER [BLACK]£8.37 Add to
