CONTROLS 1436H

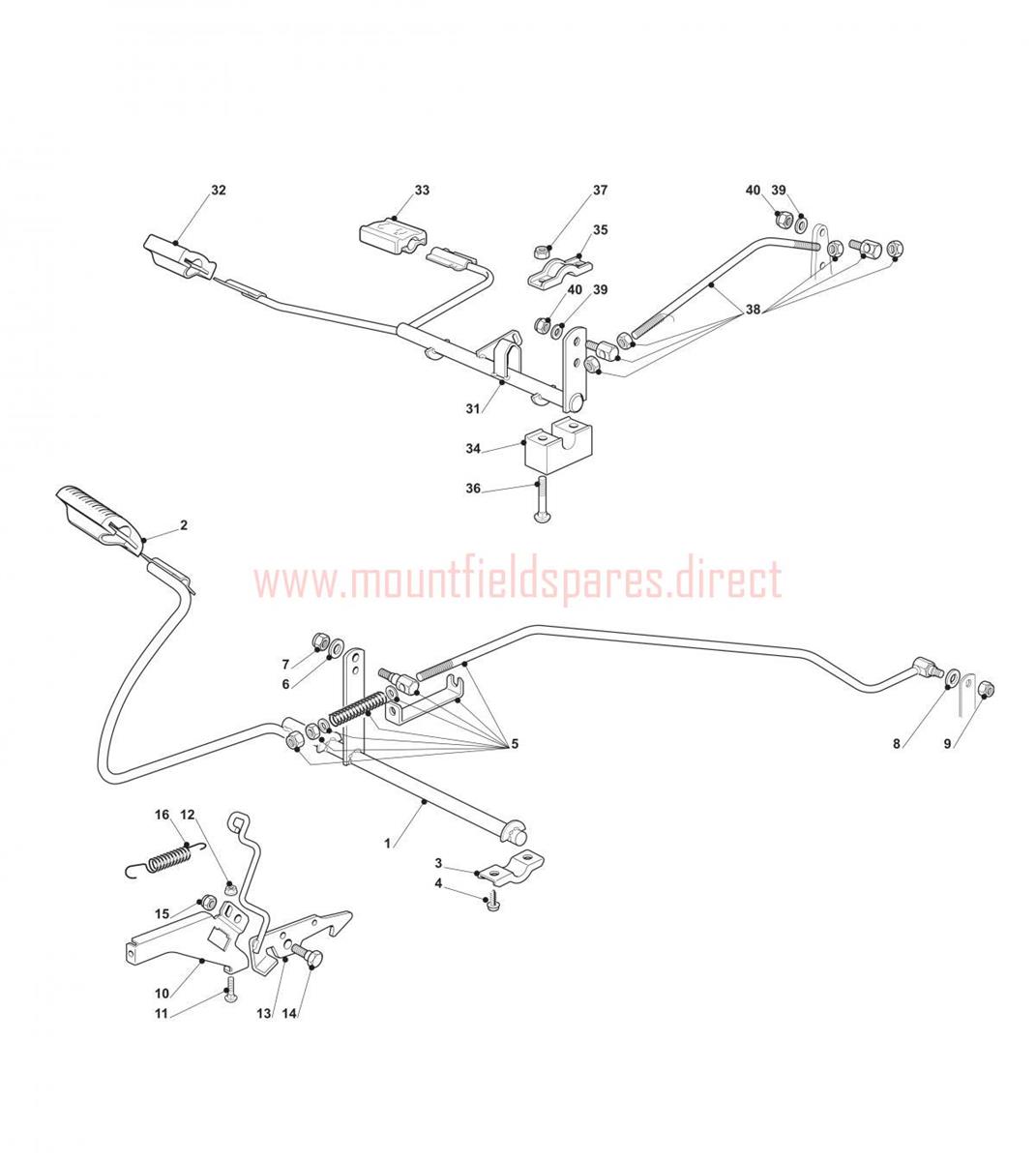

CONTROLS 1436H assembly details for Mountfield T35M-1436M-1436H 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500029/1CLUTCH/BRAKE PEDAL ASSEMBLY£65.87 Add to
002125110267/0BRAKE PEDAL COVER£4.23 Add to
003327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
004112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
005382000542/1CONTROL ROD ASSEMBLY (TUFF TORQ)£41.16 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010325785261/0SUPPORT PLATE£5.87 Add to
011112815200/0SCREW TTDQ M6X16£2.06 Add to
012112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
013382000531/0PARKING BRAKE LEVER£24.03 Add to
014122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
016125430213/0SPRING£2.06 Add to
031382000383/1FEED/REVERSE GEAR CONTROL AXLE NJ92£69.78 Add to
032325110274/0FRONT PEDAL COVER [BLACK]£6.27 Add to
033325110331/0REVERSE GEAR PEDAL [BLACK]£7.36 Add to
034325785185/0AXLE SUPPORT BLOCK£4.10 Add to
036112815245/0SCREW M6 x 45£2.06 Add to
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
038382000543/0FEED/REVERSE GEAR CONTROL ROD£31.26 Add to
039112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
