ELECTRIC SYSTEM (Honda)

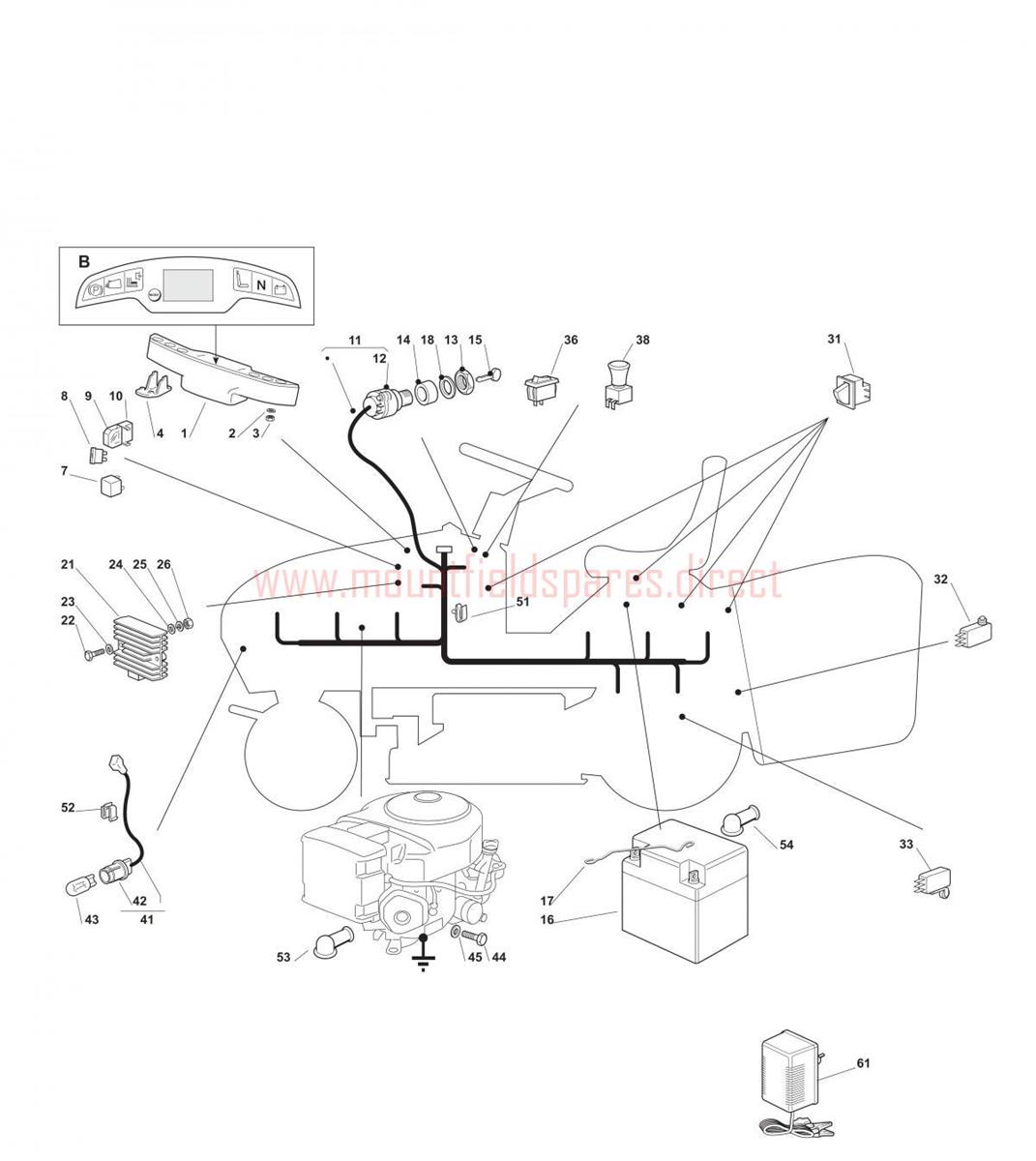

ELECTRIC SYSTEM (Honda) assembly details for Mountfield T40M-T40H-1540M-1540H-1640H-1840H-2040H-2248H 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382722421/2PC BOARD ASSEMBLY£320.51 Add to
002112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
003112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
004325031501/0BUZZER SOUND AMPLIFIER£6.69 Add to
007133567000/0RELAY£13.91 Add to
008133340036/0FUSE 25A£2.06 Add to
008133340040/0FUSE 10A£2.47 Add to
009133215000/0FUSE HOLDER COVER£3.83 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011182040148/0HARNESS ASS.Y£214.54 Add to
012118450072/0IGNITION SWITCH£32.19 Add to
013118400862/0THREADED RING NUT£4.64 Add to
014118550136/0PLASTIC RING NUT£2.06 Add to
015118210022/0IGNITION KEY [PAIR]£9.65 Add to
016118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
017125430230/0SPRING ROD£3.55 Add to
018118550135/0RING NUT WASHER£2.06 Add to
02131750ZOA811Rectifier (OBSOLETE)N/A
022112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
023112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
025112582100/0LOCK WASHER M6£2.06 Add to
026112292100/0HEXAGON NUT M6£1.47 Add to
031119410622/1MICRO SWITCH N.O.£7.10 Add to
032119410605/1MICRO SWITCH£36.77 Add to
033119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
036118450084/0HEADLIGHT SWITCH£4.35 Add to
038118450068/0CLUTCH SWITCH [YELLOW]£55.89 Add to
041182040073/0HEADLIGHTS CABLE£18.68 Add to
043118459100/0HEADLIGHT BULB£2.47 Add to
05112735593/0Screw (OBSOLETE)N/A
052133320504/0CABLE CLIP£2.06 Add to
053118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
061182180190/1BATTERY CHARGER£61.20 Add to
