Engine

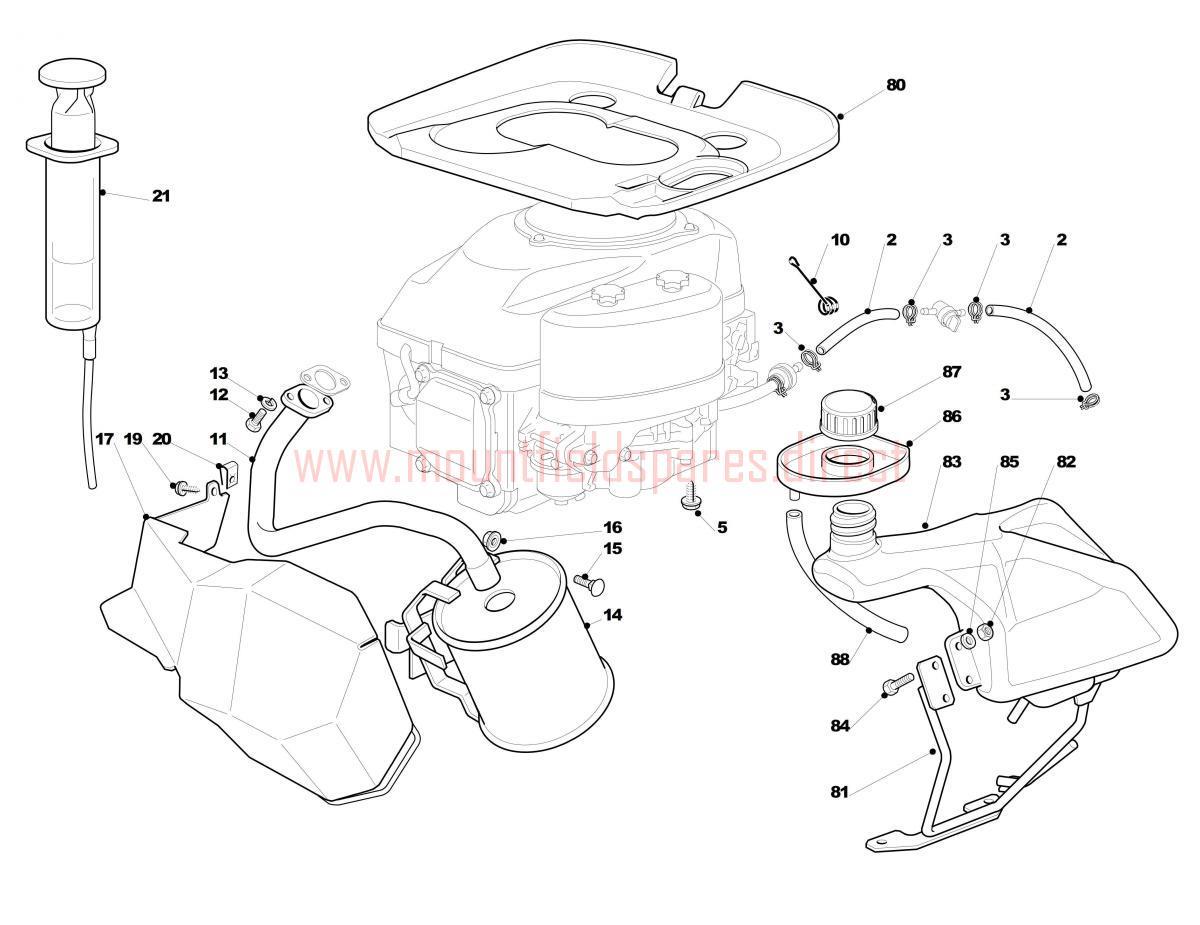

Engine assembly details for Mountfield 1228H (20100406) 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869035/1	CONNECTING TUBE	£9.82	Add to
005	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
011	118738240/0	EXHAUST PIPE	£57.52	Add to
012	112737450/0	SCREW 5/16 x 3/4 18 THREAD	£3.55	Add to
013	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
014	118716133/0	MUFFLER	£156.99	Add to
015	112815210/0	SCREW M6 x 20	£2.06	Add to
016	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
017	384598093/0	MUFFLER GUARD	£124.29	Add to
019	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
020	112437504/0	FIXING PLATE	£2.06	Add to
021	118718000/0	OIL EMPTYING SYRINGE	£16.22	Add to
080	327110325/2	ENGINE COVER [BLACK]	£20.45	Add to
081	384783049/0	FUEL TANK SUPPORT	£101.13	Add to
082	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
083	327733007/0	FUEL TANK	£75.23	Add to
084	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
085	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
086	327600061/2	FUEL TANK GUARD	£4.10	Add to
087	125795000/1	FUEL TANK CAP	£8.04	Add to
088	325869014/1	FUEL PIPE L=410	£7.92	Add to
