Optionals On Request

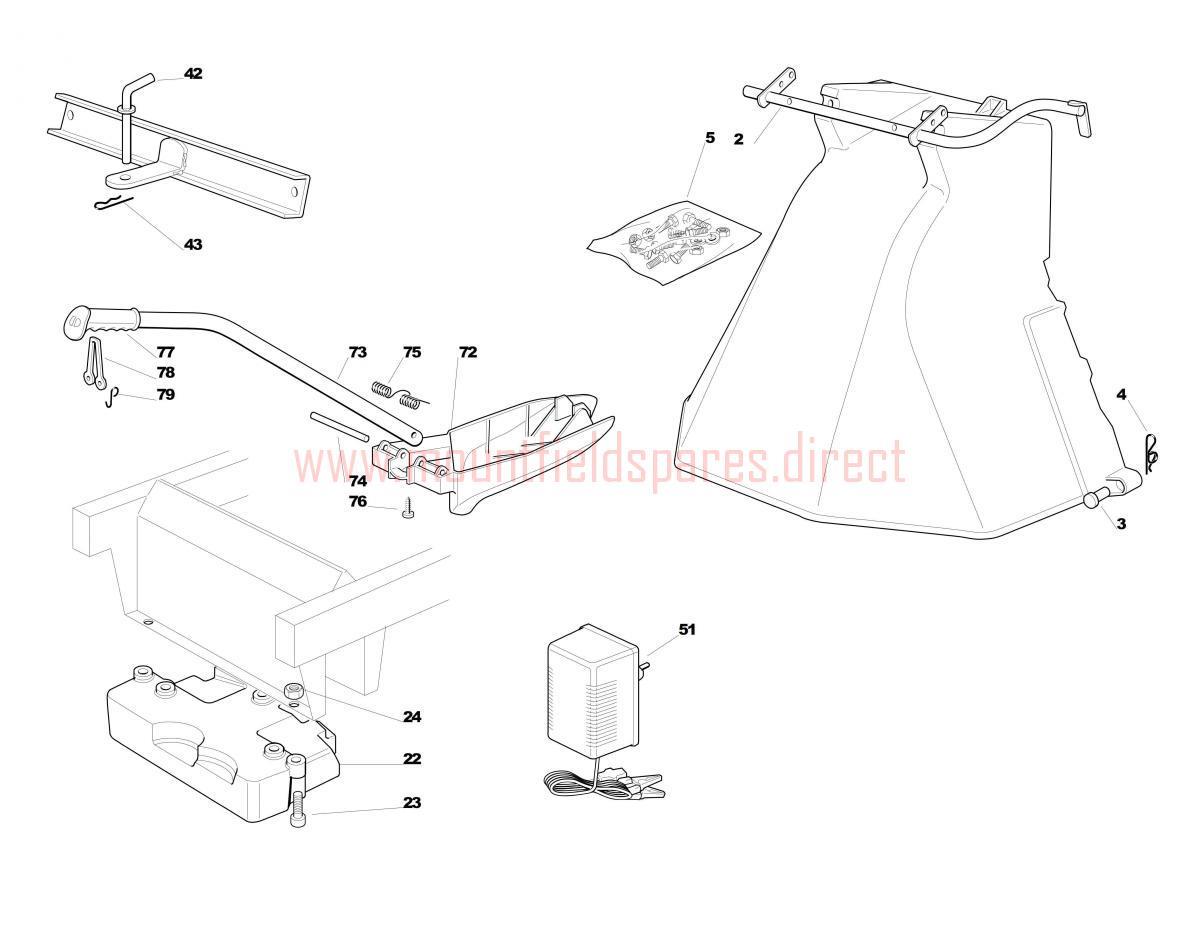

Optionals On Request assembly details for Mountfield 1436H (20100406) 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	382869035/0	SUPPORT TUBE	£36.69	Add to
003	125510022/1	PIN	£3.40	Add to
004	124487998/0	R CLIP D=2	£2.06	Add to
005	82180062/0	Screws Outfit (OBSOLETE)	N/A
022	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
023	112760520/0	HEXAGON SOCKET HEAD SCREW M8 x 45	£2.06	Add to
024	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
042	125510021/1	HITCH PIN	£11.78	Add to
043	124487999/0	R CLIP D=3	£1.91	Add to
051	182180190/1	BATTERY CHARGER	£61.20	Add to
051	182180190/1	BATTERY CHARGER	£61.20	Add to
072	325140093/0	MULCHING DEFLECTOR SHOE	£32.99	Add to
073	325394007/0	MULCHING DEFLECTOR HANDLE	£21.90	Add to
074	125510077/0	FULCRUM PIN	£3.69	Add to
075	125430245/0	SPRING	£3.28	Add to
076	112735410/0	FLANGED HEX-HEAD SCREW D=6 x 35	£2.06	Add to
077	325280000/1	HAND GRIP KIT MULCHING RO	£3.55	Add to
078	125840011/1	LOCKING RUBBER TIE	£6.27	Add to
079	125253004/0	FIXING HOOK	£2.06	Add to
