Transmission

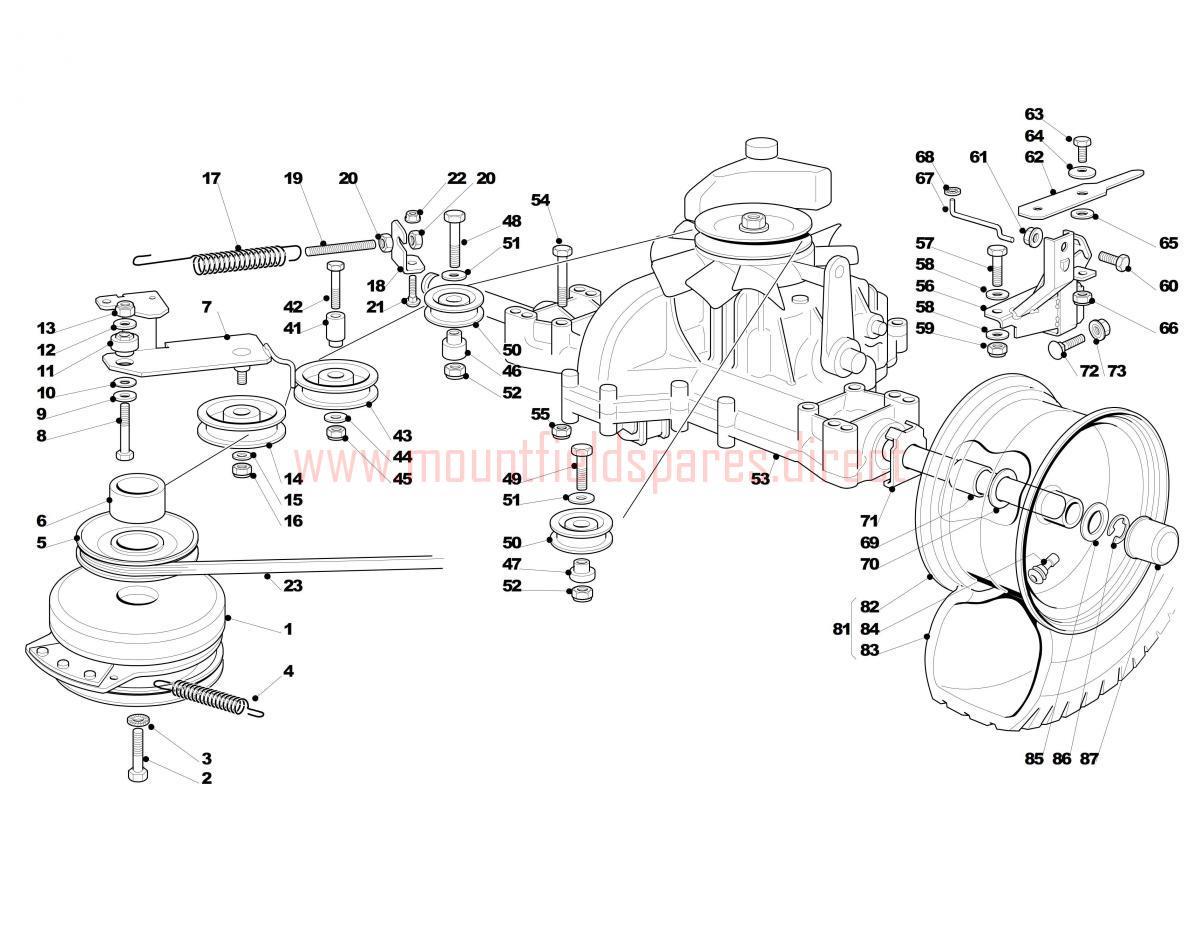

Transmission assembly details for Mountfield 1436H (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118399063/1ELECTROMAGNETIC CLUTCH I-5217-45 (NO RETURNS ON TH£342.22 Add to
002112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
004122430216/0TENSION SPRING£10.09 Add to
005125601566/1MOTOR PULLEY£32.99 Add to
006125160059/0PULLEY SPACER L=25.8£6.69 Add to
007382318217/1PULLEY LEVER£24.95 Add to
008112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
009112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
010327670055/0ANTI-FRICTION WASHER£2.06 Add to
011125510087/0FULCRUM PIN£5.46 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014125601554/0PULLEY£26.18 Add to
017125430260/0SPRING£9.16 Add to
018325755049/0SUPPORT BRACKET£3.55 Add to
019125840005/0TIE ROD£2.87 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
0219897-0820-16SCREW M8 x 20£2.32 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023135062018/0TRANSMISSION BELT A98£38.98 Add to
041125510100/0PIN£5.60 Add to
042112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
043125601555/0PULLEY£30.26 Add to
046125160024/2PULLEY SPACER£8.21 Add to
047125160030/2PULLEY SPACER£6.47 Add to
048112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
050125601588/0PULLEY£31.75 Add to
051122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
053118400960/0HYDRO TRANSAXLE K46S£1,492.43 Add to
055112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
056382785149/0SUPPORT BRACKET£20.99 Add to
057112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
058112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
060112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
062325318157/0LEVER£5.73 Add to
063112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
064112369500/0SPRING WASHER D=8£1.79 Add to
065325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
067125033033/1ROD£2.47 Add to
068112604896/0STARLOCK WASHER D=6£2.06 Add to
069125160031/0WHEEL SPACER£3.69 Add to
070112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
071325670025/0SPACER WASHER TT£4.27 Add to
081382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
081382680053/0WHEEL ASSEMBLY 18" [WANDA] P512£200.38 Add to
082182000592/0REAR WHEEL RIM£103.58 Add to
083382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
083382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
084125950000/0PNEUMATIC VALVE£5.73 Add to
085125670005/2SPINDLE WASHER£3.89 Add to
086112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
087122110230/0HUB COVER£2.06 Add to
