Electrical Parts

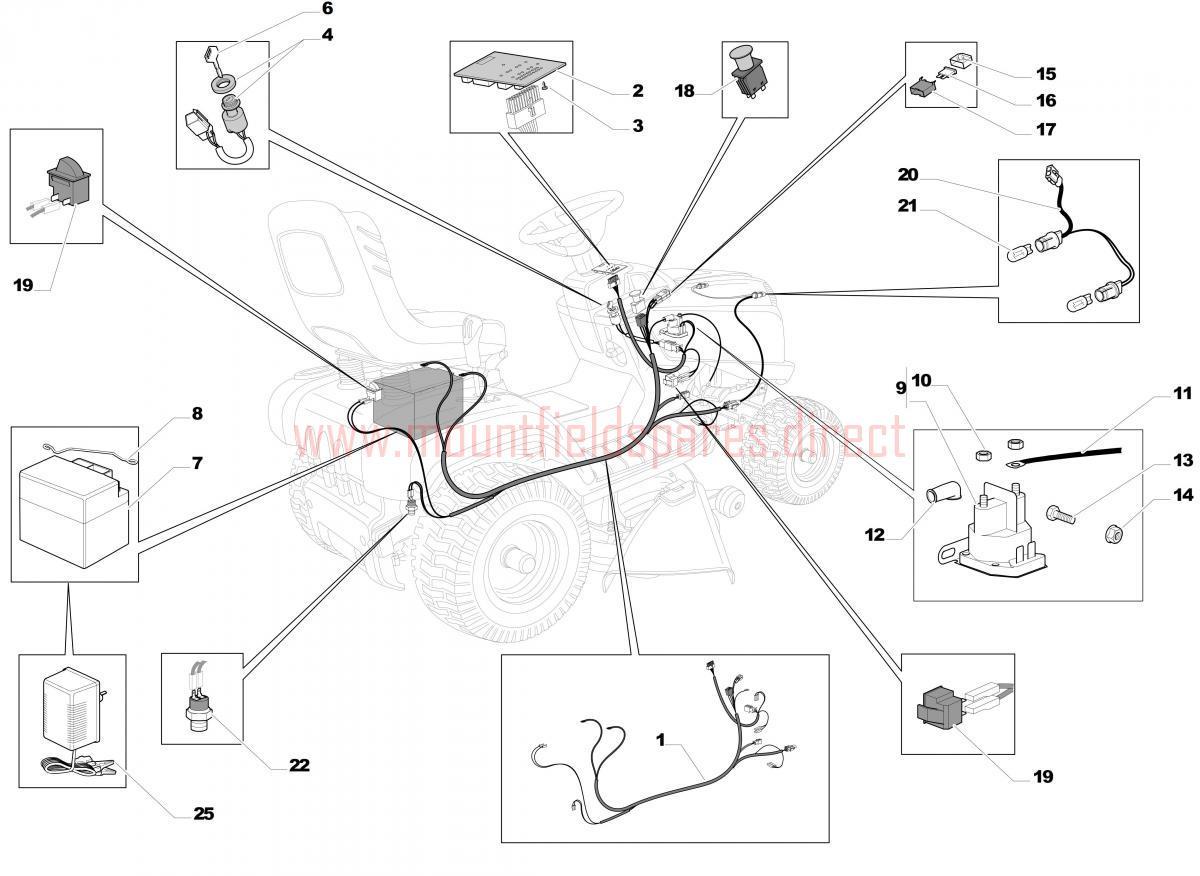

Electrical Parts assembly details for Mountfield 1538M (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182040151/0WIRING LOOM£116.11 Add to
002125722435/0PC BOARD No returns on this item (OBSOLETE) (OBSOLETE)N/A
003112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
004118450075/1STARTING SWITCH£20.45 Add to
006118210023/0IGNITION KEY [PAIR]£6.29 Add to
007118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
008125430265/1SPRING ROD£1.91 Add to
009118736112/0SOLENOID£39.80 Add to
0109743-5121-32LOCK NUT 5/16"£1.79 Add to
011125065002/0SOLENOID STARTING CABLE£10.91 Add to
012118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
013112790781/0HEX-HEAD SCREW M6 x 12£1.76 Add to
015133215000/0FUSE HOLDER COVER£3.83 Add to
015133500007/0FUSE HOLDER£7.64 Add to
016133340036/0FUSE 25A£2.06 Add to
016133340040/0FUSE 10A£2.47 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018118450073/0YELLOW CLUTCH SWITCH£15.41 Add to
019119410622/1MICRO SWITCH N.O.£7.10 Add to
020182040073/0HEADLIGHTS CABLE£18.68 Add to
021118459100/0HEADLIGHT BULB£2.47 Add to
022119410610/0NEUTRAL SWITCH [MECHANICAL]£54.79 Add to
025182180190/1BATTERY CHARGER£61.20 Add to
025182180190/1BATTERY CHARGER£61.20 Add to
