Engine

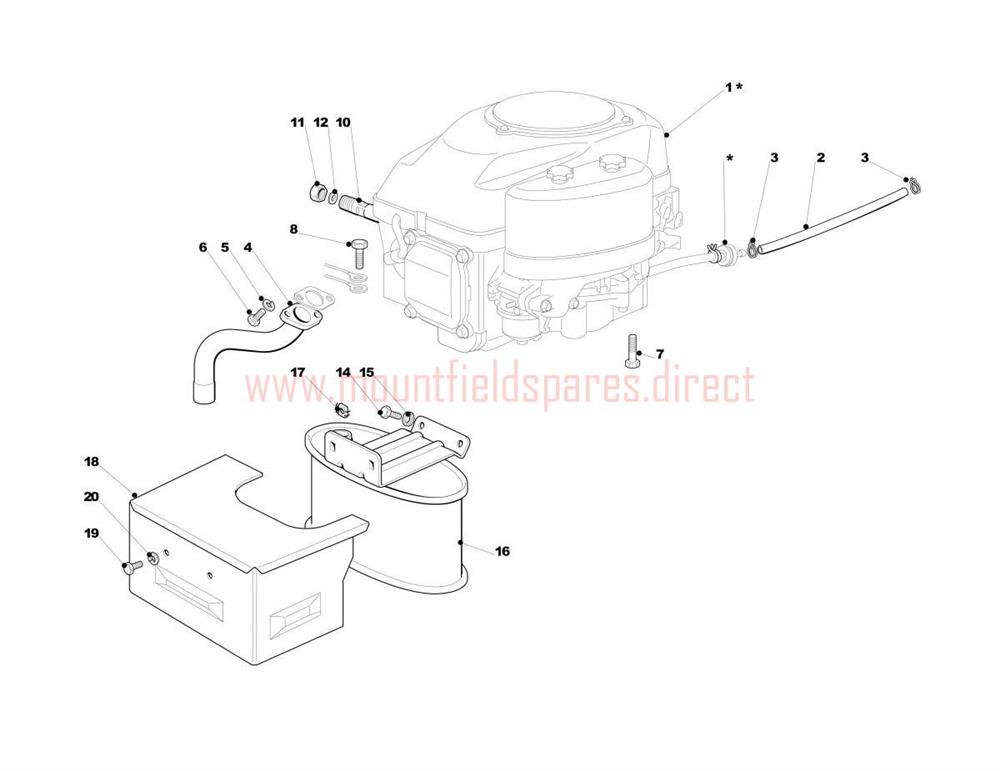

Engine assembly details for Mountfield 1540M (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00225869018/125869018/1 Connecting Tube (OBSOLETE)N/A
002325869057/0FUEL TUBE L=1000£20.72 Add to
004118738231/1EXHAUST PIPE£22.35 Add to
005112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005125598050/0OIL DISCHARGE TUBE£8.04 Add to
006112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
006118737849/0OIL DRAIN PLUG£2.47 Add to
007112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
007118401001/1OIL DRAIN SEAL£2.06 Add to
008119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
008112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
009112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
010112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
010127598060/0OIL DRAIN EXTENSION£8.52 Add to
011112540260/0INNER TOOTHED WASHER M8£2.06 Add to
01218738229/018738229/0 Exaust Tube Right (OBSOLETE)N/A
01318738228/018738228/0 Exaust Tube Left (OBSOLETE)N/A
014112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
016182750010/0MUFFLER£117.75 Add to
017112360425/0SQUARE NUT M8£2.18 Add to
018382598039/0MUFFLER GUARD£65.50 Add to
019112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
031182750003/0MUFFLER ASSEMBLY£265.02 Add to
035382598015/1MUFFLER GUARD-18HP HONDA£50.70 Add to
