Cutting Plate (1)

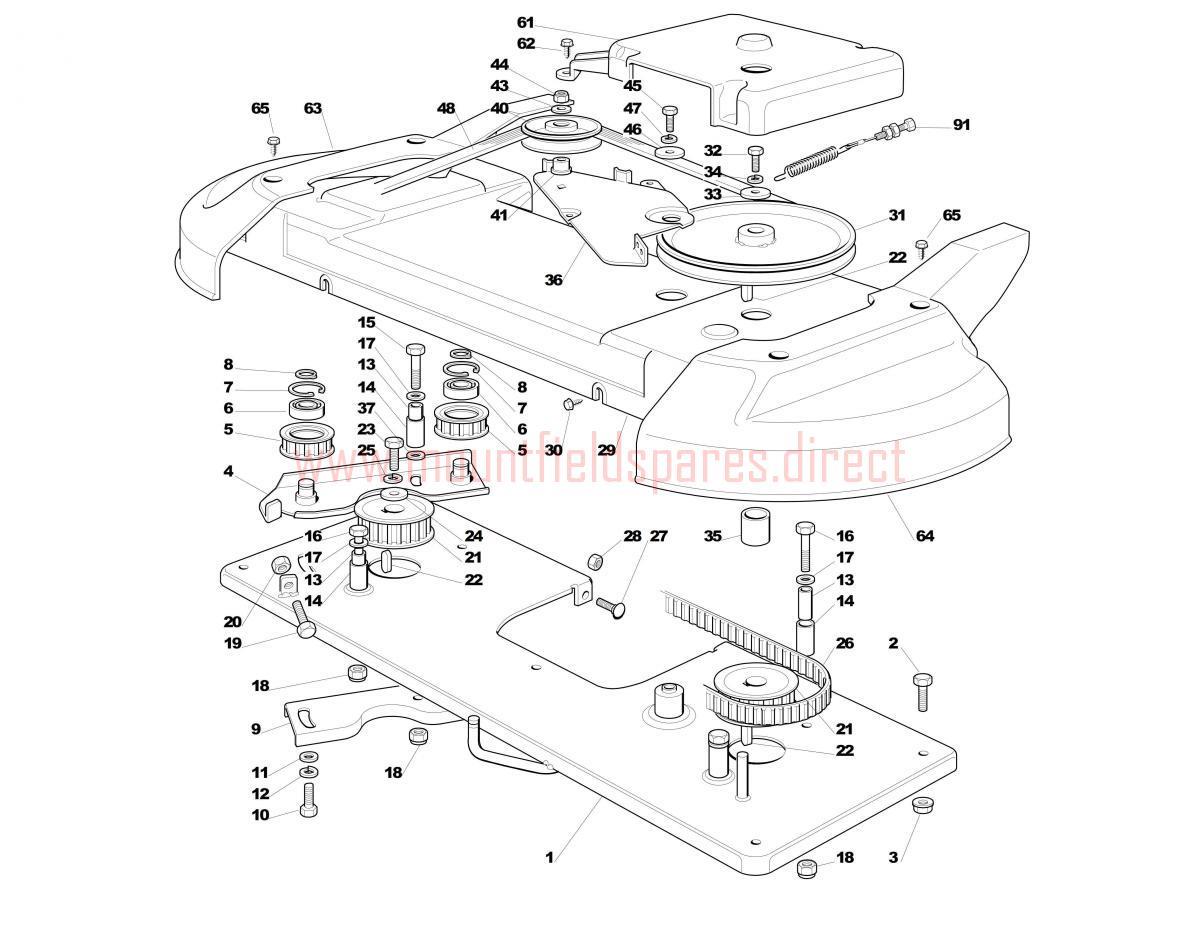

Cutting Plate (1) assembly details for Mountfield 1840H (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004382785084/2SUPPORT PLATE£24.56 Add to
005125601559/1TOOTHED PULLEY£42.53 Add to
006119216048/0BEARING£18.27 Add to
007112610800/0CIRCLIP D=35£2.06 Add to
008112609200/0CIRCLIP D=15£2.06 Add to
009325650037/1REINFORCEMENT PLATE£8.73 Add to
010112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
013125160003/2SPACER£2.18 Add to
014125038000/0BUSH£2.06 Add to
015112691700/0SCREW M8 x 55£1.91 Add to
016112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021125601560/0PULLEY£56.15 Add to
022112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
024125670007/0FIXING WASHER£2.06 Add to
026135065605/0TOOTHED BELT [102cm]£97.03 Add to
027112815200/0SCREW TTDQ M6X16£2.06 Add to
028112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
029325060128/0BELT TRANSMISSION CASE£30.77 Add to
030112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
031125601550/0BLADE SHAFT PULLEY£45.26 Add to
035125160002/1SPACER£3.96 Add to
036325318115/2BLADE BRAKE LEVER£26.18 Add to
040125601555/0PULLEY£30.26 Add to
041125160007/1SPACER£3.69 Add to
042112818900/0SCREW TTDQ M8 x 35£1.97 Add to
043112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
046112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
048135062813/1DECK DRIVE BELT B55 K (USED WITH ENGINE B&S-KAW-ST. SINGLE CYLINDER)£42.53 Add to
048135062813/1DECK DRIVE BELT B55 K (USED WITH ENGINE B&S-KAW-ST. SINGLE CYLINDER)£42.53 Add to
061125600049/0BELT GUARD£10.36 Add to
062112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
063325060113/0RIGHT BELT GUARD£13.23 Add to
064325060114/0LEFT BELT GUARD£13.49 Add to
091182004608/0BLADE ENGAGE CABLE£23.58 Add to
