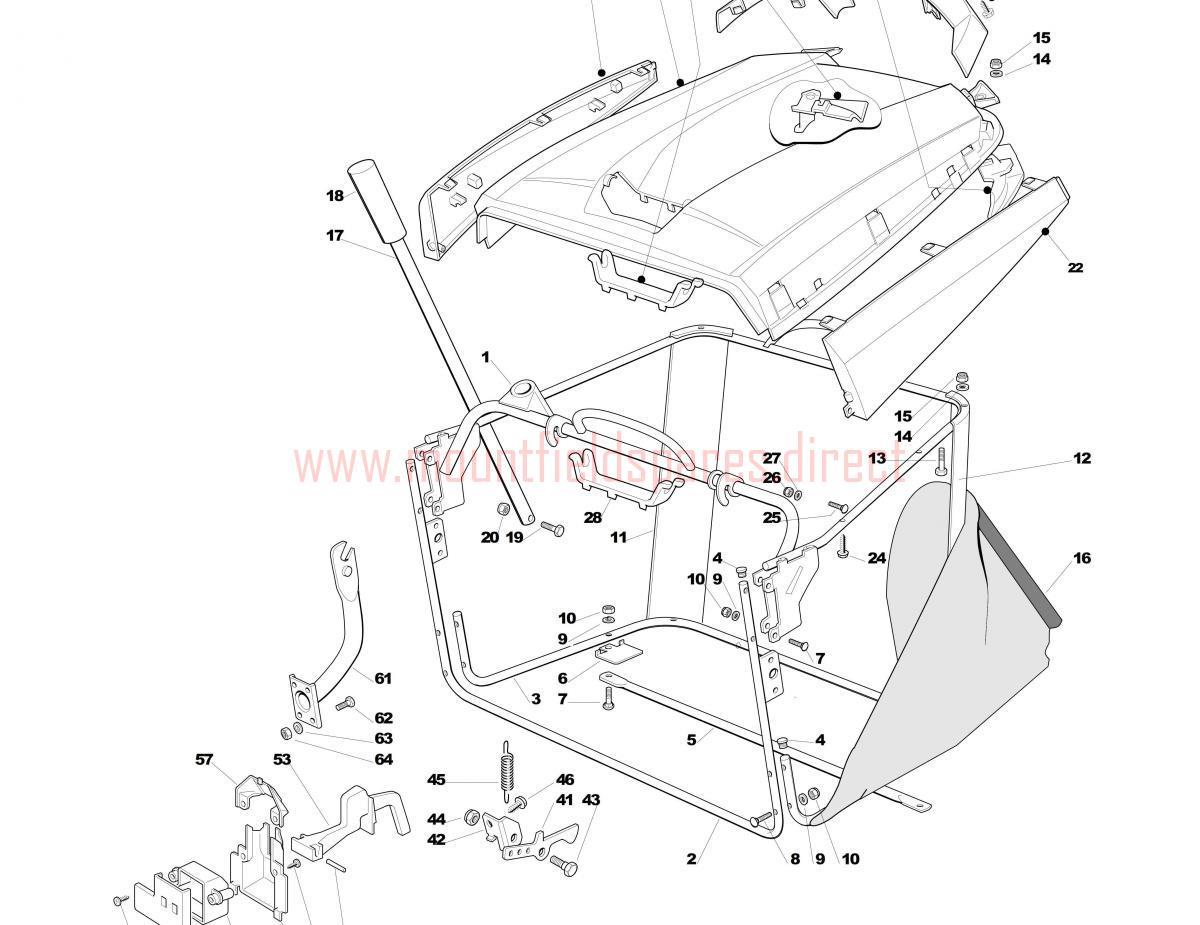

6010aM.0 assembly details for Mountfield 2040H (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382800079/1UPPER GRASSCATCHER FRAME£187.79 Add to
002382800089/1FRONT GRASSCATCHER FRAME£80.68 Add to
003325800017/0LOWER GRASSBOX FRAME (OBSOLETE)N/A
004118566116/0HANDLE CAP BLACK D=21£2.74 Add to
005382650043/0LOWER REINFORCEMENT BAR£21.14 Add to
006325547131/0STOPPING PLATE£4.10 Add to
007112815220/0SCREW M6 x 35£2.06 Add to
008112815245/0SCREW M6 x 45£2.06 Add to
009112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
010112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
011325032013/0GRASSCATCHER R/H ANGLE SUPPORT£16.22 Add to
012325032015/0GRASSCATCHER L/H ANGLE SUPPORT£16.22 Add to
013112689500/0SCREW M6 x 40£2.06 Add to
016182105980/0GRASSCATCHER BAG£147.66 Add to
017125869029/1TIPPING LEVER£28.43 Add to
018125394508/0KNOB£4.52 Add to
019112674550/0SCREW TE M6 x 30£2.06 Add to
021325110302/0GRASSCATCHER TOP [RED]£170.61 Add to
022382110254/0REAR WHEEL COVER KIT [TCP]£52.06 Add to
024112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
028325394009/0GRASSCATCHER HANDLE [BLACK]£8.32 Add to
029382110258/0ANGLE COVERS KIT [TCP]£35.68 Add to
031112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
035382180037/3GRASSCATCHER SCREW OUTFIT£57.31 Add to
041325774315/1GRASSCATCHER LOWER HOOKING CLAMP£4.37 Add to
042325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
043125510080/1CLAMP PIN£2.14 Add to
044112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
045125430210/1BRAKE SPRING£3.00 Add to
046112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
051125600041/0MICRO PROTECTION COVER£2.32 Add to
052125600042/0MICRO PROTECTION COVER£3.41 Add to
053125318124/0MICRO CONTROL LEVER£2.32 Add to
054112400030/0PIN D=3 L=30£1.91 Add to
055112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
056125600047/0MICRO SWITCH PROTECTION COVER£2.06 Add to
057125600048/0MICRO SWITCH COVER£2.06 Add to
058112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
061182774225/1GRASSCATCHER SUPPORT CLAMP£32.29 Add to
062112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
063112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
064112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
09082180045/082180045/0 Screws Outfit (OBSOLETE)N/A
