Brake And Gearbox Controls

Brake And Gearbox Controls assembly details for Mountfield 2040H (20100406) 2009 model

Parts list

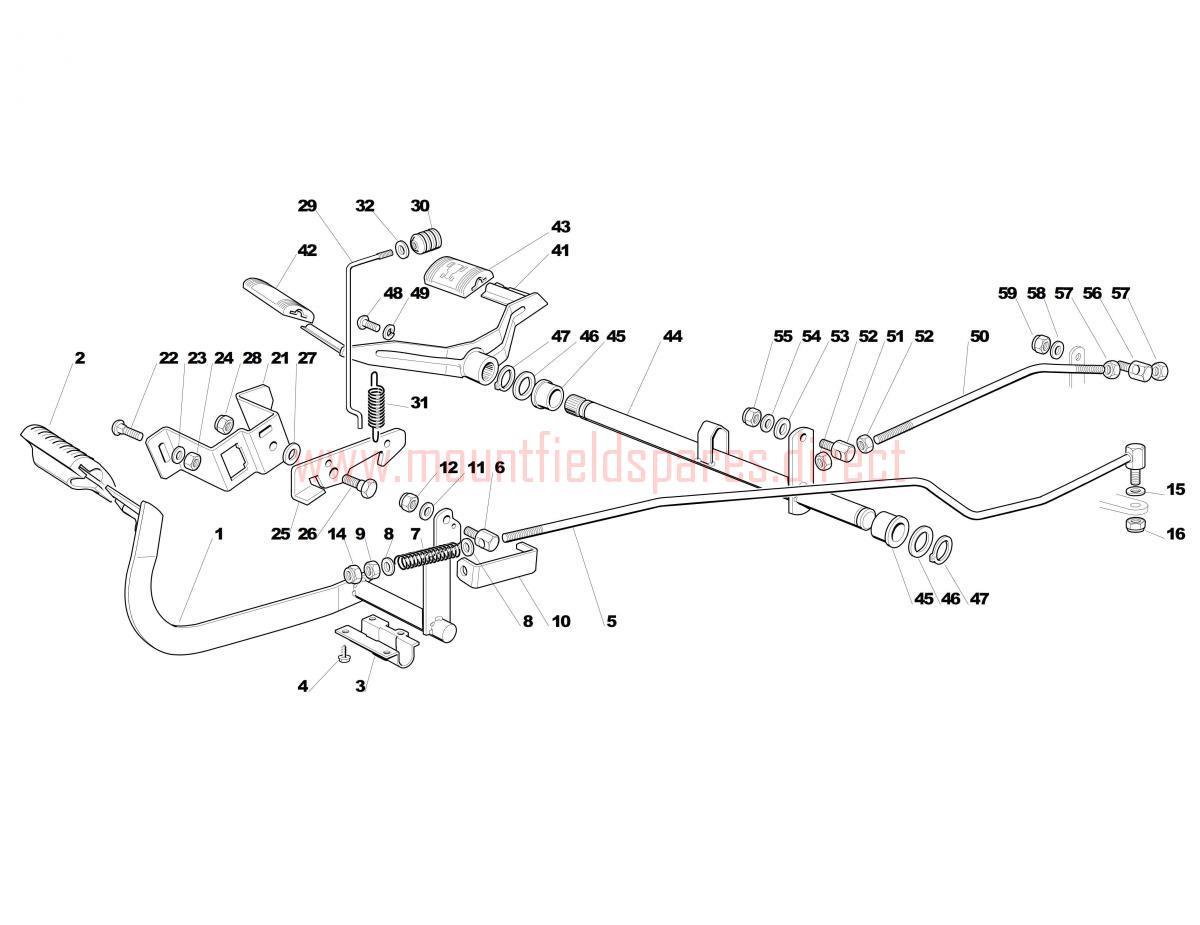

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500011/2BRAKE PEDAL£70.68 Add to
002125110267/0BRAKE PEDAL COVER£4.23 Add to
00325547081/1PLATE£8.70 Add to
004112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
005382000487/1BRAKE CONTROL LEVER£35.71 Add to
006125510052/1PIN£5.46 Add to
007125430236/0BRAKE ROD SPRING£6.79 Add to
008112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
009112295200/0HEXAGON NUT M10£1.79 Add to
010325774275/1CLAMP BRACKET£3.83 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
021325785143/1SUPPORT BRACKET£4.91 Add to
022112815210/0SCREW M6 x 20£2.06 Add to
023112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025325253001/0HOOK£4.52 Add to
026122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
027325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
029125033047/0BRAKE CONTROL ROD£7.78 Add to
030125033047/0BRAKE CONTROL ROD£7.78 Add to
031125430213/0SPRING£2.06 Add to
032112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
041382500013/0PEDAL TCH£39.80 Add to
042125110265/0CLAMP COVER£9.00 Add to
044382000481/0AXLE£70.53 Add to
045122034523/0BUSH£2.06 Add to
046322672153/0ANTI-FRICTION WASHER 20.2 x 30 x 0.8£2.06 Add to
047112609260/0CIRCLIP D=20£2.02 Add to
048112760600/0SCREW M8 x 16£1.19 Add to
04912583501/0WASHER£4.01 Add to
05025033031/0ROD£11.87 Add to
05125510054/0Pin (OBSOLETE)N/A
052112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
