Chassis

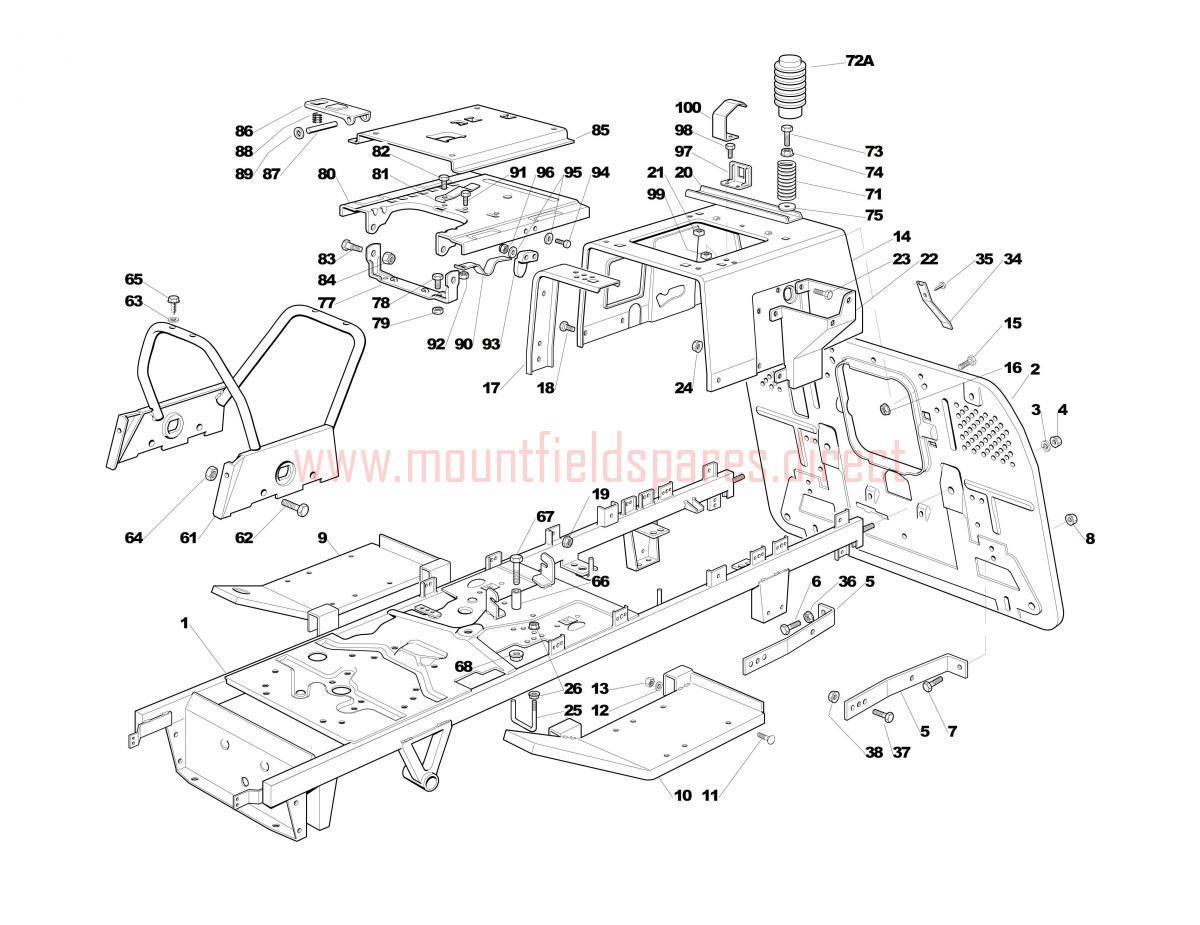

Chassis assembly details for Mountfield 2040H (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002382547051/0PLATE£145.22 Add to
003112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
004112295200/0HEXAGON NUT M10£1.79 Add to
005325774273/2REINFORCING BRACKET£9.28 Add to
006119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
007112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009382510041/2RIGHT FOOTBOARD SUPPORT£79.98 Add to
010382510043/2LEFT FOOTBOARD SUPPORT£77.93 Add to
011112815245/0SCREW M6 x 45£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014325785133/4SEAT SUPPORT£66.70 Add to
015112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
016112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
017325650065/1REINFORCING BRACKET£9.54 Add to
020325650067/1REINFORCING PLATE£6.27 Add to
021112360420/0NUT£2.06 Add to
022325785137/1SUPPORT PLATE£30.26 Add to
025125580019/1BELT GUIDE£4.37 Add to
034125430238/1SPRING£4.52 Add to
035112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
036112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
06182650041/1CENTRAL STIFFENING 2009£51.89 Add to
062112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
063112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
065112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
066122167840/0SPACER£2.06 Add to
067112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
071125430205/1SEAT SHOCK ABSORBER SPRING£6.01 Add to
073125943001/1SCREW£2.06 Add to
075112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
077382774305/0SEAT SUPPORT BRACKET£11.76 Add to
080325785149/2FIXED SEAT SUPPORT TC/TCP£27.27 Add to
081125430203/1SPRING£3.69 Add to
083122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
084112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
085325785147/2MOVING SEAT SUPPORT£38.26 Add to
08625318109/0STOP LEVER£2.86 Add to
087125510000/0PIN£1.79 Add to
088125430202/1SPRING£2.06 Add to
089112604897/0STARLOCK WASHER D=5£2.06 Add to
090125430223/2SEAT LIFTING SPRING£6.55 Add to
091112789000/0SCREW TE M5 x 12£2.06 Add to
092112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
093325060033/0SEAT SWITCH CAM£2.06 Add to
094112815050/0SCREW M5 x 25£2.06 Add to
095112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
097325755025/2SEAT SWITCH SUPPORT£6.27 Add to
098112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
099112437502/0PLATE£2.06 Add to
100325430255/0SEAT PROTECTION SPRING£4.37 Add to
72A325737002/0PROTECTION COVER£6.01 Add to
