Cutting Plate Lifting (1)

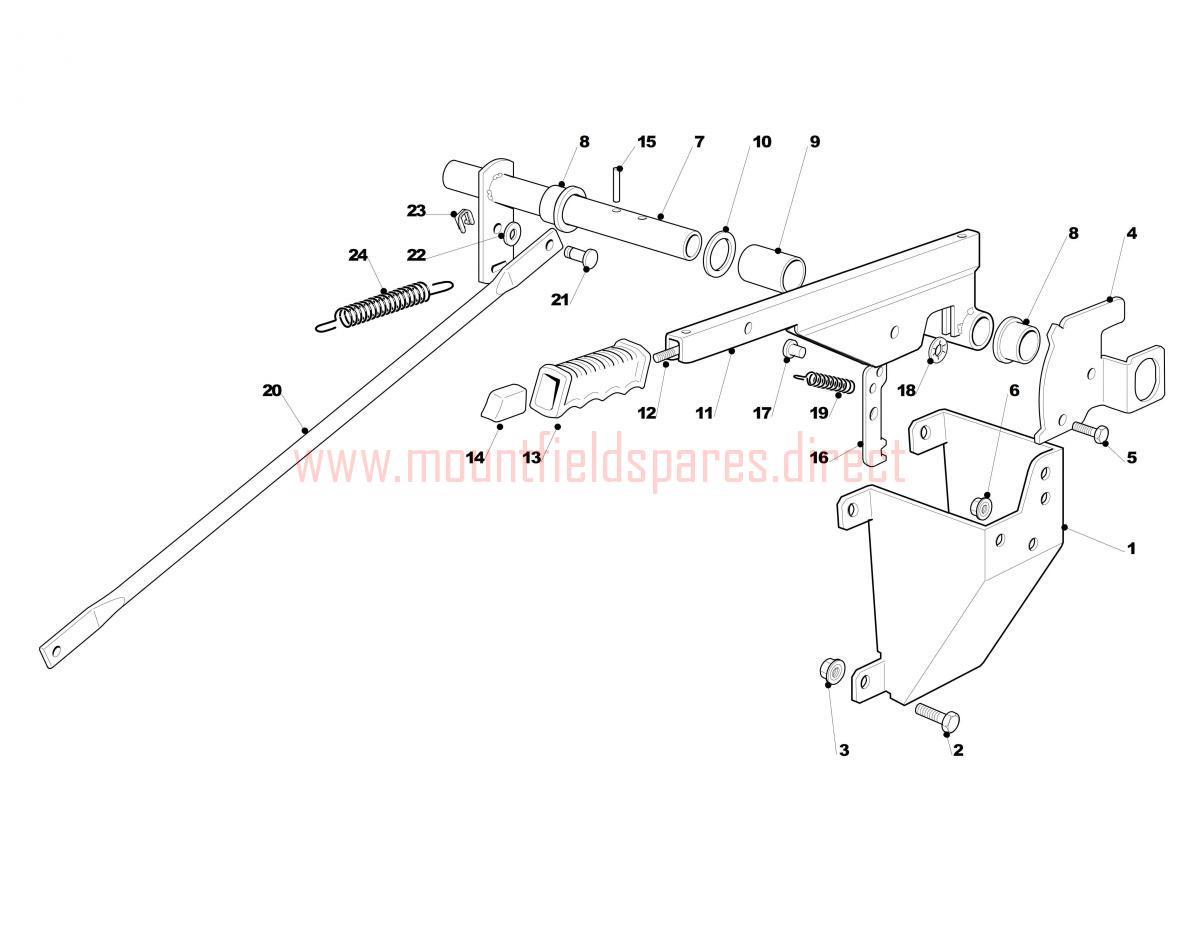

Cutting Plate Lifting (1) assembly details for Mountfield 2348H-4WD (20100406) 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325785137/1	SUPPORT PLATE	£30.26	Add to
002	112791011/0	SCREW TE M6x14 UNI 5739 ACC.8.8	£1.79	Add to
003	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
004	325735521/0	HEIGHT ADJUST PLATE [OBSOLETE]	£34.35	Add to
005	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	382000551/0	LIFTING AXLE	£24.41	Add to
008	122034523/0	BUSH	£2.06	Add to
009	125160025/1	SPACER	£6.55	Add to
010	322672153/0	ANTI-FRICTION WASHER 20.2 x 30 x 0.8	£2.06	Add to
011	382318241/0	CUTTING DECK LIFTING LEVER	£49.29	Add to
012	125033002/1	PUSH ROD	£4.52	Add to
013	125394504/1	KNOB	£2.87	Add to
014	125605000/1	BUTTON	£2.74	Add to
015	112620206/0	PIN	£1.79	Add to
016	325470901/1	DOG PLATE	£11.36	Add to
017	125510011/1	PIN	£2.06	Add to
018	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
019	125430208/1	SPRING	£3.83	Add to
020	325033077/0	ROD	£14.32	Add to
022	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
023	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
024	125430218/1	DECK LIFT SPRING	£6.14	Add to
