Engine

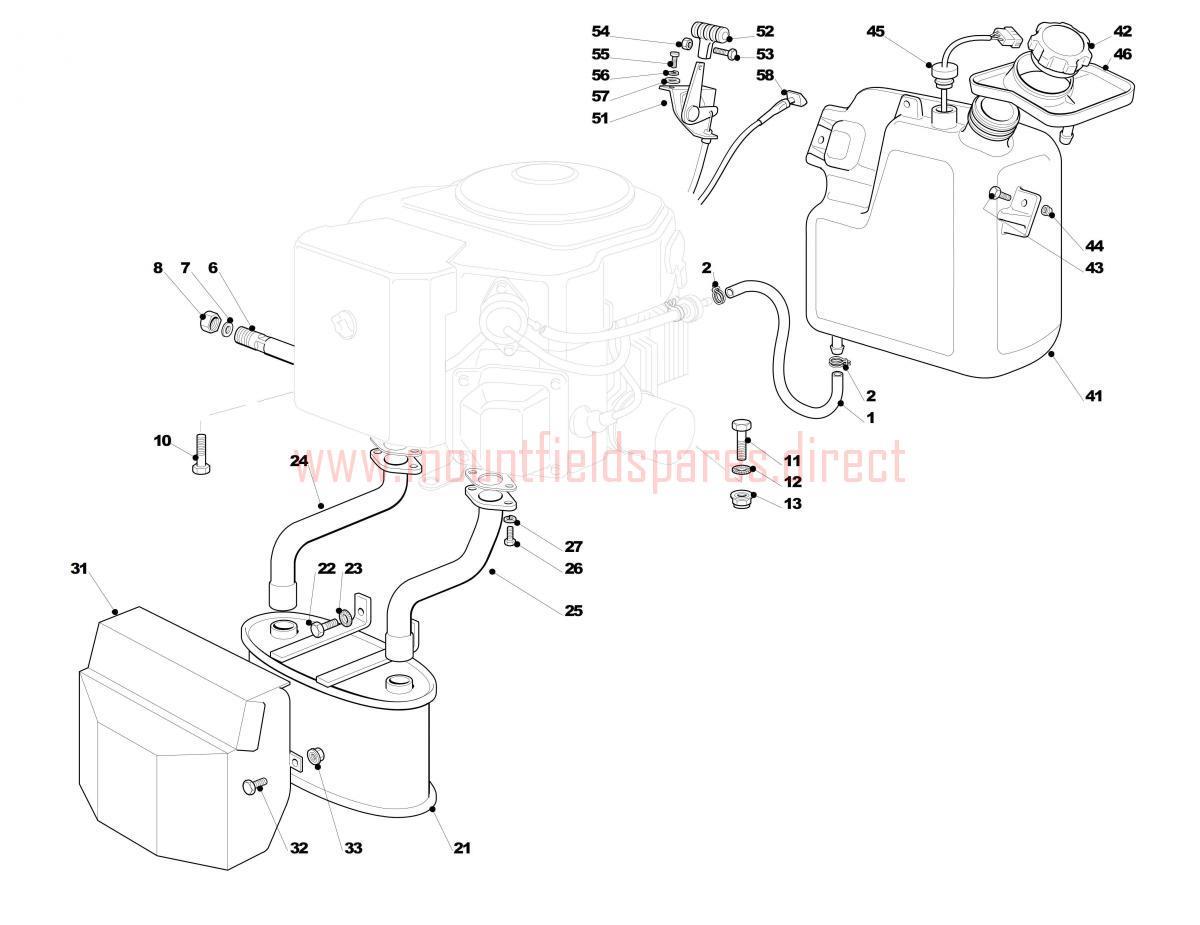

Engine assembly details for Mountfield 2348H-4WD (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325869057/0FUEL TUBE L=1000£20.72 Add to
006125598050/0OIL DISCHARGE TUBE£8.04 Add to
007118737849/0OIL DRAIN PLUG£2.47 Add to
008118401001/1OIL DRAIN SEAL£2.06 Add to
010112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
011112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
012112540260/0INNER TOOTHED WASHER M8£2.06 Add to
013112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
021182750009/0MUFFLER£163.80 Add to
022112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
024118738234/0EXHAUST PIPE RIGHT TC£43.87 Add to
025118738235/0EXHAUST PIPE LEFT TC 122£43.87 Add to
026112735530/0SCREW 5/16" x 3/4"£1.91 Add to
027112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
031382598043/1MUFFLER GUARD£84.77 Add to
032112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
041325735125/0PETROL TANK£101.22 Add to
042325795003/0FUEL TANK CAP£13.37 Add to
043112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
044112500092/0RIVET D=7£2.06 Add to
045125290002/0FUEL LEVEL INDICATOR£102.48 Add to
046325600086/0TANK GUARD£2.87 Add to
051182000213/0THROTTLE CABLE£27.09 Add to
052125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
053112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
054112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
055112788512/0SCREW M4 x 12£2.06 Add to
056112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
058125090005/0CHOKE CONTROL CABLE£19.09 Add to
