Guards And Conveyor

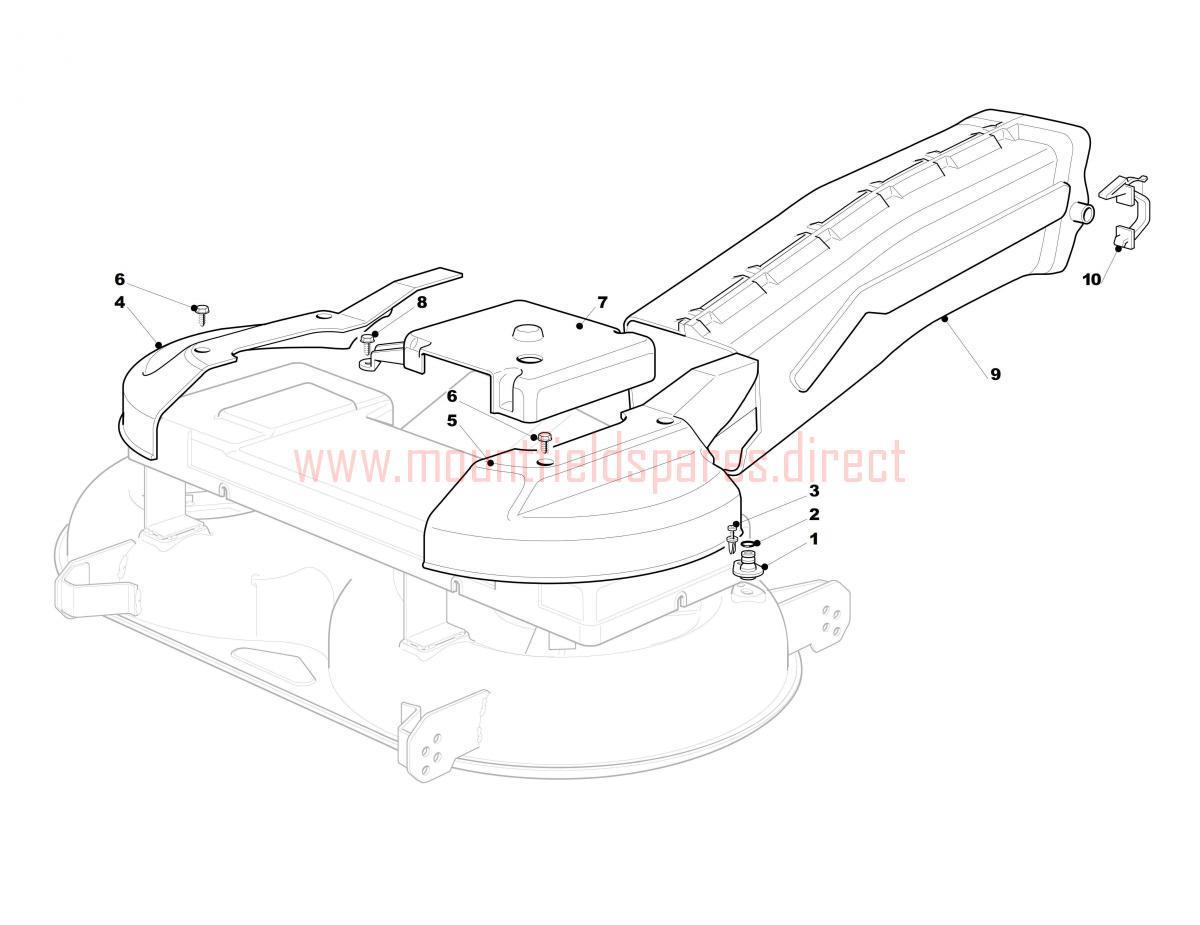

Guards And Conveyor assembly details for Mountfield 2348H-4WD (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
002119035000/0O RING 10.77 x 2.62£5.46 Add to
003112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
004125060104/0R/H GUARD [BLACK]£6.27 Add to
004325060113/0RIGHT BELT GUARD£13.23 Add to
005125060105/0L/H GUARD [BLACK]£5.60 Add to
005325060114/0LEFT BELT GUARD£13.49 Add to
006112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
007125600050/0BELT GUARD£8.04 Add to
009382108019/0DISCHARGE CHUTE£68.64 Add to
010325774373/0RELEASE CLAMP£3.41 Add to
