Optionals On Request

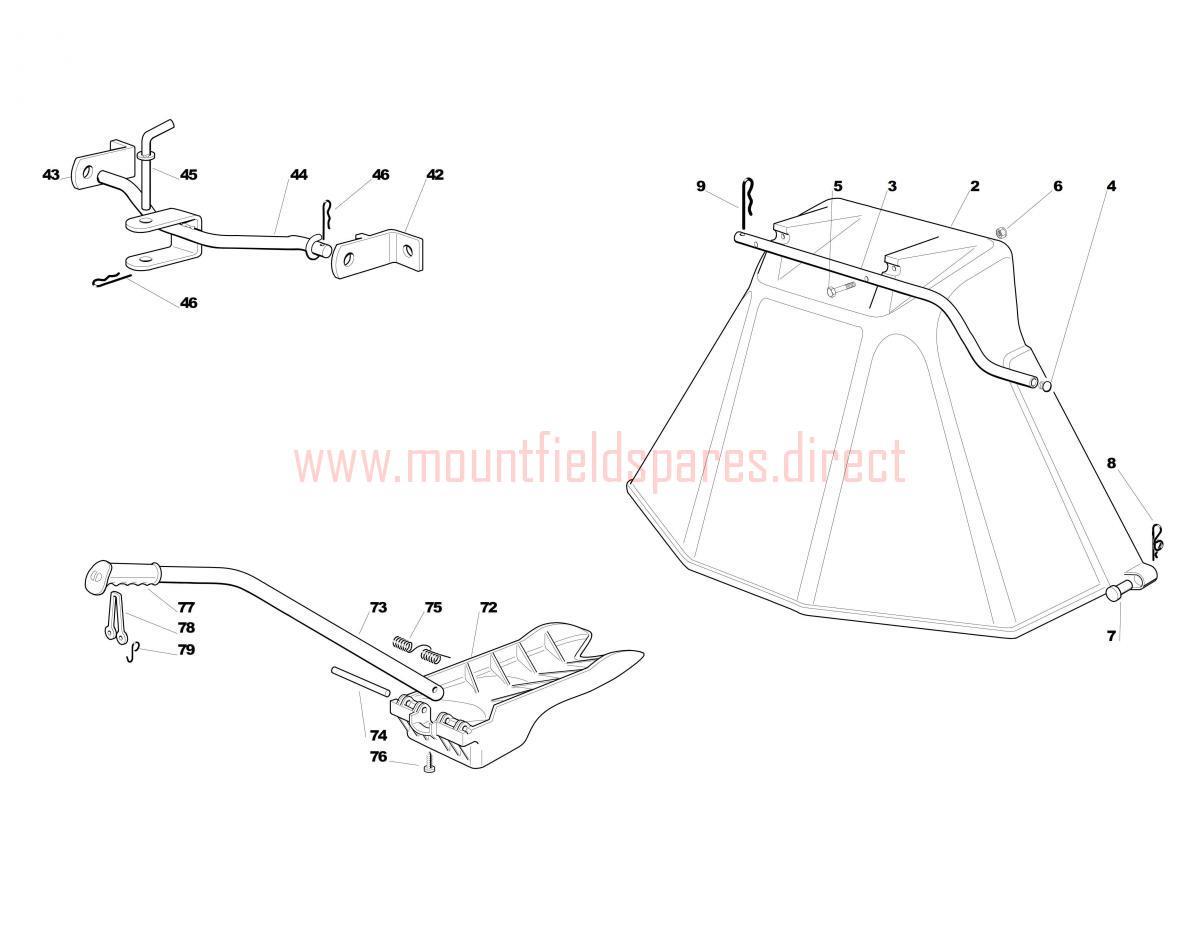

Optionals On Request assembly details for Mountfield 2348H-4WD (20100406) 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	382400003/1	DEFLECTOR GUARD	£58.73	Add to
003	325869043/0	SUPPORT ROD	£18.67	Add to
004	118566110/0	HANDLE CAP D=22 [BLACK]	£2.06	Add to
005	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	125510022/1	PIN	£3.40	Add to
008	124487998/0	R CLIP D=2	£2.06	Add to
009	124487999/0	R CLIP D=3	£1.91	Add to
042	382735502/0	BRACKET R/H	£12.00	Add to
043	325774213/0	BRACKET L/H	£5.05	Add to
044	382033115/0	SUPPORT ROD	£37.08	Add to
045	125510021/1	HITCH PIN	£11.78	Add to
072	125140092/0	MULCHING DEFLECTOR SHOE	£34.35	Add to
073	325394019/0	MULCH PLUG HANDLE	£30.00	Add to
074	125510077/0	FULCRUM PIN	£3.69	Add to
075	125430245/0	SPRING	£3.28	Add to
076	112735405/0	FLANGED SELF-TAP SCREW D=6 x 30	£2.06	Add to
077	325280000/1	HAND GRIP KIT MULCHING RO	£3.55	Add to
078	125840011/1	LOCKING RUBBER TIE	£6.27	Add to
079	125253004/0	FIXING HOOK	£2.06	Add to
