Steering

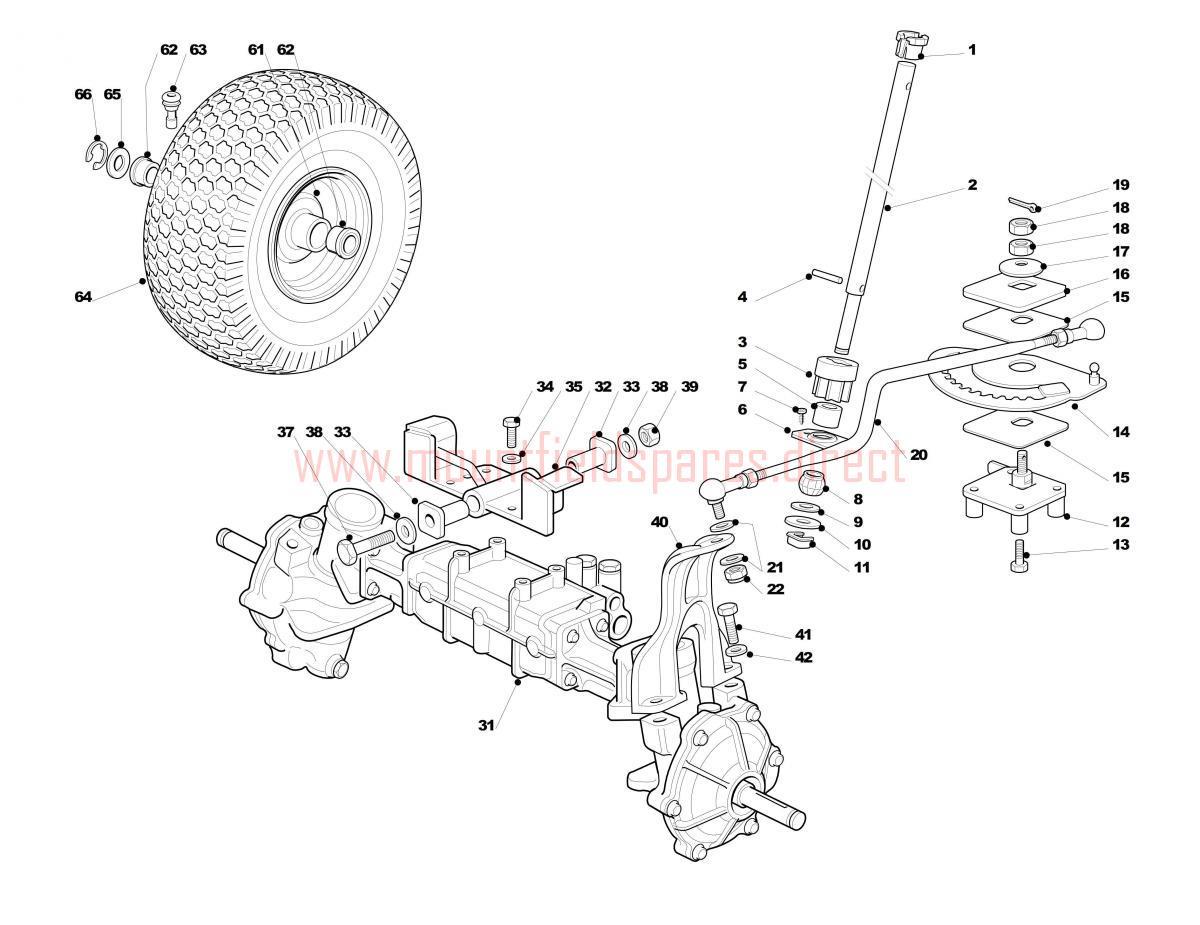

Steering assembly details for Mountfield 2348H-4WD (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125034004/0STEERING COLUMN BUSH£6.09 Add to
002125520008/0STEERING COLUMN£30.72 Add to
003125570000/2STEERING PINION£13.23 Add to
004112645710/0CYLINDRICAL PIN D=6 X 32£2.14 Add to
005325160045/0SPACER£7.11 Add to
006325785213/1STEERING JOINT SUPPORT£2.32 Add to
007112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
008325743000/0JOINT£3.00 Add to
009122671661/0WASHER ZINCED 12.4 x 20 x 1£1.79 Add to
010112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
011112436030/0PIN PLATE£1.91 Add to
012382785187/0GRASSCATC SUPP.FIX PIPE STIRR.£91.58 Add to
013112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
014382735515/0STEERING QUADRANT£86.13 Add to
015125160043/0SPACER£8.21 Add to
016125160504/0SPACER£3.55 Add to
017112369700/1SPRING WASHER (OBSOLETE) (OBSOLETE)N/A
018112295400/0HEX. NUT M14 UNI 5587 ACC. 6S ZNB£5.21 Add to
019112141418/0SPLIT PIN 3 x 20£1.76 Add to
020382000560/0STEERING ROD£94.40 Add to
021112522050/0WASHER M12 16 x 28 x 2.5£2.14 Add to
022112155700/0NUT M14£2.87 Add to
031118400974/0HYDRO TRANSAXLE KXH7N£2,310.04 Add to
032382547057/0PLATE 2009£138.38 Add to
033125040633/0BUSH£15.59 Add to
034112760560/0HEX-HEAD SOCKET SCREW M10 X 25£5.21 Add to
035112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
037112695900/0HEX-HEAD SCREW M16X130 UNI 5737 ACC. 10.£10.09 Add to
038112521395/0WASHER M16 17 x 30 x 3£2.06 Add to
039112295801/0HEXAGON NUT M16£2.06 Add to
040325774393/0STEERING WHEEL BRACKET£66.76 Add to
041112692600/0SCREW M12 X 60 UNI5737 STEEL 8.8£5.21 Add to
061182000601/1FRONT WHEEL RIM£92.95 Add to
062125122200/2WHEEL BEARING D=20£12.05 Add to
063125950000/0PNEUMATIC VALVE£5.73 Add to
064337241TYRE 16 x 6.50-8 KENDA SUPER TURF£47.69 Add to
065125670005/2SPINDLE WASHER£3.89 Add to
066112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
