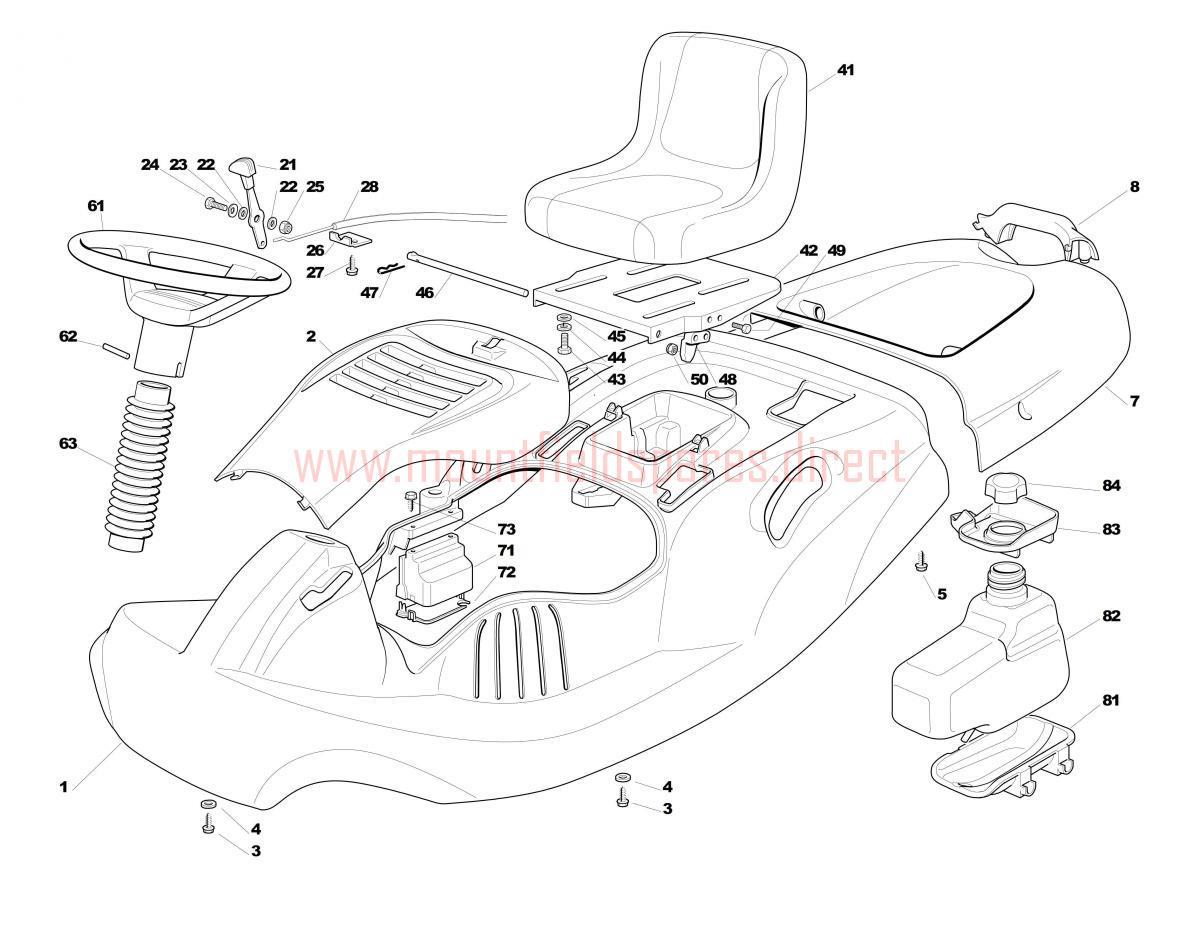

1002M.09 assembly details for Mountfield 725M (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001327110355/1WHEELS COVER EL63 [RED]£227.14 Add to
002127110374/0ENGINE COVER [BLACK]£48.81 Add to
003112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
004112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
005112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
007327110357/1GRASSCATCHER COVER EL 63 RED£66.92 Add to
008127394000/0GRASSCATCHER HANDLE£3.72 Add to
021381007280/2THROTTLE LEVER£3.56 Add to
023112530060/0SPRING WASHER M6£1.79 Add to
024112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
025112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
026322981467/0FIXING CABLE PLATE£2.06 Add to
027112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
028184000252/0THROTTLE CABLE£15.84 Add to
028184000253/1THROTTLE CABLE£9.54 Add to
041125722471/0SEAT MOUNTFIELD£197.87 Add to
042327546039/1SEAT SUPPORT PLATE£19.31 Add to
043112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
044112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
045112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
046127864052/1SEAT ROD£7.10 Add to
047124487997/0SPRING CLIP D=1.8£2.06 Add to
048327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
049112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
050112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
061127961232/0STEERING WHEEL [BLACK]£43.86 Add to
062112620305/0SPIROL PIN 6 x 55£1.91 Add to
071127600119/0PC BOARD UPPER GUARD£3.28 Add to
072127600118/0PC BOARD LOWER GUARD (OBSOLETE) (OBSOLETE)N/A
073112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
081127787057/0PLASTIC TANK SUPPORT - NLA£4.10 Add to
082127733002/1FUEL TANK£34.35 Add to
083127600113/0FUEL TANK GUARD£2.06 Add to
084BS-692046FUEL CAP OHV£10.71 Add to
