Engine B&S

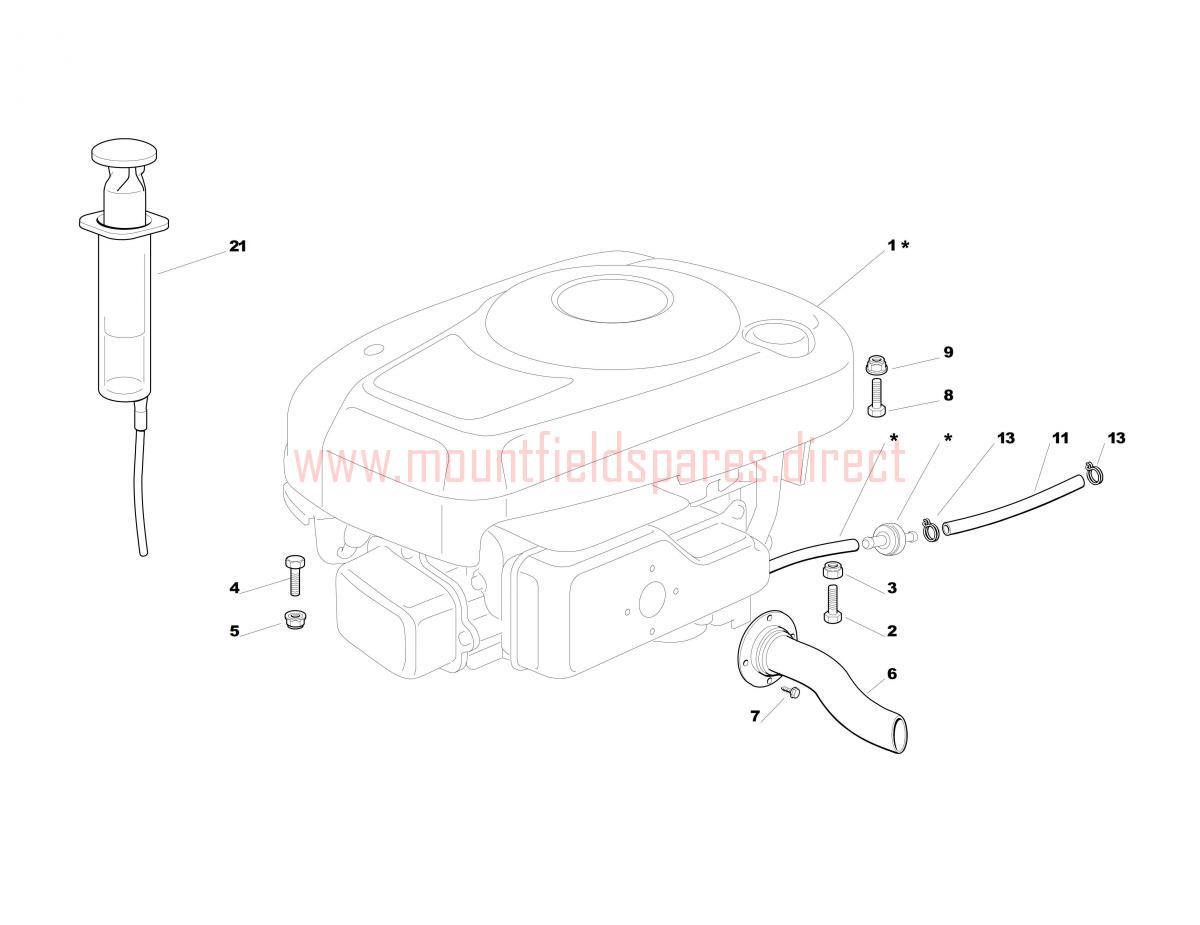

Engine B&S assembly details for Mountfield 725M (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
005112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
00684869053/0EXHAUST PIPE ASS.Y 2009£71.45 Add to
007112735111/0FLANGED TAPPING SCREW 4.2 x 9.5 WZ£2.18 Add to
008119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
011325869035/1CONNECTING TUBE£9.82 Add to
021118718000/0OIL EMPTYING SYRINGE£16.22 Add to
