Optionals On Request

Optionals On Request assembly details for Mountfield R25M (20100406) 2009 model

Parts list

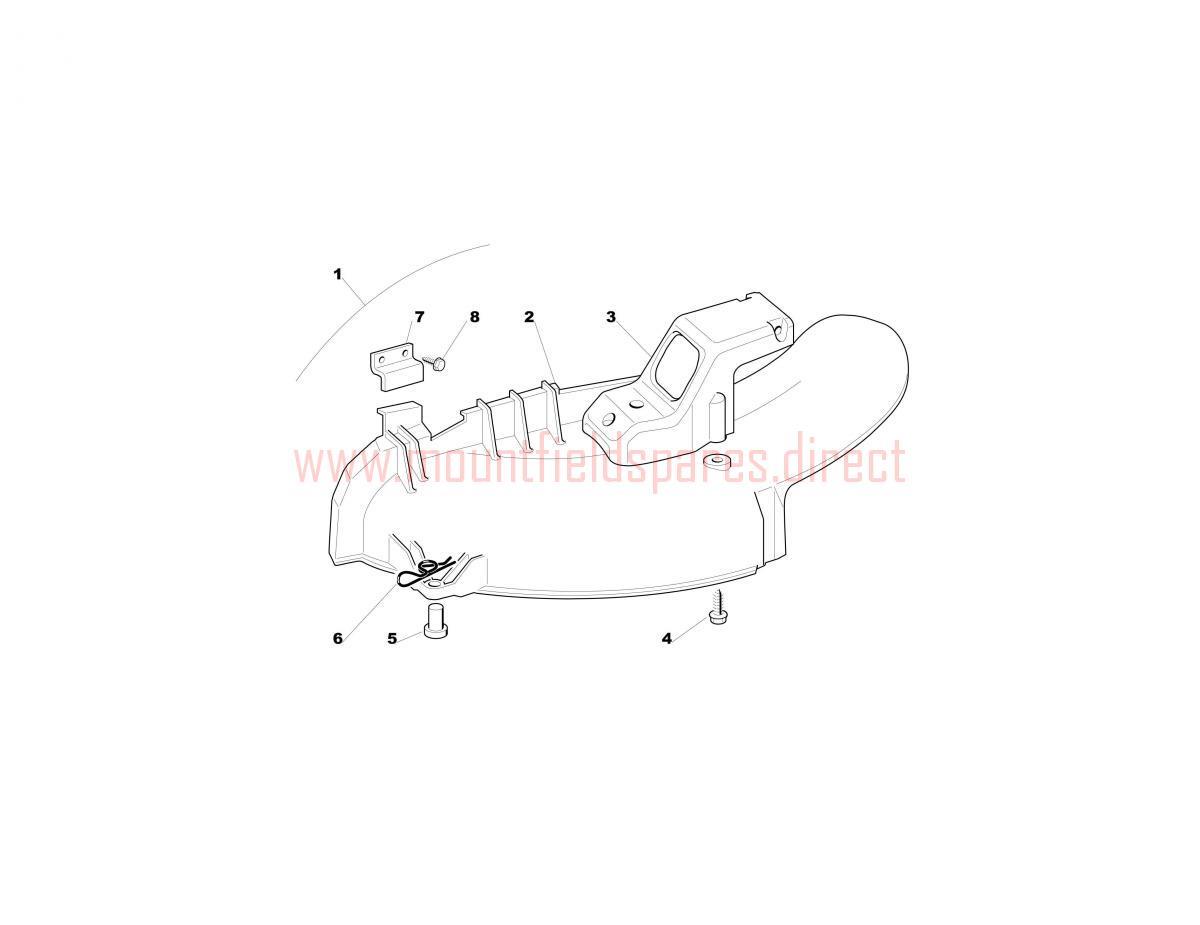

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001299900035/0ASS. KIT MULCHING RIDER 63 CM£58.41 Add to
002327140052/0MULCHING SHOE£18.61 Add to
003327230201/0FULCRUM BLOCK£4.64 Add to
004112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
005125510022/1PIN£3.40 Add to
006124487998/0R CLIP D=2£2.06 Add to
007327772139/0CLAMP BRACKET£4.35 Add to
008112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
