Transmission

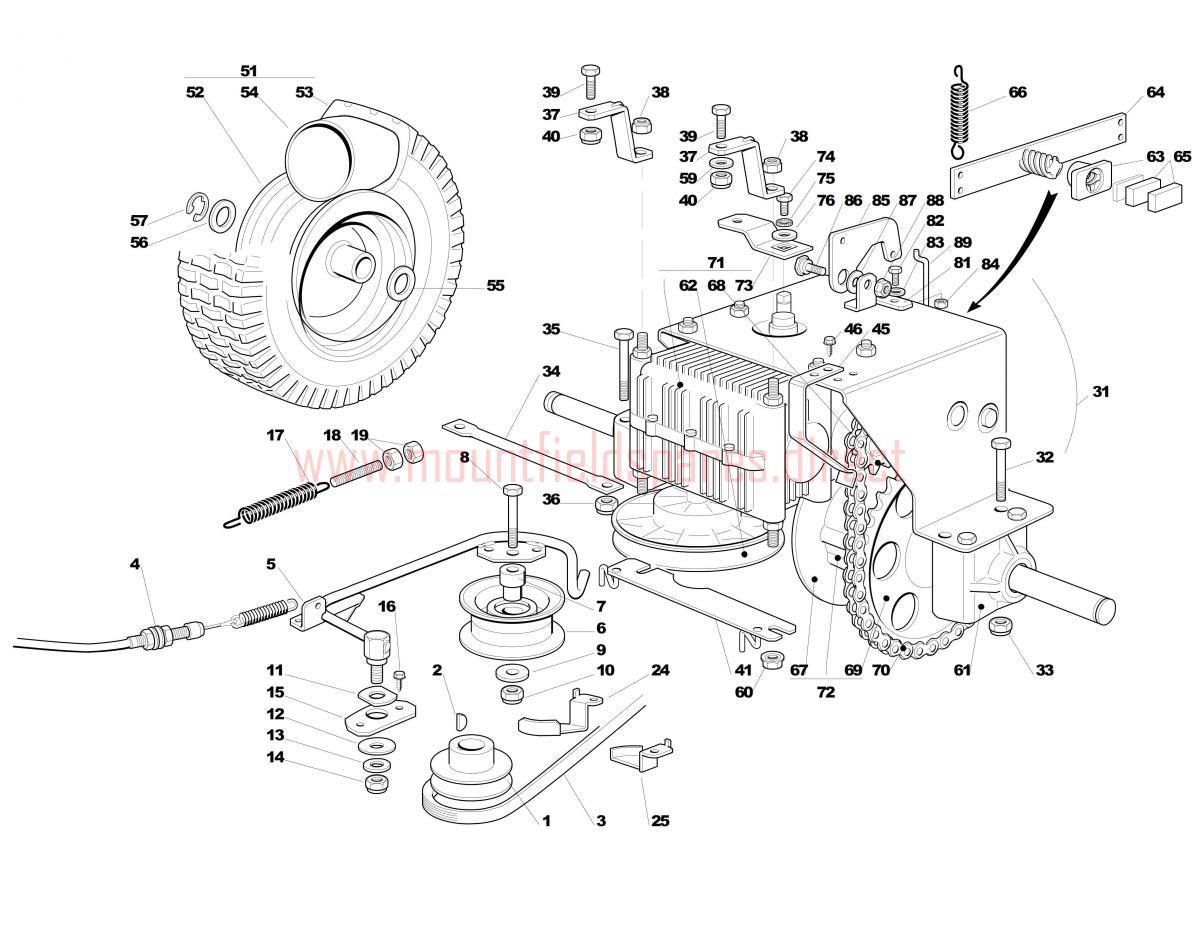

Transmission assembly details for Mountfield R25M (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001127604006/2ENGINE PULLEY (OBSOLETE) (OBSOLETE)N/A
002112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
003135061406/0TRANSMISSION BELT X13 LP 966£41.88 Add to
004384207103/2DRIVE ENGAGE CABLE£17.26 Add to
005384317077/0DRIVE STUB AXLE LEVER (OBSOLETE) (OBSOLETE)N/A
006127604007/0GUIDE PULLEY£52.06 Add to
007127047007/0GUIDE PULLEY BUSH£2.87 Add to
008112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
009112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011327670054/0WASHER£10.09 Add to
012112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
013325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
015327546029/0GUIDE PULLEY FIXING PLATE£4.83 Add to
016112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
017125430219/1SPRING£3.96 Add to
018125840005/0TIE ROD£2.87 Add to
019112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
024327546041/0RIGHT BELT GUIDE£5.45 Add to
025327546043/0LEFT BELT GUIDE£5.05 Add to
031318400970/1TRANSAXLE ASSEMBLY EL 63£866.15 Add to
032112692050/0HEX-HEAD SCREW£1.91 Add to
033112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
034327840053/0LOWER TIE ROD 2009£9.12 Add to
035125943001/1SCREW£2.06 Add to
037327650119/0TRANSAXLE GROUP FRONT REINFORC 2009£7.19 Add to
039112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
040112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
041384250051/0REAR BELT GUIDE ASS.Y£18.99 Add to
045384394830/0SUPPORT BRACKET£5.29 Add to
046112735104/0SELF-TAP SCREW 5.5 x 13£2.06 Add to
051184680057/1REAR WHEEL ASSEMBLY 13 x 5.00 x 6£151.32 Add to
052184044013/0REAR WHEEL RIM 6" x 4.5"£57.52 Add to
053127590059/0TYRE 13 x 5.00 - 6£52.91 Add to
054127590057/0REAR WHEEL INNER TUBE£14.05 Add to
055112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
056125670005/2SPINDLE WASHER£3.89 Add to
057112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
061119700061/0BUSH£14.66 Add to
062119700050/0PULLEY D=136£18.68 Add to
063119700051/0SCREW EL63 2009£32.66 Add to
064119700053/0BRAKE LEVER c/w SCREW£21.02 Add to
065119700052/0BRAKE PAD£35.71 Add to
066119700048/0SPRING£3.83 Add to
067119700054/0BRAKE DISC£34.35 Add to
068119700049/0CHAIN PINION£11.59 Add to
069119700055/0SPROCKET£21.75 Add to
070119700047/0CHAIN 12.7 50M£61.60 Add to
071118400972/0GEARBOX ASSEMBLY (OBSOLETE)N/A
072118400971/1DIFFERENTIAL£347.77 Add to
07327315105/027315105/0 Gearshift (OBSOLETE)N/A
074112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
075112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
076322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
08127753079/0BRAKE REAR ANGLE BRACKET EL 6 2009 (OBSOLETE)N/A
082112791200/1SCREW TE M6 x 16£1.79 Add to
083112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
084112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
085327772145/0BRAKE REAR CLAMP EL 63 2009£7.19 Add to
086122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
089127034076/0BRAKE CONTROL ROD EL 63 2009£7.19 Add to
