Engine

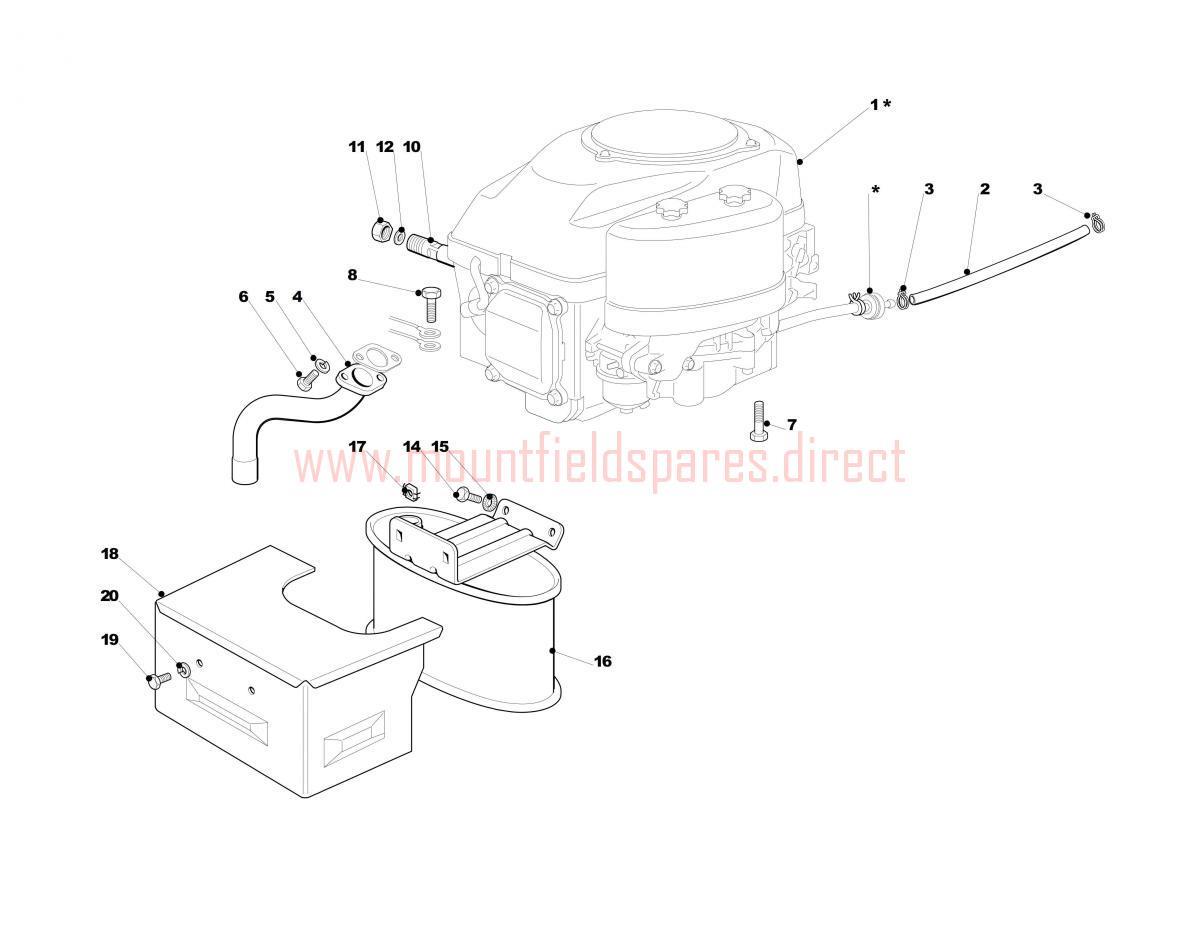

Engine assembly details for Mountfield T35M (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869057/0FUEL TUBE L=1000£20.72 Add to
004118738231/1EXHAUST PIPE£22.35 Add to
005112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
006112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
007112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
008112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
010127598060/0OIL DRAIN EXTENSION£8.52 Add to
011118737849/0OIL DRAIN PLUG£2.47 Add to
012118401001/1OIL DRAIN SEAL£2.06 Add to
014112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
015112540260/0INNER TOOTHED WASHER M8£2.06 Add to
016182750010/0MUFFLER£117.75 Add to
017112360425/0SQUARE NUT M8£2.18 Add to
018382598039/0MUFFLER GUARD£65.50 Add to
019112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
