Body

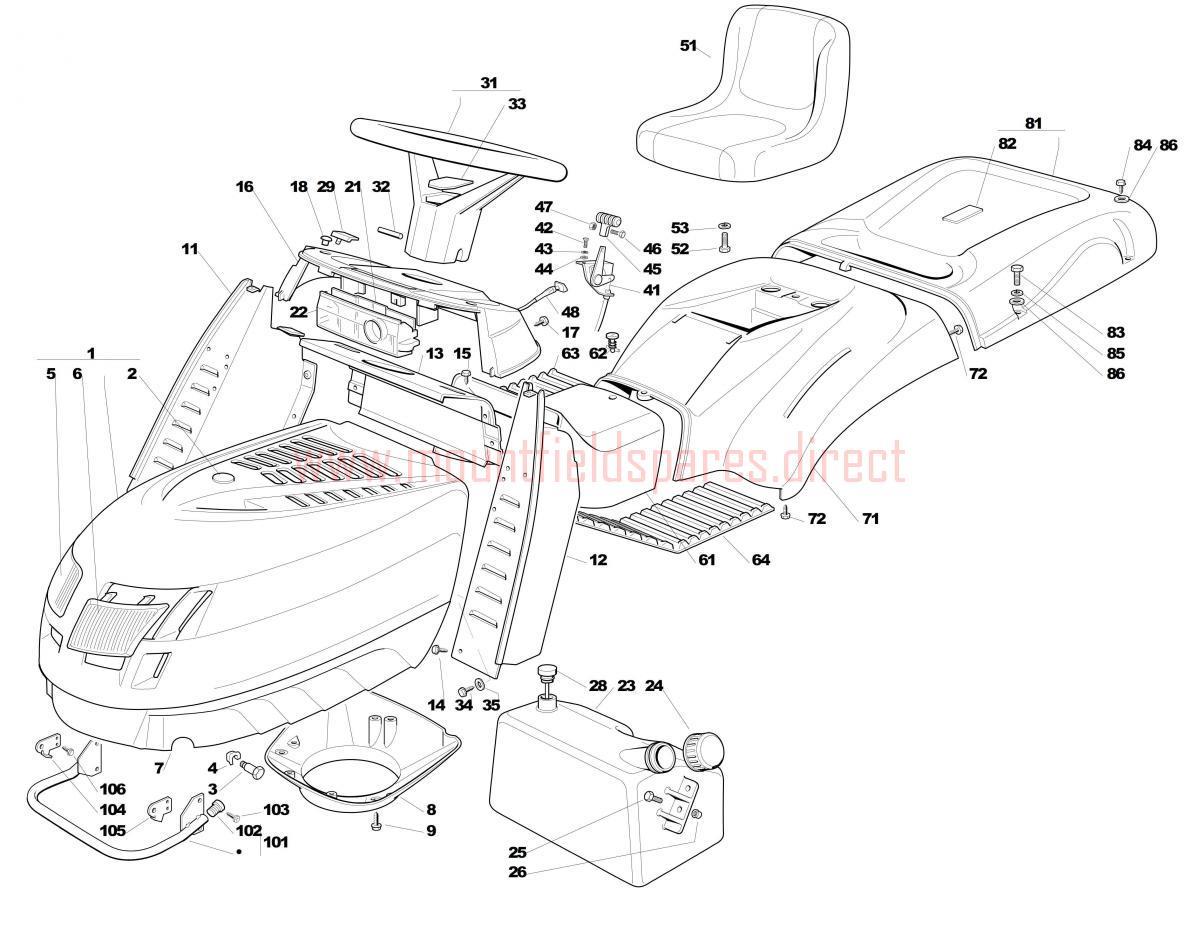

Body assembly details for Mountfield T40H (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076949/0ENGINE HOOD [GREY]£211.50 Add to
00225547183/025547183/0 Plate Grey (OBSOLETE)N/A
003125510023/1PIN£3.69 Add to
004112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
005125410860/0RIGHT HEADLIGHT£10.42 Add to
006125410861/0LEFT HEADLIGHT£10.42 Add to
007125076808/0LOWER ENGINE HOOD£45.64 Add to
008325108028/0LONG AIR CONVEYOR£8.14 Add to
009112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
011382785022/8RIGHT DASHBOARD SUPPORT£31.63 Add to
012382785021/7LEFT DASHBOARD SUPPORT£31.63 Add to
013382785137/0CENTRAL DASHBOARD SUPPORT£16.16 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
016125120153/1BLACK DASHBOARD£39.80 Add to
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
021125600009/0PROTECTIVE COVER£3.00 Add to
022125600051/0PC BOARD PROTECTION COVER£10.49 Add to
023125735110/3FUEL TANK [7 LITRES]£53.42 Add to
023325735111/3FUEL TANK£54.79 Add to
024125795000/1FUEL TANK CAP£8.04 Add to
025112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
026112500092/0RIVET D=7£2.06 Add to
028125290000/0FUEL LEVEL INDICATOR£56.15 Add to
029125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
031125290000/0FUEL LEVEL INDICATOR£56.15 Add to
032112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
033325120231/0STEERING WHEEL CAP£3.41 Add to
034112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
035112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
041182000212/0THROTTLE CABLE£24.75 Add to
042112788512/0SCREW M4 x 12£2.06 Add to
043112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
045125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
046112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
047112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
051125722471/0SEAT MOUNTFIELD£197.87 Add to
052112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
053112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
061325110356/0COVER (hydro), GREY£33.13 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063125110270/0RIGHT FOOTBOARD COVER£26.93 Add to
064125110260/2LEFT FOOTBOARD COVER£24.95 Add to
071325109765/0WHEELS COVER (GREY)£117.62 Add to
072112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
082325547200/0INJECTION PLATE GREY£5.74 Add to
083112674701/0SCREW TE M6 x 35£2.06 Add to
084112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
085112582101/0WASHER M6£2.06 Add to
086112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
101382869006/1MUFFLER TUBE GUARD£34.35 Add to
102118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547089/1RIGHT PLATE£4.52 Add to
105325547091/1LEFT PLATE£4.52 Add to
106112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
