Electrical Parts

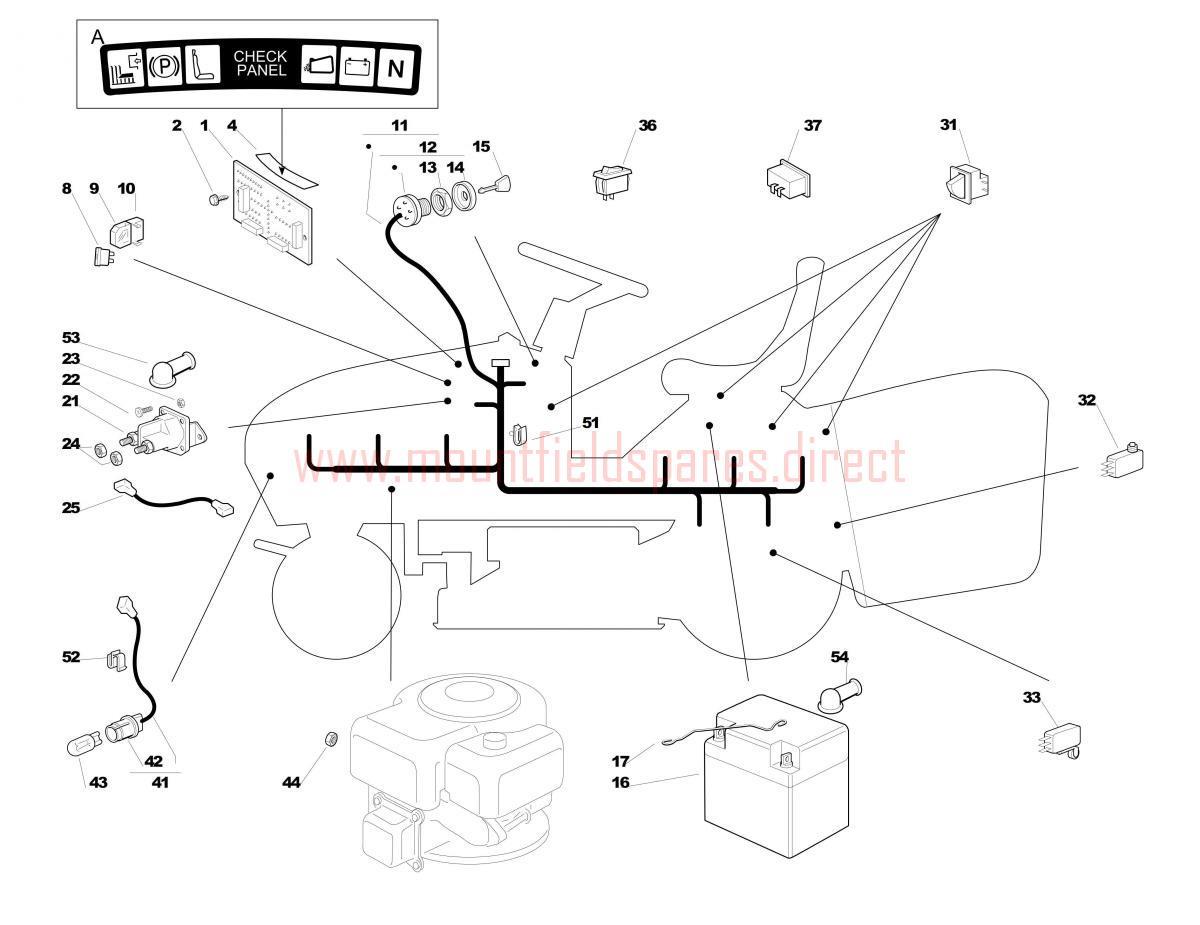

Electrical Parts assembly details for Mountfield T40H (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125722412/1PC BOARD [8 LED][ THIS ITEM CANNOT BE RETURNED ]£109.10 Add to
002112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
004125420004/0CHECK CONTROL PANNEL TC£9.68 Add to
008133340036/0FUSE 25A£2.06 Add to
008133340040/0FUSE 10A£2.47 Add to
009133215000/0FUSE HOLDER COVER£3.83 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011182040137/0WIRING HARNESS TC2000£763.39 Add to
012118450065/1STARTING SWITCH£32.99 Add to
013118400861/0LOCKING RING£5.32 Add to
014118565351/0LOCKING RING COVER£6.14 Add to
015118210016/1IGNITION KEY [PAIR]£13.17 Add to
016118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
017125430230/0SPRING ROD£3.55 Add to
021118736113/0SOLENOID£39.22 Add to
022112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
023112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0249743-5121-32LOCK NUT 5/16"£1.79 Add to
025125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
031119410622/1MICRO SWITCH N.O.£7.10 Add to
032119410605/1MICRO SWITCH£36.77 Add to
033119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
035125065026/0CABLE£9.00 Add to
036118450084/0HEADLIGHT SWITCH£4.35 Add to
0379400-0384-01HOUR METER£94.31 Add to
041182040070/0HEADLIGHTS CABLE£16.46 Add to
041182040073/0HEADLIGHTS CABLE£18.68 Add to
043118459100/0HEADLIGHT BULB£2.47 Add to
044112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
051133320506/0CABLE CLIP£1.79 Add to
052133320504/0CABLE CLIP£2.06 Add to
053118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
