Grasscatcher

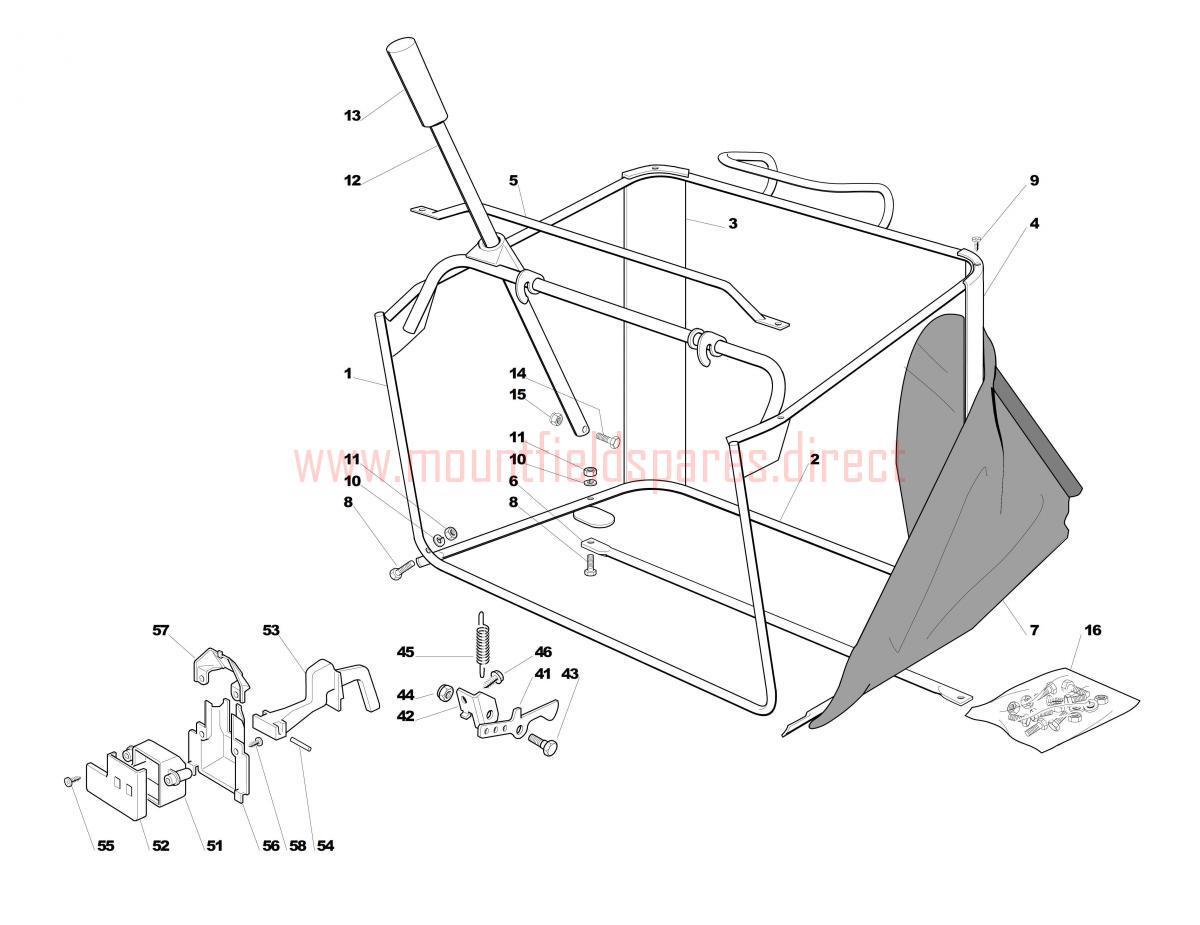

Grasscatcher assembly details for Mountfield T40H (20100406) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382800051/0UPPER GRASSCATCHER FRAME£186.22 Add to
002382800002/2LOWER GRASSCATCHER FRAME£34.35 Add to
003325032001/1RIGHT ANGULAR SUPPORT£15.69 Add to
004325032002/1LEFT ANGULAR SUPPORT£15.69 Add to
005382394001/2FRONT GRASSCATCHER HANDLE£13.08 Add to
006382650038/0REINFORCEMENT BAR£12.30 Add to
007182106000/2GRASSCATCHER BAG TC 102-122cm£120.90 Add to
008112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
009112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
010112582101/0WASHER M6£2.06 Add to
011112292100/0HEXAGON NUT M6£1.47 Add to
012125869029/1TIPPING LEVER£28.43 Add to
013125394508/0KNOB£4.52 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
016382180027/1GRASSCATCHER SCREW OUTFIT£12.68 Add to
041325774315/1GRASSCATCHER LOWER HOOKING CLAMP£4.37 Add to
042325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
043125510080/1CLAMP PIN£2.14 Add to
044112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
045125430210/1BRAKE SPRING£3.00 Add to
046112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
051125600041/0MICRO PROTECTION COVER£2.32 Add to
052125600042/0MICRO PROTECTION COVER£3.41 Add to
053125318124/0MICRO CONTROL LEVER£2.32 Add to
054112400030/0PIN D=3 L=30£1.91 Add to
055112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
056125600047/0MICRO SWITCH PROTECTION COVER£2.06 Add to
057125600048/0MICRO SWITCH COVER£2.06 Add to
058112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
061182774225/1GRASSCATCHER SUPPORT CLAMP£32.29 Add to
062112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
063112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
064112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
