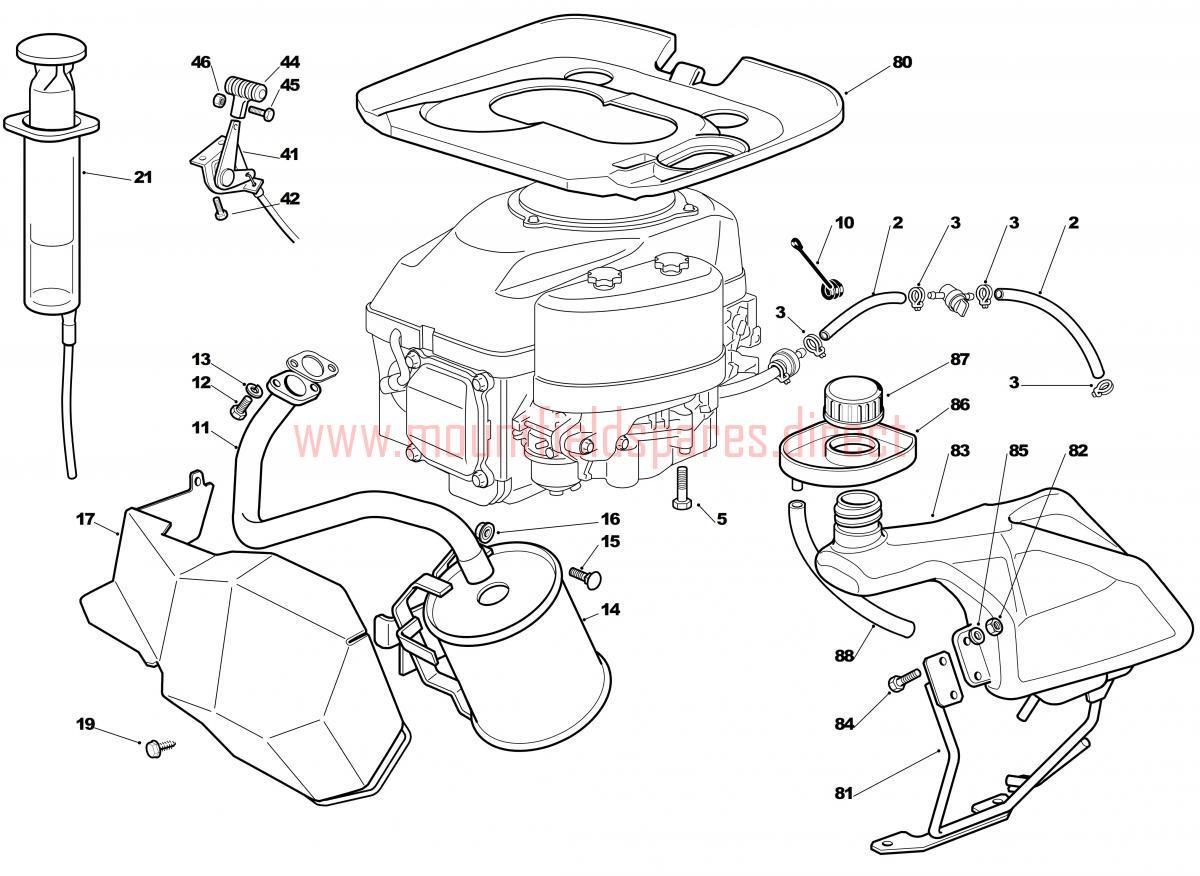

2005a_10 assembly details for Mountfield 1228 H (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869035/1CONNECTING TUBE£9.82 Add to
005112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
011118738240/0EXHAUST PIPE£57.52 Add to
012112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
013112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
014118716133/0MUFFLER£156.99 Add to
015112815210/0SCREW M6 x 20£2.06 Add to
016112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
017384598093/0MUFFLER GUARD£124.29 Add to
019112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
020112437504/0FIXING PLATE£2.06 Add to
021118718000/0OIL EMPTYING SYRINGE£16.22 Add to
041184000250/1THROTTLE CABLE£26.18 Add to
042125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
044125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
045112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
046112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
080327110325/2ENGINE COVER [BLACK]£20.45 Add to
081384783049/0FUEL TANK SUPPORT£101.13 Add to
082112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
083327733007/0FUEL TANK£75.23 Add to
084112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
085112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
086327600061/2FUEL TANK GUARD£4.10 Add to
087125795000/1FUEL TANK CAP£8.04 Add to
088325869014/1FUEL PIPE L=410£7.92 Add to
