Body

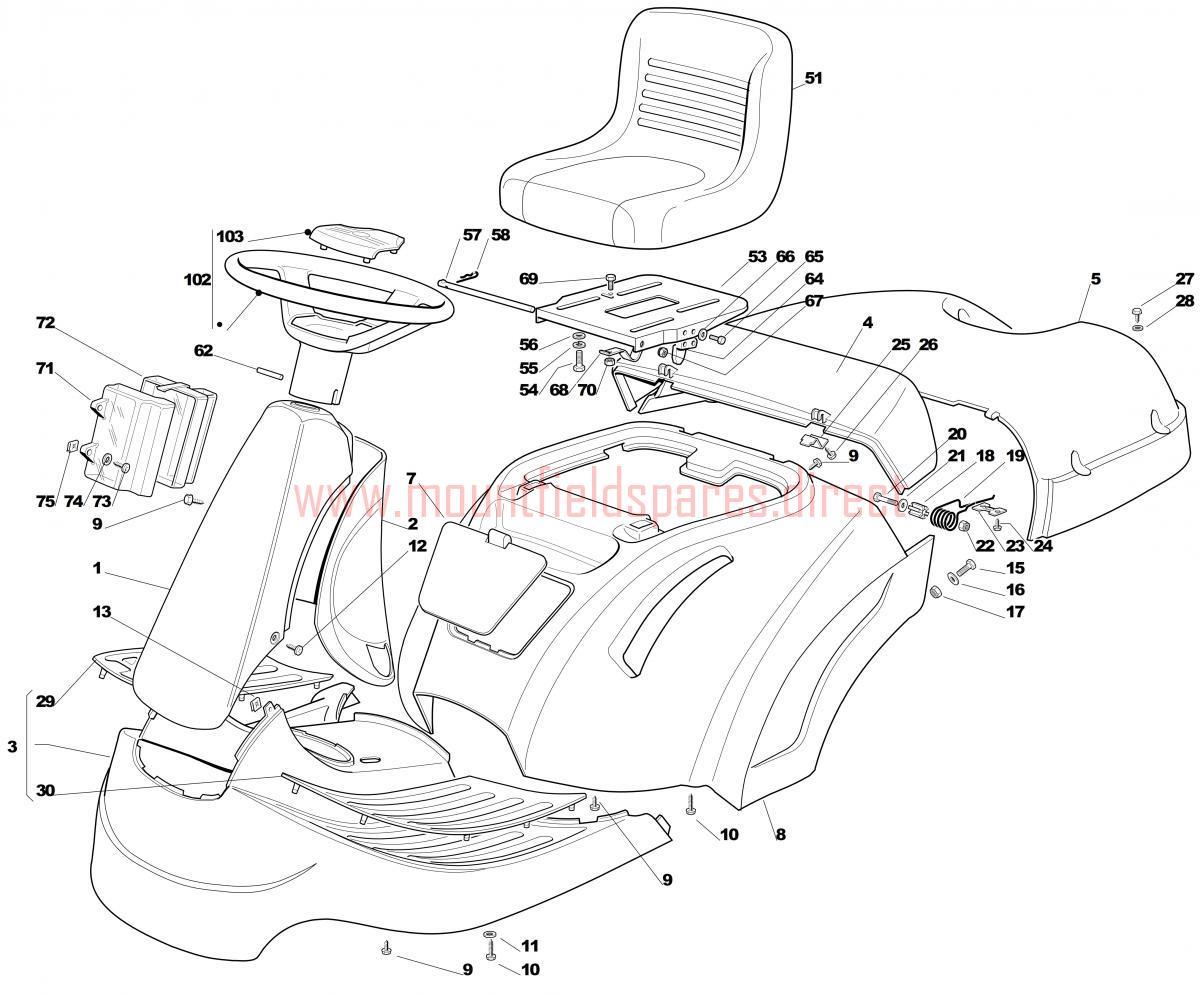

Body assembly details for Mountfield 1228 H (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00184598064/1Front Cover Red (OBSOLETE)N/A
002327600128/0REAR COVER [RED]£24.64 Add to
003327110574/0FOOTBOARDS COVER [DARK RED]£150.18 Add to
004327110302/3FIXED GRASSCATCHER COVER [RED]£41.97 Add to
005327110303/2GRASSCATCHER TOP [RED]£71.33 Add to
007327109501/1FRONT COVER CAP [RED]£11.83 Add to
008384110107/5WHEELS COVER [RED]£181.49 Add to
009112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
010112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
011112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
012112727790/0CHEESE-HEAD SCREW M5 x 10£2.06 Add to
013112437503/0LOCK PLATE£2.06 Add to
015112791200/1SCREW TE M6 x 16£1.79 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018127047003/0BUSH£2.06 Add to
019127430551/1SPRING£3.15 Add to
020112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
021112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023327546001/0SPRING PLATE£1.79 Add to
025327546003/0COVER PLATE£2.06 Add to
027112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
028112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
029127110304/0RIGHT FOOTBOARD COVER [BLACK]£10.23 Add to
030127110305/0LEFT FOOTBOARD COVER [BLACK]£11.04 Add to
051125722471/0SEAT MOUNTFIELD£197.87 Add to
053325547033/1SEAT PLATE£38.44 Add to
054112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
055112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
056112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
057127864052/1SEAT ROD£7.10 Add to
058124487997/0SPRING CLIP D=1.8£2.06 Add to
062112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
064327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
065112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
066112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
067112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
068125430223/2SEAT LIFTING SPRING£6.55 Add to
069112789000/0SCREW TE M5 x 12£2.06 Add to
071125600020/0UPPER GUARD£9.62 Add to
072125600021/1LOWER GUARD£10.25 Add to
073112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
074112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
075112437502/0PLATE£2.06 Add to
102125961216/0STEERING WHEEL [BLACK]£57.52 Add to
103325580501/0CENTRAL STEERING WHEEL CAP£6.69 Add to
