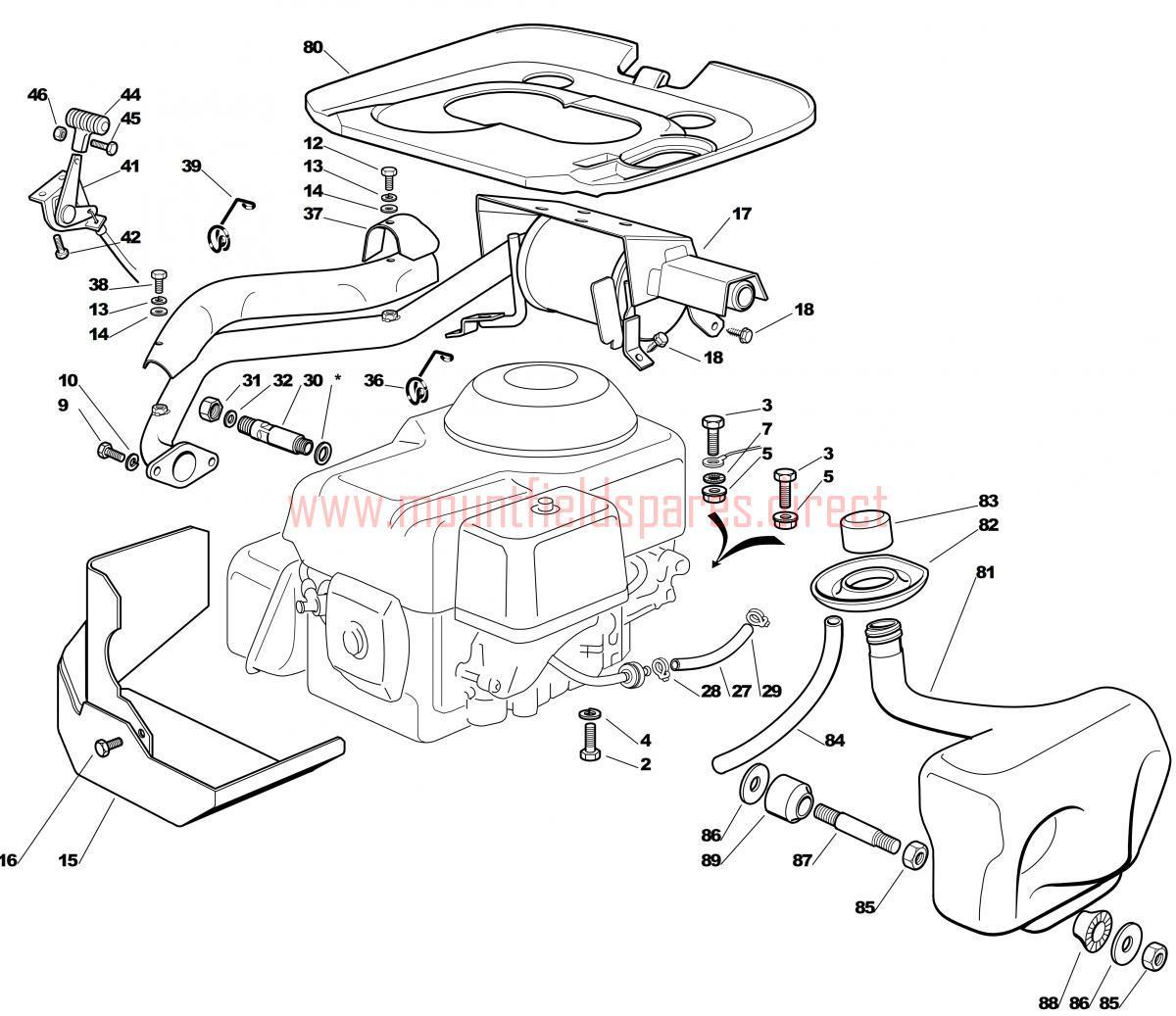

2005b_10 assembly details for Mountfield 1228 H GX (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002112735802/0THREADED SCREW 5/16" x 1" 24UNF£3.00 Add to
003119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
004112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
007112540260/0INNER TOOTHED WASHER M8£2.06 Add to
009112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
011327600063/0RAW EXHAUST LINK TUBE PROTEC. HF1211£9.00 Add to
012112727794/0CHEESE-HEAD SCREW M6 x 12£1.79 Add to
013112582100/0LOCK WASHER M6£2.06 Add to
014112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
015384598055/0ENGINE GUARD£24.12 Add to
016112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
017384750057/0IMASAF MUFFLER ASS.Y GXV390£300.07 Add to
018112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
027325869035/1CONNECTING TUBE£9.82 Add to
029118375053/0JEPPE PIPE CLAMP 800£2.06 Add to
030127598061/2OIL DISCHARGE TUBE£24.95 Add to
031118737849/0OIL DRAIN PLUG£2.47 Add to
032118401001/1OIL DRAIN SEAL£2.06 Add to
036127430557/0SPRING£3.81 Add to
037327600121/0EXHAUST PIPE ADDITION PROTECTION£9.69 Add to
038112790500/0HEX-HEAD SCREW M6 x 10£2.06 Add to
039127430582/0BLADE BRAKE CABLE GUIDE SPRING HONDA£1.60 Add to
041184000251/1THROTTLE CABLE£26.93 Add to
042125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
044125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
045112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
046112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
080327110325/2ENGINE COVER [BLACK]£20.45 Add to
081127733001/3FUEL TANK F72 HONDA HF1211£49.43 Add to
082327600061/2FUEL TANK GUARD£4.10 Add to
083125795000/1FUEL TANK CAP£8.04 Add to
084325869014/1FUEL PIPE L=410£7.92 Add to
085112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
086112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
087127510098/0FUEL TANK FIX PIN£6.55 Add to
088112712000/0INTERNAL TANK RUBBER HF 1211 (HONDA)£3.00 Add to
089112712001/0EXTERNAL TANK RUBBER HF 1211 (HONDA)£3.41 Add to
