2008.0BS

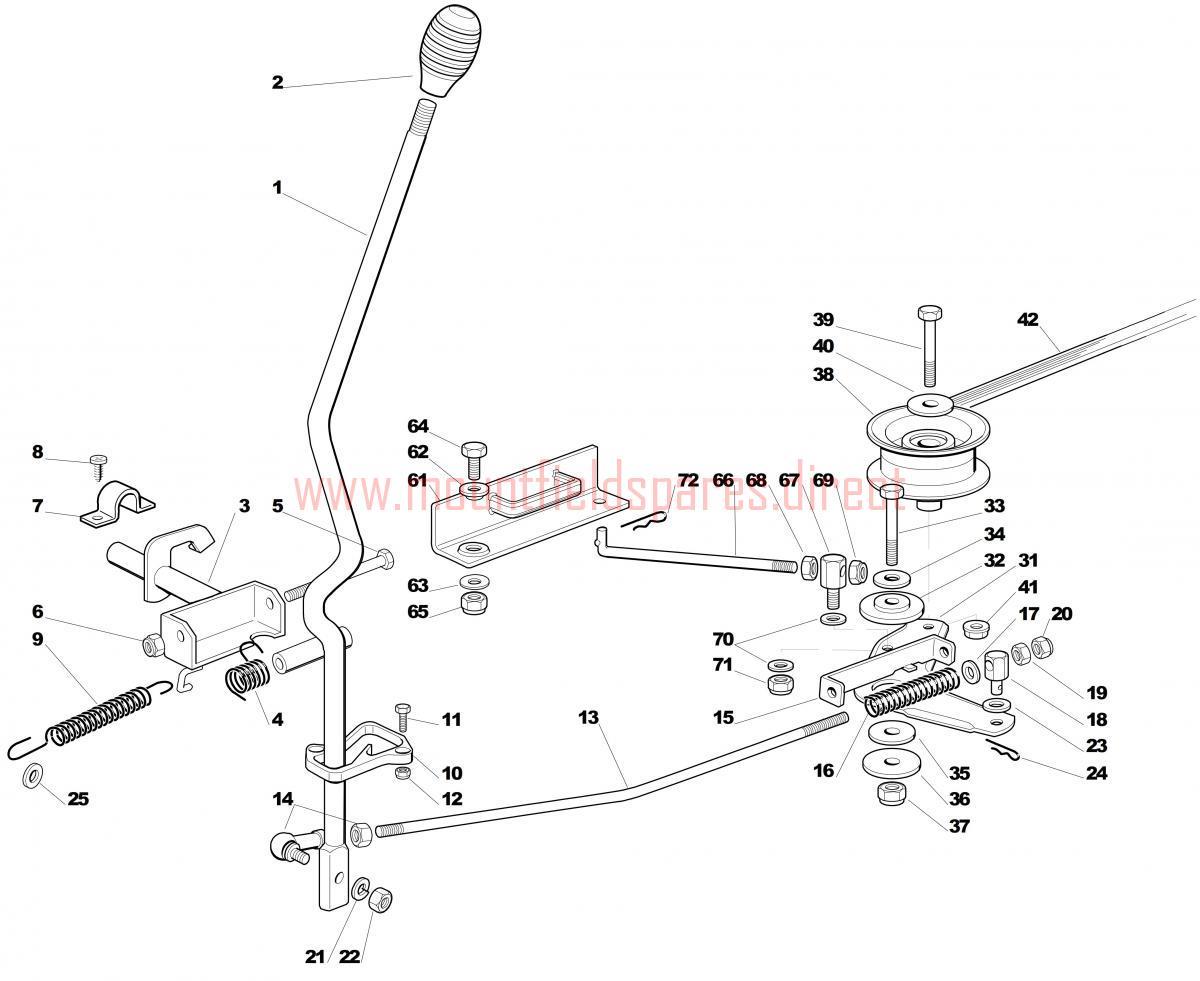

2008.0BS assembly details for Mountfield 1228 H GX (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184317069/1BLADE ENGAGEMENT LEVER£37.95 Add to
002125394510/0CONTROL KNOB [BLACK]£4.35 Add to
003384001007/0BLADE ENGAGE CONTROL AXLE£15.41 Add to
004125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
005112692050/0HEX-HEAD SCREW£1.91 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007325547049/0AXLE FIXING PLATE£3.55 Add to
008112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
009127430571/0CLUTCH RETURN SPRING£5.05 Add to
010127487000/0BLADE LEVER SHOE£3.41 Add to
011112791200/1SCREW TE M6 x 16£1.79 Add to
012112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
013127034078/0BLADE ENGAGE CONTROL ROD£9.14 Add to
014122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
015327772143/0CONTROL BRACKET£7.51 Add to
016127430576/0SPRING£10.23 Add to
017112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
018127510113/0PIN£9.14 Add to
019112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
023325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
024124487997/0SPRING CLIP D=1.8£2.06 Add to
025125670006/0WASHER£2.06 Add to
031384317083/0BLADE PULLEY LEVER£18.51 Add to
032127047000/0BUSH£5.46 Add to
033112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
034112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
035322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
036112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
038127604008/0MOBILE PULLEY£94.31 Add to
039112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
041112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
042135061423/0GDECK DRIVE BELT A49 (GATES)£51.87 Add to
061384220501/0BLADE BRAKE£9.62 Add to
062122041980/0SPACER ROLLER BUSH£2.06 Add to
064112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
065112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
066127034077/0BLADE BRAKE CONTROL ROD£16.62 Add to
070325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
