Electrical Parts

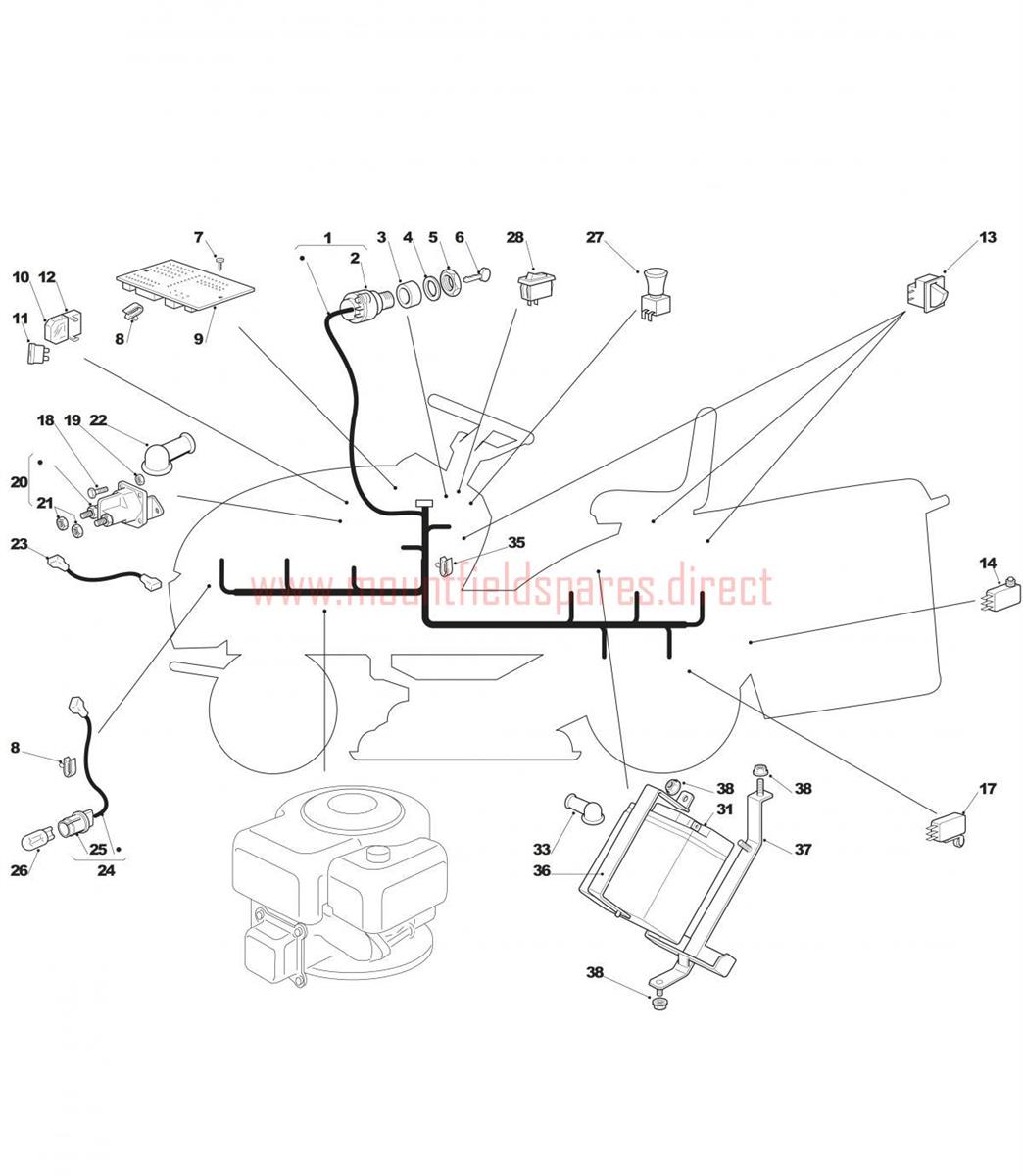

Electrical Parts assembly details for Mountfield 1436 H (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182040153/0WIRING HARNESS NJ92 (B&S-KOH)£231.93 Add to
002118450072/0IGNITION SWITCH£32.19 Add to
003118550136/0PLASTIC RING NUT£2.06 Add to
004118550135/0RING NUT WASHER£2.06 Add to
005118400862/0THREADED RING NUT£4.64 Add to
006118210022/0IGNITION KEY [PAIR]£9.65 Add to
007112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
008133320506/0CABLE CLIP£1.79 Add to
009125722430/1PC BOARD [1 LED] NO RETURN ON THIS ITEM£102.01 Add to
009125722431/0PC BOARD (6 LED)NO RETURN ON THIS ITEM£114.60 Add to
010133215000/0FUSE HOLDER COVER£3.83 Add to
011133340036/0FUSE 25A£2.06 Add to
011133340040/0FUSE 10A£2.47 Add to
012133500007/0FUSE HOLDER£7.64 Add to
013119410622/1MICRO SWITCH N.O.£7.10 Add to
014119410605/1MICRO SWITCH£36.77 Add to
015119410610/0NEUTRAL SWITCH [MECHANICAL]£54.79 Add to
016125065026/0CABLE£9.00 Add to
018112791213/1SCREW M6 X 18£1.74 Add to
019112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
020118736113/0SOLENOID£39.22 Add to
0219743-5121-32LOCK NUT 5/16"£1.79 Add to
022118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
023125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
024182040070/0HEADLIGHTS CABLE£16.46 Add to
024182040073/0HEADLIGHTS CABLE£18.68 Add to
026118459100/0HEADLIGHT BULB£2.47 Add to
027118450068/0CLUTCH SWITCH [YELLOW]£55.89 Add to
028118450084/0HEADLIGHT SWITCH£4.35 Add to
031118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
033118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
036327772099/1BATTERY FIXING CLAMP£5.05 Add to
037382785191/0BATTERY SUPPORT£17.86 Add to
038112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
041382394853/0LCMICRO SWITCH ASSEMBLY£57.52 Add to
042119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
043112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
044112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
045112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
046112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
