Guards And Conveyor

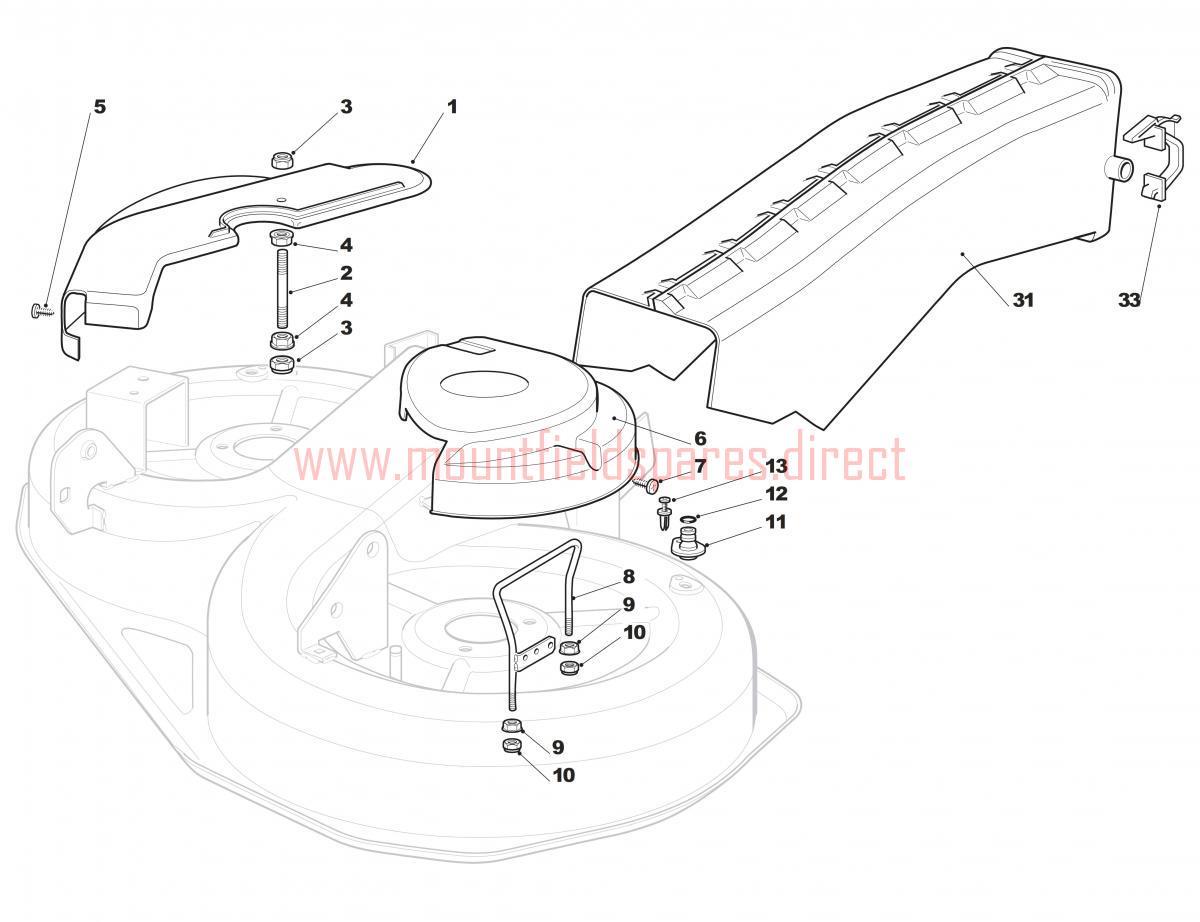

Guards And Conveyor assembly details for Mountfield 1436 M (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060111/0RIGHT BELT GUARD£13.80 Add to
002125580007/1STUD SCREW (OBSOLETE)N/A
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
005112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
006325060112/0LEFT BELT GUARD£13.80 Add to
008382270301/0BELT GUIDE£22.12 Add to
011125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
012119035000/0O RING 10.77 x 2.62£5.46 Add to
013112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
031382108008/1DISCHARGE CHUTE ASSEMBLY£66.43 Add to
033325774373/0RELEASE CLAMP£3.41 Add to
