Brake And Gearbox Controls

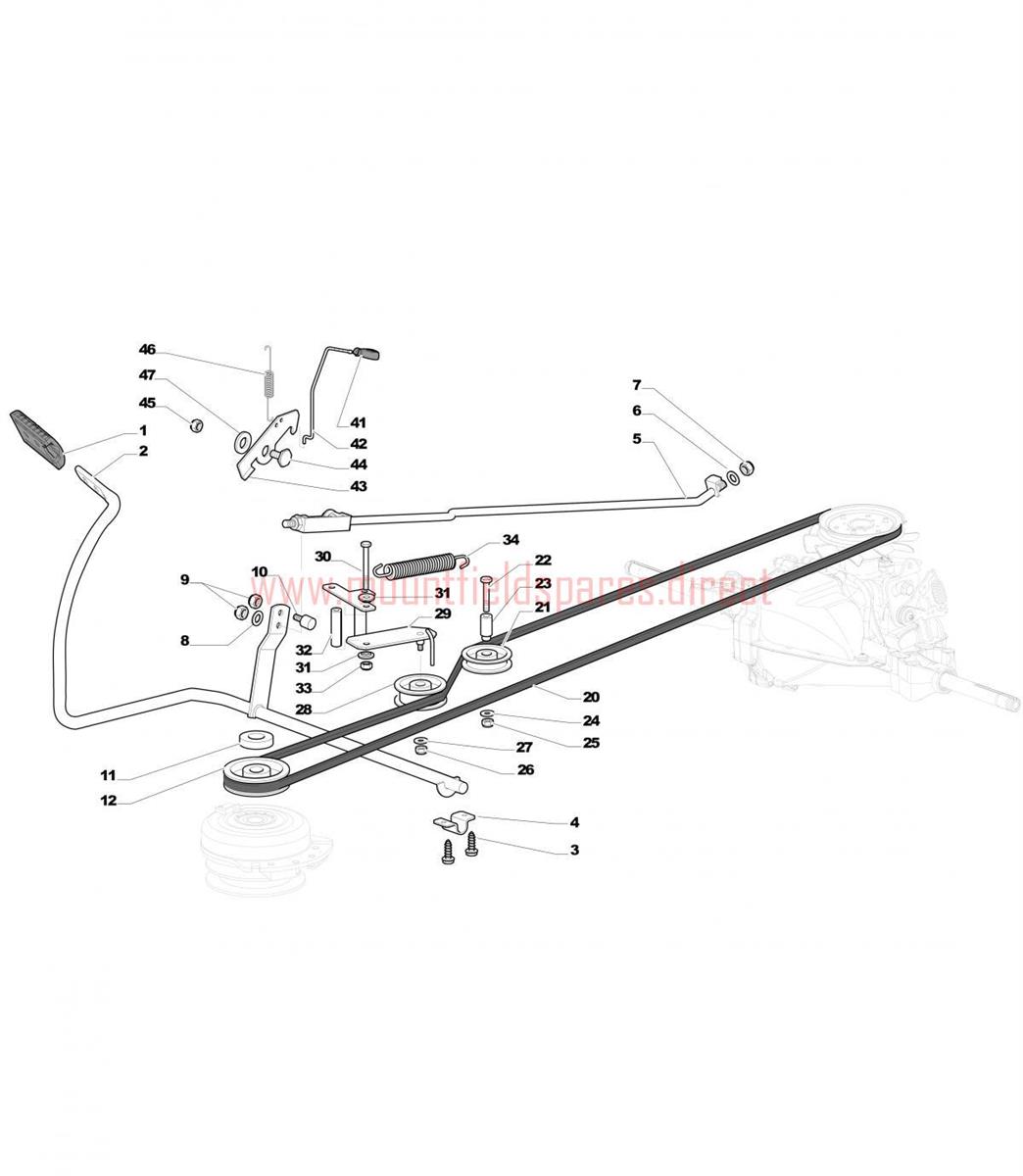

Brake And Gearbox Controls assembly details for Mountfield 1538 H SD (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110409/0BRAKE PEDAL COVER£7.63 Add to
002382000575/0BRAKE CONTROL AXLE ASS.Y SD98 HYDRO£79.98 Add to
003112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
004325547231/0LIFTING DECK AXLE PLATE£5.05 Add to
005382000576/0BRAKE CONTROL ROD ASSEMBLY£26.18 Add to
006112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
007112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
008325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010125510116/0PARKING BRAKE PIN£4.10 Add to
011125160059/0PULLEY SPACER L=25.8£6.69 Add to
012125601577/0PULLEY£46.61 Add to
013112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
020135062003/1TRAPEZOIDAL BELT A95 EPDM£44.84 Add to
021125601555/0PULLEY£30.26 Add to
022112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
023125160083/0SPACER (FROM 1ST SEPT 2013 TO 31ST AUG 2019)£3.09 Add to
024112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
028125601554/0PULLEY£26.18 Add to
029382318235/0Lever (OBSOLETE)N/A
030112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
031125038002/1BUSH£2.06 Add to
032125160027/0SPACER£2.87 Add to
034125430262/0SPRING£6.14 Add to
041125394509/1BRAKE KNOB£3.79 Add to
042125033113/0PARKING BRAKE ROD£3.83 Add to
043325253011/1PARKING BRAKE HOOK£4.10 Add to
044122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
046125430213/0SPRING£2.06 Add to
