Engine GGP 12,5 - 13,5 - 14 - 14,5 - 16 HP

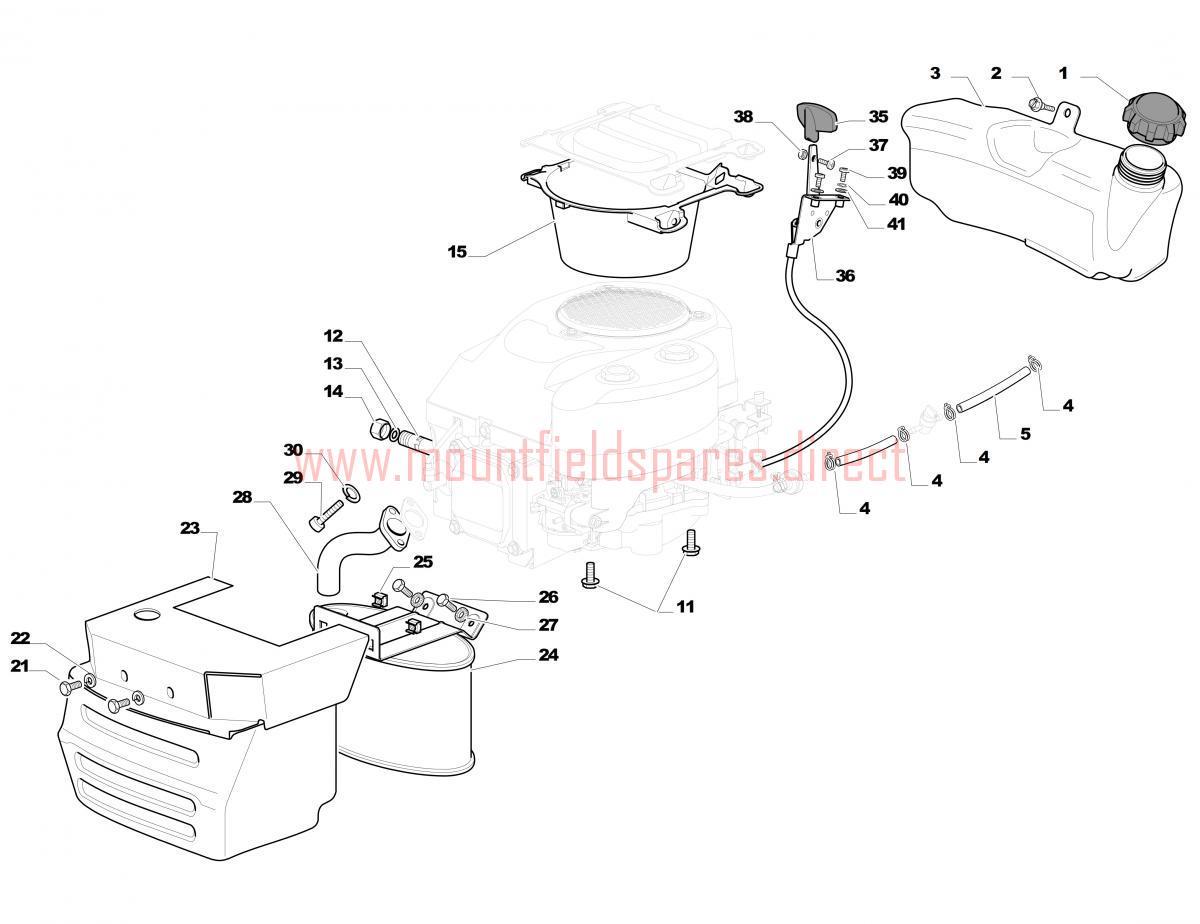

Engine GGP 12,5 - 13,5 - 14 - 14,5 - 16 HP assembly details for Mountfield 1538 H SD (20100406) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125795001/1	FUEL TANK CAP	£8.32	Add to
002	125943010/0	FLANGED SCREW	£2.06	Add to
003	325735126/0	FUEL TANK (TO 31ST AUG 2017)	£44.56	Add to
005	325869057/0	FUEL TUBE L=1000	£20.72	Add to
011	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
012	127598060/0	OIL DRAIN EXTENSION	£8.52	Add to
013	118401001/1	OIL DRAIN SEAL	£2.06	Add to
014	118737849/0	OIL DRAIN PLUG	£2.47	Add to
015	325108044/1	LONG AIR CONVEYOR	£11.46	Add to
021	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
022	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
023	382598045/0	MUFFLER GUARD	£52.06	Add to
024	182750010/0	MUFFLER	£117.75	Add to
025	112360425/0	SQUARE NUT M8	£2.18	Add to
028	118738231/1	EXHAUST PIPE	£22.35	Add to
029	112737450/0	SCREW 5/16 x 3/4 18 THREAD	£3.55	Add to
035	325394531/0	THROTTLE CONTROL KNOB	£1.91	Add to
036	182000215/0	THROTTLE CABLE	£20.31	Add to
037	112726389/0	SCREW M4 X 12 (BLACK GALVANIZED)	£2.06	Add to
038	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
040	112540020/0	EXTERNAL TOOTHED WASHER M4	£2.06	Add to
