Brake And Gearbox Controls

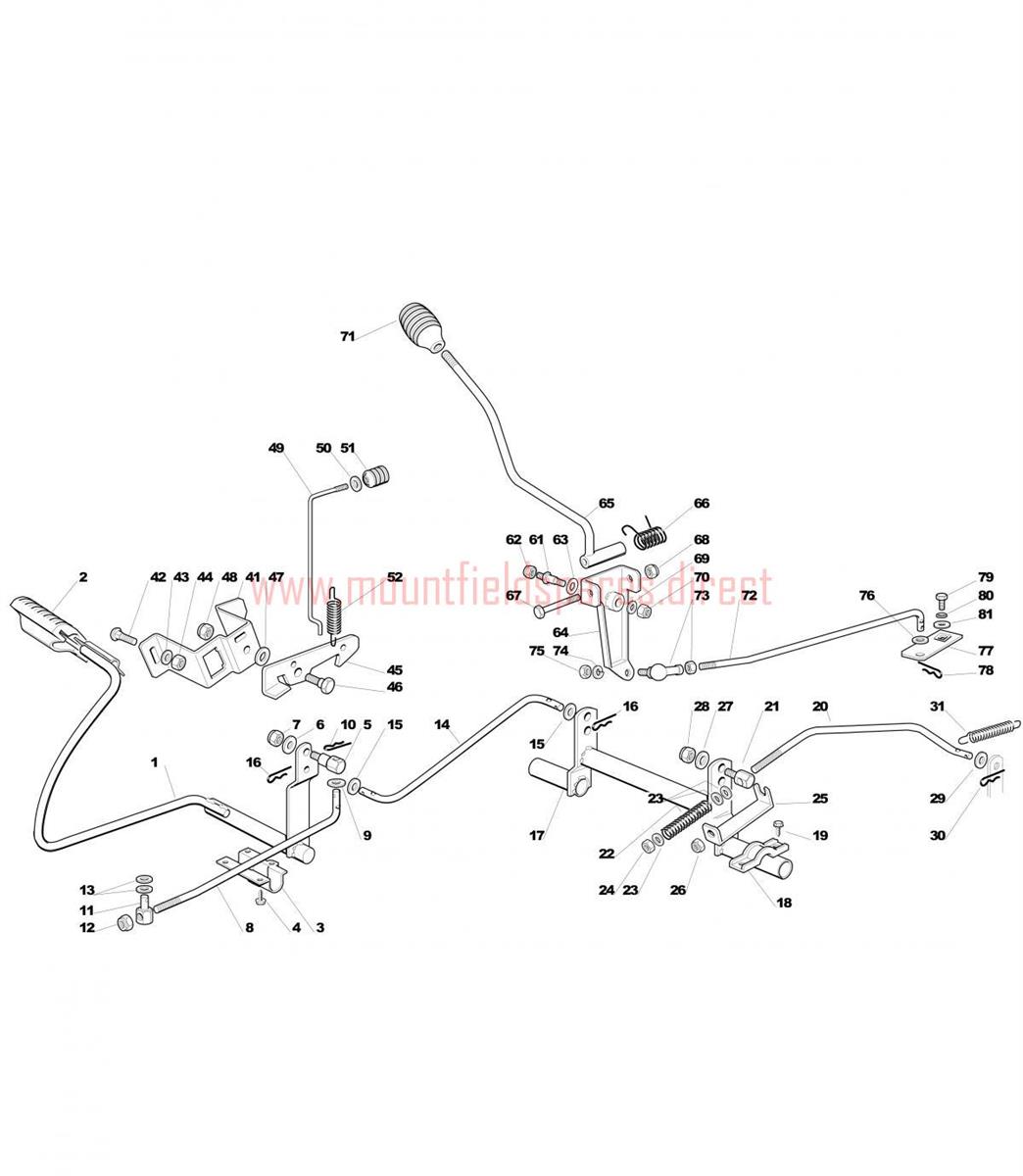

Brake And Gearbox Controls assembly details for Mountfield 1540 M - 1640 M (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500015/1PEDAL ASSEMBLY£42.13 Add to
002125110269/0BRAKE PEDAL COVER£4.10 Add to
00325547081/1PLATE£8.70 Add to
004112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
005125510063/0PIN£5.19 Add to
006112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
00825033039/0BRAKE ROD TC2000 2008£15.18 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
010124487997/0SPRING CLIP D=1.8£2.06 Add to
011125510064/0PIN£7.36 Add to
013325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
01425033038/0BRAKE ROD TC2000 2008£15.74 Add to
017382000549/0CUTTING DECK LIFTING CONTROL AXLE£72.35 Add to
018327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
019112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
02025033040/0BRAKE ROD TC2000 2008£21.50 Add to
021125510062/0PIN£5.32 Add to
022125430236/0BRAKE ROD SPRING£6.79 Add to
023112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
024112295200/0HEXAGON NUT M10£1.79 Add to
025325774275/1CLAMP BRACKET£3.83 Add to
026112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
031122450500/0BRAKE SPRING£2.87 Add to
041325785143/1SUPPORT BRACKET£4.91 Add to
042112815210/0SCREW M6 x 20£2.06 Add to
043112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
044112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
045325253001/0HOOK£4.52 Add to
046122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
049125033047/0BRAKE CONTROL ROD£7.78 Add to
050112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
051125033047/0BRAKE CONTROL ROD£7.78 Add to
052125430213/0SPRING£2.06 Add to
061125510035/0FULCRUM PIN£4.10 Add to
062112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
063322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
064382774206/0CLAMP LEVER£23.54 Add to
065182318179/0SPEED LEVER TC£26.18 Add to
066125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
067112692050/0HEX-HEAD SCREW£1.91 Add to
071125394510/0CONTROL KNOB [BLACK]£4.35 Add to
07225033053/0Rod 2008£22.08 Add to
073122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
074112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
075112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
076112521340/0WASHER M7 7.4 x 14 x 1.6£1.79 Add to
077325318169/0LEVER PLATE£3.15 Add to
079112735520/0"HEX-HEAD SCREW 1/4"" x 5/8"""£2.06 Add to
080112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
081322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
