Transmission

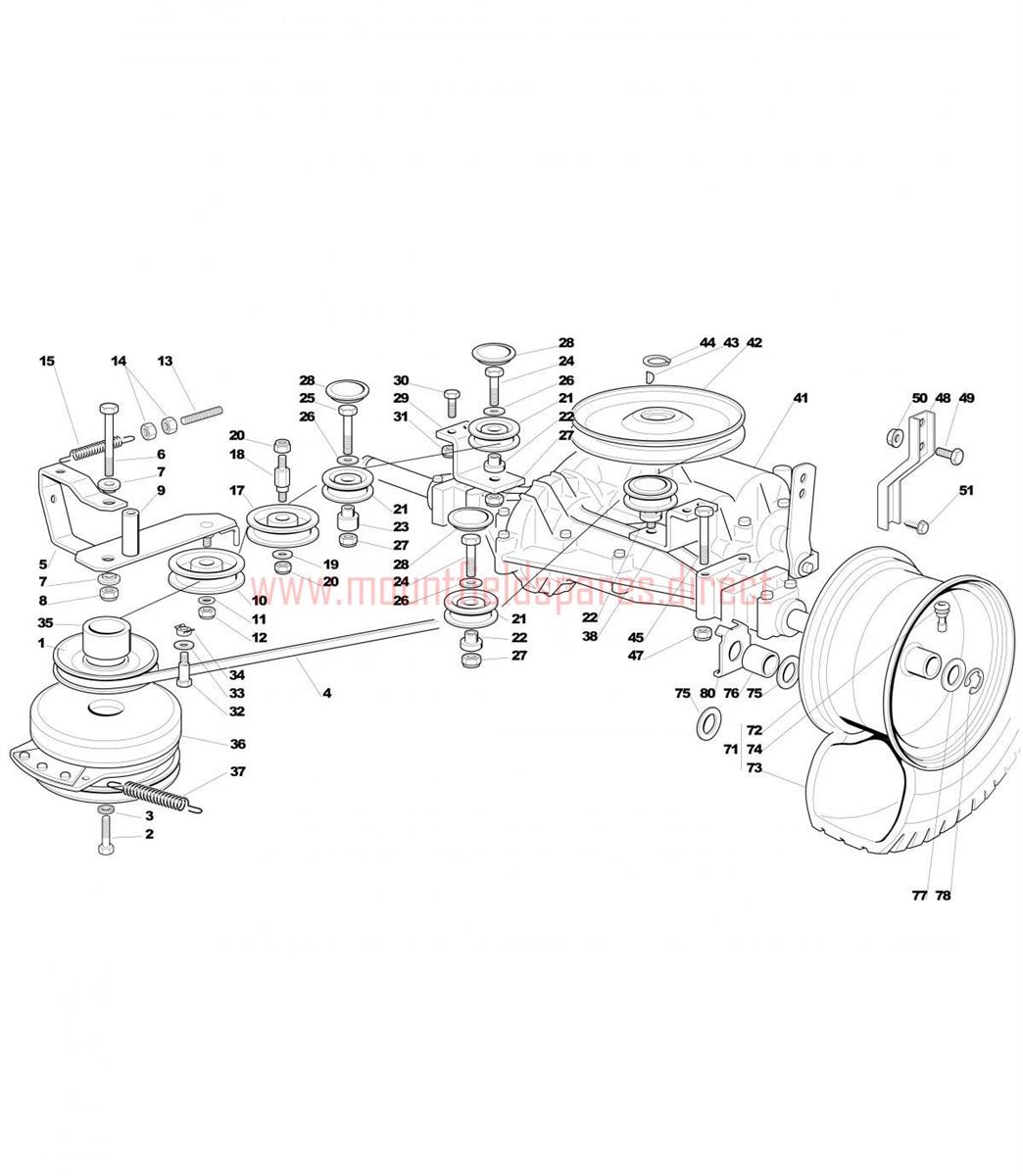

Transmission assembly details for Mountfield 1540 M - 1640 M (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125601567/0MOTOR PULLEY£31.63 Add to
002112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
003112543000/0SAFETY WASHER D=7/16£2.06 Add to
004135062011/0TRANSMISSION BELT A98 ES£69.78 Add to
005382318165/2LEVER£26.62 Add to
006112692000/0SCREW M8 x 75£2.06 Add to
007125038002/1BUSH£2.06 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009125160027/0SPACER£2.87 Add to
010125601554/0PULLEY£26.18 Add to
011112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
013125840010/1TIE ROD£2.32 Add to
014112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
015125430219/1SPRING£3.96 Add to
017125601555/0PULLEY£30.26 Add to
018125510036/2STUD BOLT£11.59 Add to
021325601570/1BELT PULLEY£24.95 Add to
022125160018/1PULLEY SPACER£6.71 Add to
023125160024/2PULLEY SPACER£8.21 Add to
024119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
025112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
028125109521/1COVER£2.06 Add to
029325785125/1SUPPORT£6.27 Add to
030112791213/1SCREW M6 X 18£1.74 Add to
031112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
032125580018/0TRANSMISSION BELT GUIDE PIN£4.52 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
035125160059/0PULLEY SPACER L=25.8£6.69 Add to
036118399062/0ELECTROMAGNETIC CLUTCH (No Returns on this item)£375.02 Add to
037125430210/1BRAKE SPRING£3.00 Add to
041118400942/0TRANSAXLE [DANA 4360-196]£693.01 Add to
042182601503/0MOBILE PULLEY£102.48 Add to
043112139430/0KEY 3/16" x 3/4"£2.06 Add to
044112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
045112691900/0HEX-HEAD SCREW£1.91 Add to
047112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
04825774285/0TRANSAXLE GROUP SUPPORT CLAMP£8.70 Add to
049112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
050112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
051112735150/0SELF-FORMING SCREW M8x16 UNI 8111TT C15£2.06 Add to
071382680022/0WHEEL ASSEMBLY 15" 4.00 X 6 [STARCO]£162.58 Add to
072182000590/1FRONT WHEEL RIM£69.78 Add to
073125590022/0TYRE P 519 VERSION£94.40 Add to
074125950000/0PNEUMATIC VALVE£5.73 Add to
075112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
076125160031/0WHEEL SPACER£3.69 Add to
077125670005/2SPINDLE WASHER£3.89 Add to
078112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
080325670025/0SPACER WASHER TT£4.27 Add to
08382110275/0Rear Wheel Deck (OBSOLETE)N/A
