Cutting Plate (1)

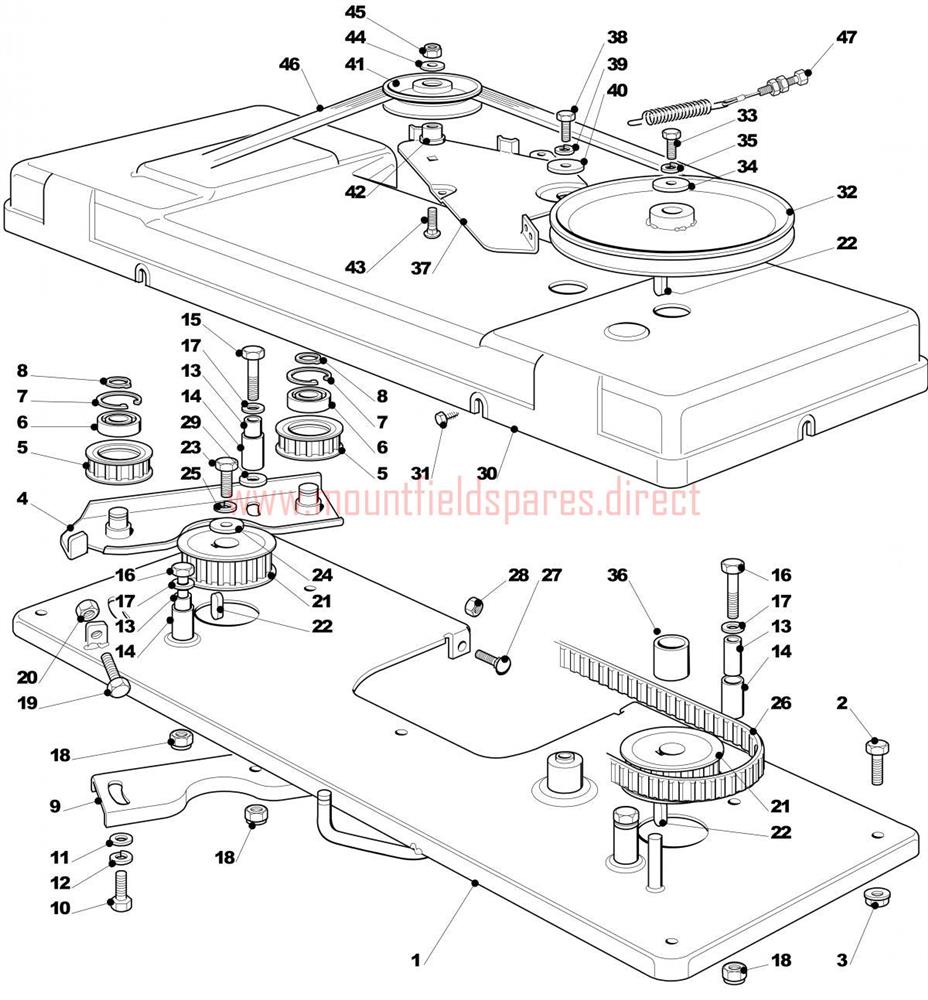

Cutting Plate (1) assembly details for Mountfield 2448 H (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382547031/1BLADE TRANSMISSION PLATE£92.27 Add to
002112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004382785084/2SUPPORT PLATE£24.56 Add to
005125601561/0TOOTHED PULLEY£53.42 Add to
006119216048/0BEARING£18.27 Add to
007112610800/0CIRCLIP D=35£2.06 Add to
008112609200/0CIRCLIP D=15£2.06 Add to
009325650037/1REINFORCEMENT PLATE£8.73 Add to
010112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
013125160003/2SPACER£2.18 Add to
014125038000/0BUSH£2.06 Add to
015112691700/0SCREW M8 x 55£1.91 Add to
016112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021125601562/0PULLEY£72.50 Add to
022112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
024125670007/0FIXING WASHER£2.06 Add to
026135065601/0TOOTHED BELT RPP 8 24DD [122cm]£161.88 Add to
027112815200/0SCREW TTDQ M6X16£2.06 Add to
028112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
029112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
030125060101/2BELT CASE£22.29 Add to
031112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
032125601549/0BLADE SHAFT PULLEY£52.06 Add to
036125160002/1SPACER£3.96 Add to
037325318119/1BLADE BRAKE LEVER£13.23 Add to
040112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
041125601555/0PULLEY£30.26 Add to
042125160007/1SPACER£3.69 Add to
043112818900/0SCREW TTDQ M8 x 35£1.97 Add to
046135062814/0DECK DRIVE BELT B54£42.53 Add to
047182004609/0BLADE ENGAGE CABLE£24.95 Add to
