Drive Controls

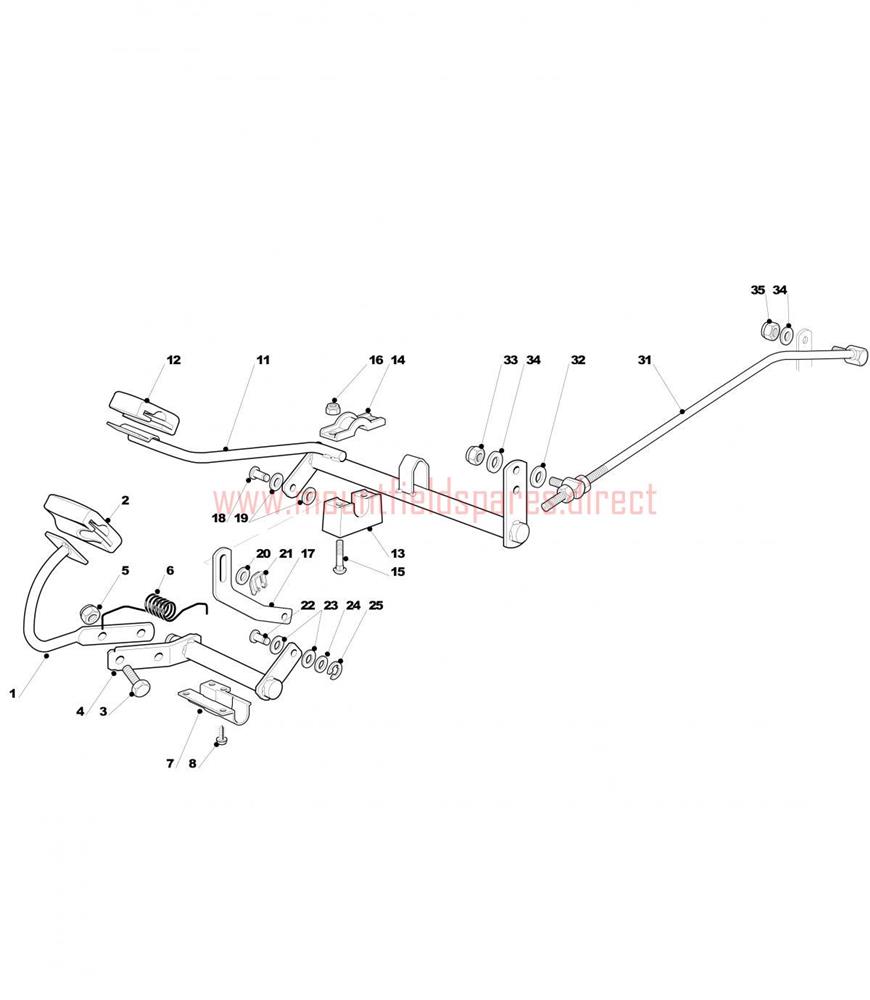

Drive Controls assembly details for Mountfield 2448 H (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500031/0PEDAL ASSY£40.10 Add to
002325110275/0REVERSE PEDAL COVER [BLACK]£4.23 Add to
003112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
004382000559/0AXLE£23.64 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006125430246/0Spring (OBSOLETE)N/A
00725547133/0Plate (OBSOLETE)N/A
008112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
011382000557/0AXLE£62.06 Add to
012325110274/0FRONT PEDAL COVER [BLACK]£6.27 Add to
013325785185/0AXLE SUPPORT BLOCK£4.10 Add to
014327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
015112815245/0SCREW M6 x 45£2.06 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
017325547207/0PLATE£7.92 Add to
01812551085/0PIN BOLT (OBSOLETE)N/A
019325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
020112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
021112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
025112000930/0CIRCLIP D=6£0.79 Add to
031382000572/0ROD£51.08 Add to
032112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
034112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
