Engine B&S 20-22-24 HP

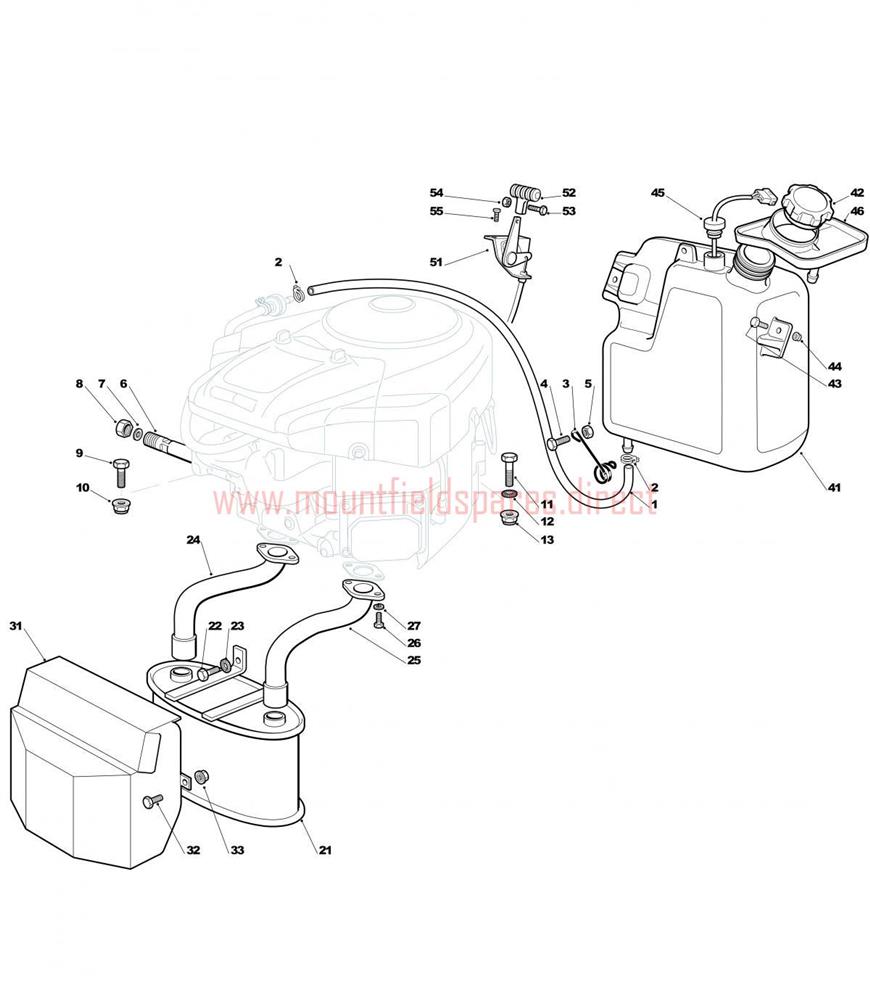

Engine B&S 20-22-24 HP assembly details for Mountfield 2448 H 4WD (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325869016/1CONNECTING TUBE£7.10 Add to
004112790781/0HEX-HEAD SCREW M6 x 12£1.76 Add to
005112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
006125598050/0OIL DISCHARGE TUBE£8.04 Add to
007118737849/0OIL DRAIN PLUG£2.47 Add to
008118401001/1OIL DRAIN SEAL£2.06 Add to
009119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
011112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
012112540260/0INNER TOOTHED WASHER M8£2.06 Add to
021182750009/0MUFFLER£163.80 Add to
022112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
024118738236/0RIGHT EXHAUST PIPE£54.79 Add to
025118738237/0LEFT EXHAUST PIPE£54.79 Add to
026112735530/0SCREW 5/16" x 3/4"£1.91 Add to
027112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
031382598043/1MUFFLER GUARD£84.77 Add to
032112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
041325735125/0PETROL TANK£101.22 Add to
042325795003/0FUEL TANK CAP£13.37 Add to
043112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
044112500092/0RIVET D=7£2.06 Add to
045125290002/0FUEL LEVEL INDICATOR£102.48 Add to
046325600086/0TANK GUARD£2.87 Add to
051182000214/0THROTTLE CABLE£24.95 Add to
05182000204/1Accelerator (OBSOLETE)N/A
052125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
053125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
056112581200/0WASHER M4 4.1 x 7.1 x 0.9£2.06 Add to
058125090005/0CHOKE CONTROL CABLE£19.09 Add to
