Grasscatcher

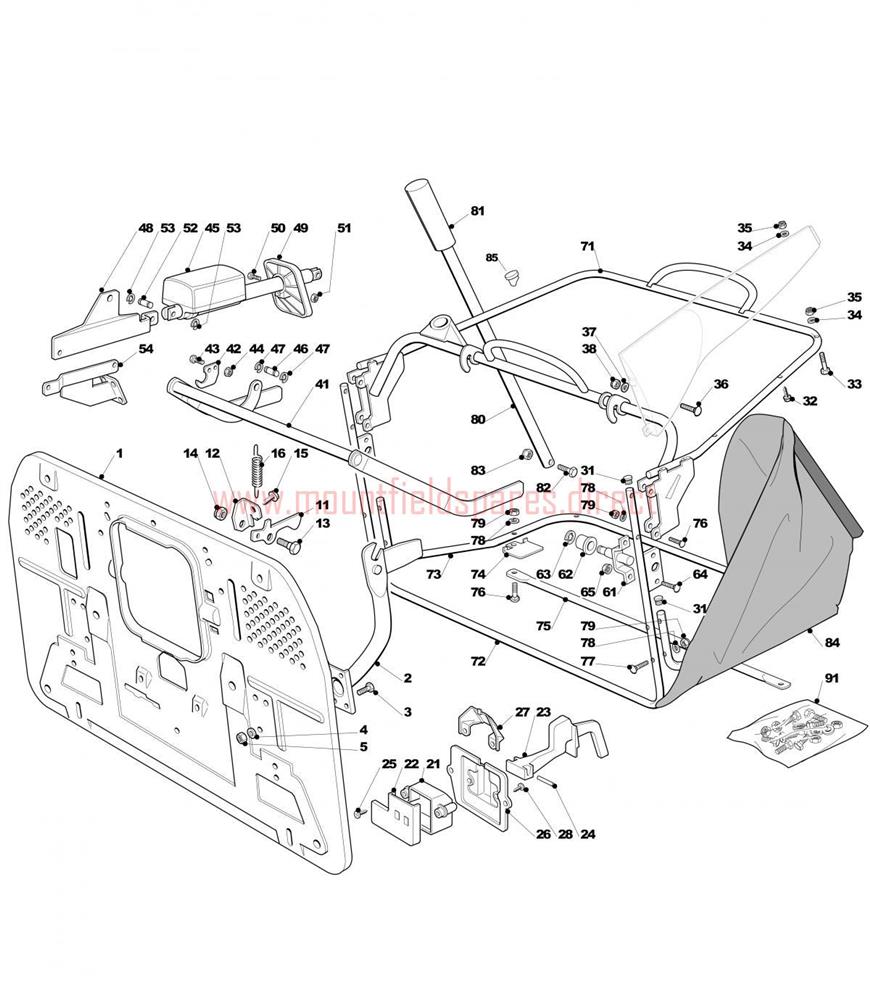

Grasscatcher assembly details for Mountfield 2448 H 4WD (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382547053/0ELECT. LIFTING REAR PLATE TCX£145.22 Add to
002382774245/0GRASSCATCHER SUPPORT BRACKET£60.24 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011325774417/0HOOKING LEVER£7.04 Add to
012325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
013125510080/1CLAMP PIN£2.14 Add to
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
016127430579/0CLUTCH SPRING£3.24 Add to
021125600041/0MICRO PROTECTION COVER£2.32 Add to
022125600042/0MICRO PROTECTION COVER£3.41 Add to
023125318124/0MICRO CONTROL LEVER£2.32 Add to
024112400030/0PIN D=3 L=30£1.91 Add to
025112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
026325785272/1MICRO SWITCH COVER£2.47 Add to
027125600048/0MICRO SWITCH COVER£2.06 Add to
028112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
031118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
032112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
033112689500/0SCREW M6 x 40£2.06 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036112815220/0SCREW M6 x 35£2.06 Add to
041382000507/1GRASSBOX LIFTING AXLE£128.77 Add to
04225774317/0Plate (OBSOLETE)N/A
043112815210/0SCREW M6 x 20£2.06 Add to
045118001000/0ELECTRIC ACTUATOR£944.84 Add to
04625510083/0Pin (OBSOLETE)N/A
047112000955/0CIRCLIP D=8£1.79 Add to
04825785197/0Support (OBSOLETE)N/A
049325600060/0BLACK ACTUATOR PROTECTION HF2£3.15 Add to
050112727795/0CHEESE-HEAD SCREW M5 X 20£1.79 Add to
051112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
05482650209/0Stiffening (OBSOLETE)N/A
06182785147/0Support (OBSOLETE)N/A
062125690001/1BUSH£8.45 Add to
063112000956/0CIRCLIP D=9£1.79 Add to
0649897-0820-16SCREW M8 x 20£2.32 Add to
071382800079/1UPPER GRASSCATCHER FRAME£187.79 Add to
072382800089/1FRONT GRASSCATCHER FRAME£80.68 Add to
073325800029/0FRAME LOWER£81.55 Add to
074325547131/0STOPPING PLATE£4.10 Add to
077112815245/0SCREW M6 x 45£2.06 Add to
080125869029/1TIPPING LEVER£28.43 Add to
081125394508/0KNOB£4.52 Add to
082112674550/0SCREW TE M6 x 30£2.06 Add to
084182105961/0GRASSCATHER BLACK£147.66 Add to
085325120232/0CAP,GRASSCATCHER (OBSOLETE)N/A
091382180038/2CLAMP/TUBE/GRASSCATCHER SCREW OUTFIT£97.03 Add to
