Transmission Ass.Y (1)

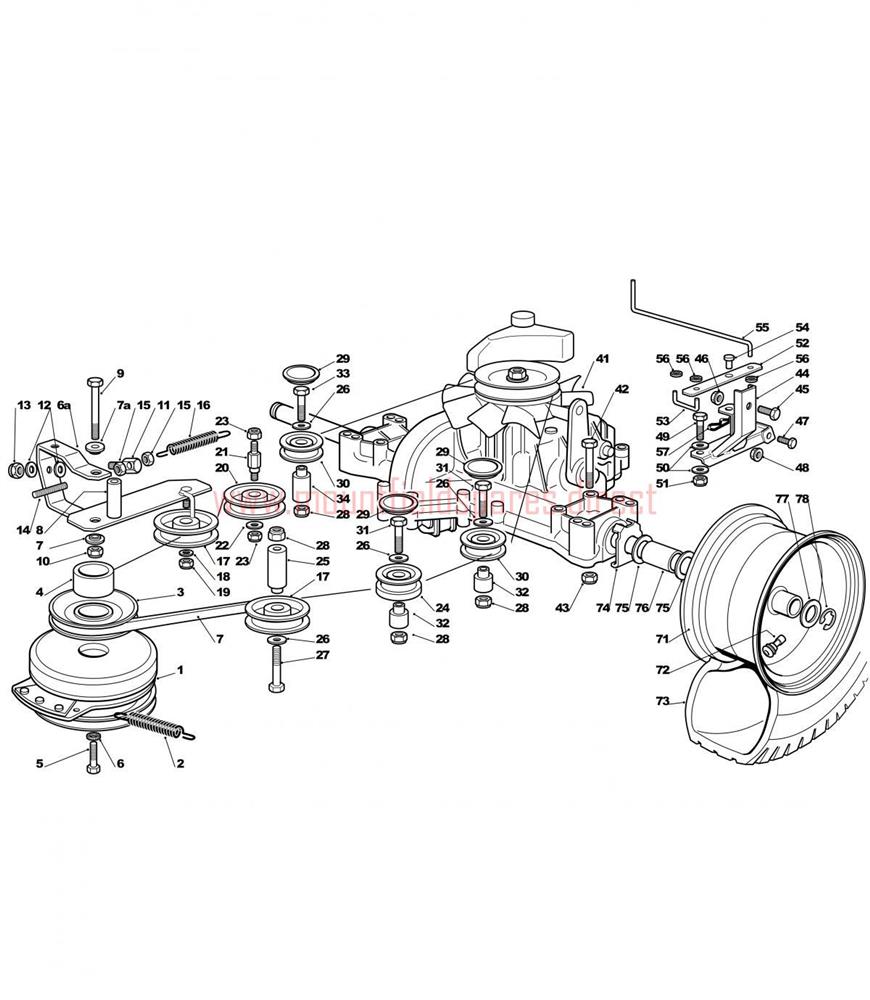

Transmission Ass.Y (1) assembly details for Mountfield 2448 H 4WD (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118399062/0ELECTROMAGNETIC CLUTCH (No Returns on this item)£375.02 Add to
002125430210/1BRAKE SPRING£3.00 Add to
003125601580/0PULLEY£60.24 Add to
004125160059/0PULLEY SPACER L=25.8£6.69 Add to
005112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
006112543000/0SAFETY WASHER D=7/16£2.06 Add to
007135062002/1TRANSMISSION BELT A102£78.10 Add to
008125160054/0SPACER£4.52 Add to
009112692000/0SCREW M8 x 75£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
014125840030/0TIE ROD£9.68 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
016125430219/1SPRING£3.96 Add to
017125601554/0PULLEY£26.18 Add to
018112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
020125601555/0PULLEY£30.26 Add to
021125510036/2STUD BOLT£11.59 Add to
024325601584/1REAR BELT PULLEY£46.54 Add to
025125160060/0SPACER D=22 L=50.5£9.00 Add to
027112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
029125109521/1COVER£2.06 Add to
030325601570/1BELT PULLEY£24.95 Add to
032125160030/2PULLEY SPACER£6.47 Add to
033112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
034125160024/2PULLEY SPACER£8.21 Add to
041118400950/1HYDRO TRANSAXLE K46F£1,424.29 Add to
042112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
043112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
044382785175/0SUPPORT£88.85 Add to
045112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
046112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
047112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
050112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
052325547229/0PLATE£8.66 Add to
053125580031/0BELT GUIDE£4.52 Add to
054127510111/0FULCRUM PIN£2.47 Add to
055125033079/0BRAKE ROD£12.00 Add to
056112604896/0STARLOCK WASHER D=6£2.06 Add to
057124487997/0SPRING CLIP D=1.8£2.06 Add to
06a382318165/2LEVER£26.62 Add to
071182000602/0REAR WHEEL RIM 7.5 x 8£131.92 Add to
072125950000/0PNEUMATIC VALVE£5.73 Add to
073125590017/0TYRE 20 x 10.00-10 [WANDA] P332£131.92 Add to
074325670025/0SPACER WASHER TT£4.27 Add to
075112521410/0WASHER M20 21 x 37 x 3£1.91 Add to
076125160023/0SPACER£7.34 Add to
077125670005/2SPINDLE WASHER£3.89 Add to
078112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
07a125038002/1BUSH£2.06 Add to
