Chassis

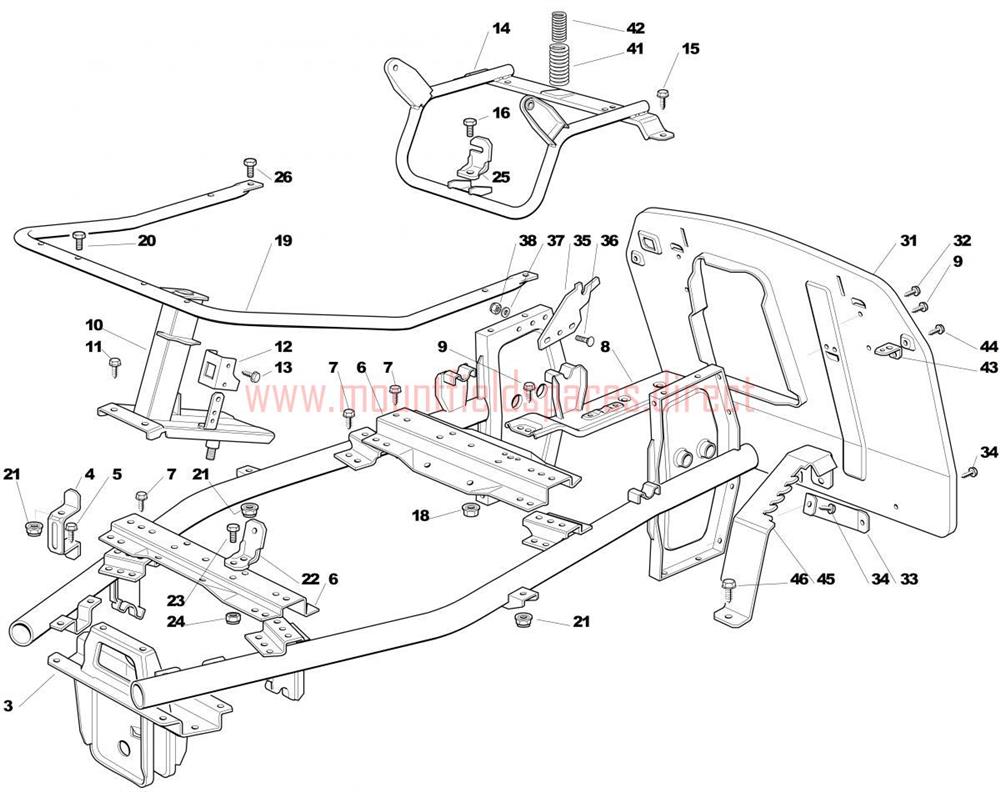

Chassis assembly details for Mountfield 725V-M (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
003384783015/1FORECARRIAGE SUPPORT EL63 2009£44.65 Add to
00427772121/0Clamp (OBSOLETE)N/A
005112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
006327650115/1REINFORCEMENT BRACKET£13.83 Add to
00884650105/0BLACK PAINTED CHASSIS REAR REI 2009 (OBSOLETE)N/A
010384783037/0STEERING COLUMN SUPPORT EL 63£61.09 Add to
012327772095/0SUPPORT BRACKET£2.06 Add to
013112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
014384801117/1SEAT SUPPORT FRAME£50.18 Add to
016112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
019327869057/0FOOTBOARD SUPPORT TUBE 2009£71.07 Add to
020112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
02227773077/0Angle Bracket (OBSOLETE)N/A
023112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
025327753081/0FRONT ANGLE BRACKET£7.19 Add to
026112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
031384545061/0REAR PLATE [BLACK]£71.14 Add to
033327650111/0REAR PLATE REINFORCEMENT£7.13 Add to
035327772131/0GRASSCATCHER FULCRUM CLAMP£7.19 Add to
0369897-0820-16SCREW M8 x 20£2.32 Add to
037112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
038112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
041127430567/0SEAT SPRING£3.69 Add to
042127430569/2SEAT LIFTING SPRING£2.74 Add to
044112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
045327734059/0LIFTING DECK SECTOR£11.33 Add to
